THANK YOU FOR BUYING A RYOBI CORDLESS DRILL-DRIVER.
Your new cordless drill-driver has been engineered and manufactured to Ryobi's high standard for dependability, ease of
operation, and operator safety. Properly cared for, it will give you years of rugged, trouble-free performance.
CAUTION: Carefully read through this entire operator's manual before using your new cordless drill-driver.
Pay close attention to the Rules for Safe Operation, Warnings, and Cautions. If you use your cordless drill-driver properly
and only for what it is intended, you will enjoy years of safe, reliable service.
Thank you again for buying Ryobi tools.
SAVE THIS MANUAL FOR FUTURE REFERENCE

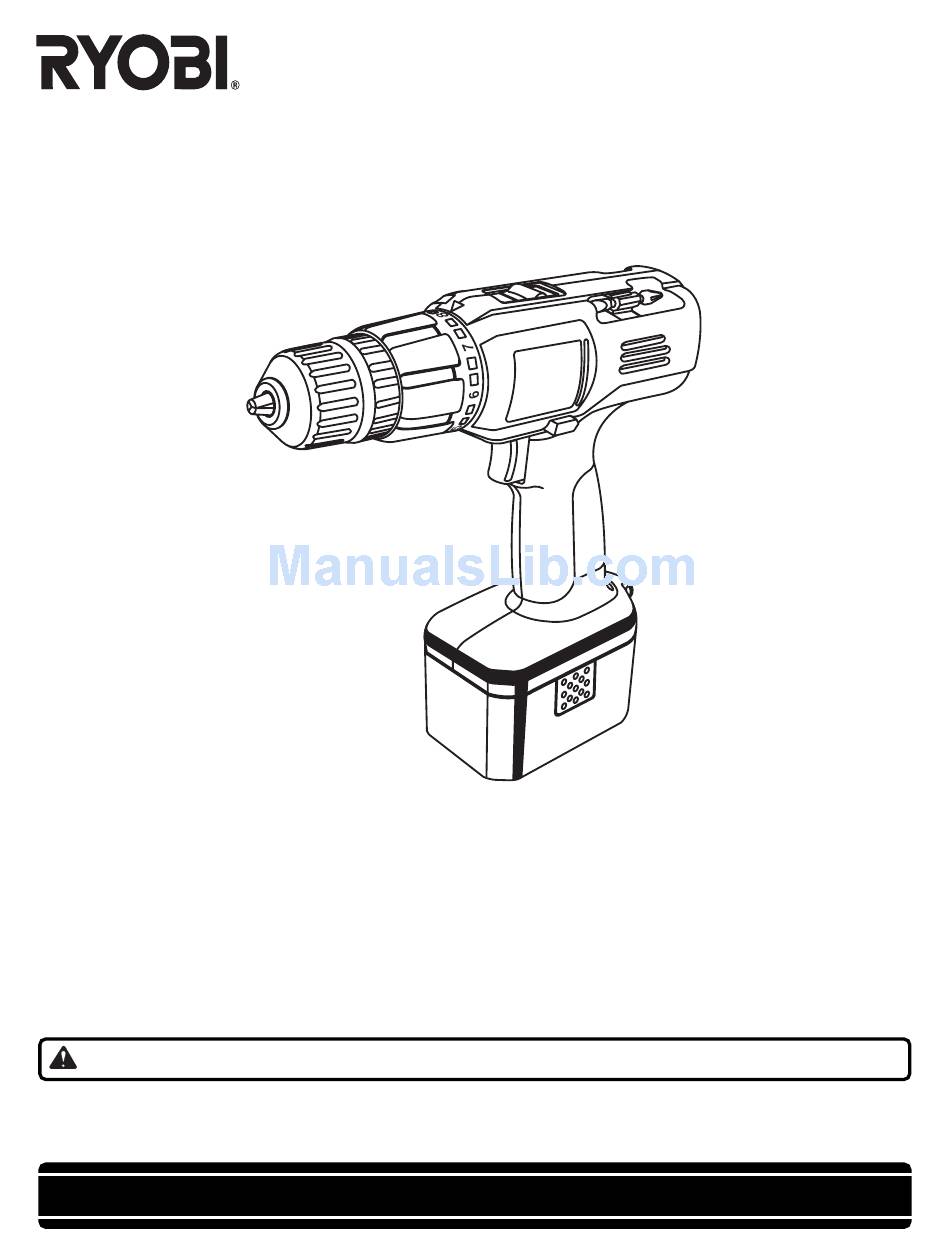

OPERATOR'S MANUAL
CORDLESS DRILL-DRIVER
MODEL NOS. R10510/R10520/R10530
Advertisement
Table of Contents
Related Manuals for Ryobi R10510
Summary of Contents for Ryobi R10510
- Page 1 THANK YOU FOR BUYING A RYOBI CORDLESS DRILL-DRIVER. Your new cordless drill-driver has been engineered and manufactured to Ryobi’s high standard for dependability, ease of operation, and operator safety. Properly cared for, it will give you years of rugged, trouble-free performance.
-
Page 2: Table Of Contents
Disposal Of The Exhausted Battery ... 6 A. Battery Pack Preparation For Recycling ... 6 Operation ...7-12 Maintenance ... 13 Service Information ... 14 CAUTION: Carefully read through this entire manual before using your new drill-driver. TYPICAL APPLICATIONS DRILLING Page 2... -
Page 3: Rules For Safe Operation
Servicing of a tool requires extreme care and knowledge of the system and should be performed only by a qualified service technician. For service we suggest you return the tool to your nearest Ryobi Authorized Service Center for repair. When servicing, use only identical Ryobi replacement parts. -
Page 4: Precautions On Using Your Cordless Tool
19. DO NOT USE TOOL IF SWITCH DOES NOT TURN IT ON AND OFF. Have defective switches replaced by an authorized Ryobi Service Center. 20. DRUGS, ALCOHOL, MEDICATION. Do not operate tool while under the influence of drugs, alcohol, or any medication. -
Page 5: Precautions Regarding The Use Of Charger And Battery
RULES FOR SAFE OPERATION (Continued) 5. To reduce risk of damage to electric plug and cord, pull by the plug rather than the cord when disconnecting charger. 6. Make sure cord is located so that it will not be stepped on, tripped over, or otherwise subjected to damage or stress. -
Page 6: Specifications
Your Drill-Driver" for normal recharging of batteries. If the charger does not charge your battery pack under normal circumstances, return both the battery pack and charger to your nearest Ryobi Authorized Service Center for electri- cal check. BATTERY PACK PREPARATION FOR... -
Page 7: Operation
KNOW YOUR DRILL-DRIVER See Figures 1 and 2. Before attempting to use any tool, familiarize yourself with all operating features and safety requirements. WARNING: Do not allow familiarity with tools to make you careless. Remember that a careless fraction of a second is sufficient to inflict severe injury. - Page 8 Your drill has a two-speed gear train designed for drilling or driving at LO (1) or HI (2) speeds. A slide switch is located on top of your drill to select either LO (1) or HI (2) speed. When using drill in the LO (1) speed range, speed will decrease and unit will have more power and torque.
- Page 9 KEYLESS CHUCK See Figure 7. A keyless chuck has been provided with your drill to allow for easy installation and removal of bits. As the name implies, you can hand tighten or release drill bits in the chuck jaws.
- Page 10 Open or close the chuck jaws to a point where the opening is slightly larger than the bit size you intend to use. Also, raise the front of your drill slightly to keep the bit from falling out of the chuck jaws.
- Page 11 If you are not prepared, this loss of control can result in possible serious injury. When drilling metals, use a light oil on the drill bit to keep it from overheating. The oil will prolong the life of the bit and increase the drilling action.
-
Page 12: Operation
Lock the switch trigger by placing the direction of rotation selector in center position. Insert a 5/16 inch or larger allen wrench (hex key wrench) into the chuck of your drill and tighten the chuck jaws securely. Tap the allen wrench sharply with a mallet in a clockwise direction. -
Page 13: Maintenance
CAUTION: Any repairs requiring disassembly should only be performed by a Ryobi Authorized Service Center. For the repair center nearest you, call 1-800-525-2579. CAUTION: Your drill-driver contains special high temperature batteries to help prevent battery damage when left on charge for extended periods of time. -
Page 14: Service Information
Please refer to the Service Center insert or call 1-800- 525-2579 in the United States or 1-800-265-6778 in Canada for your nearest Ryobi Authorized Service Center. You can also check our web site at www.ryobi.com for a complete list of Authorized Service Centers.
