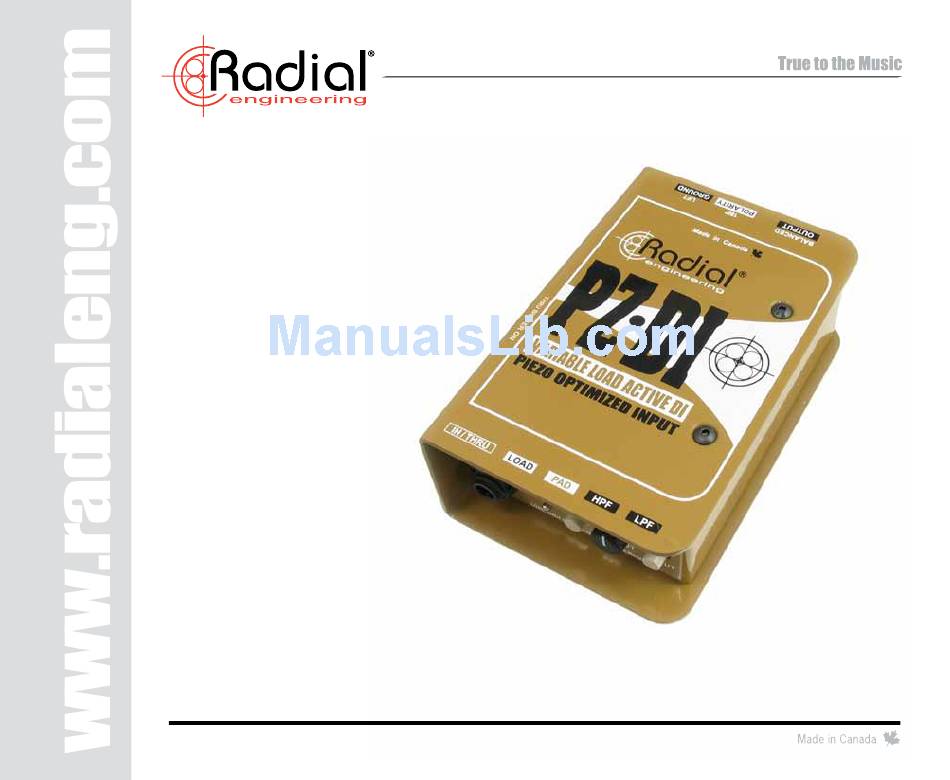

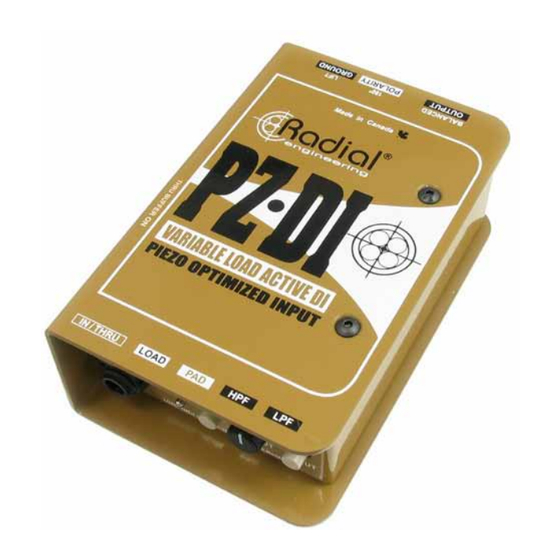

- Page 1 P Z-D I ™ Piezo Optimized Active Direct Box USER GUIDE Radial Engineering Ltd. 1588 Kebet Way, Port Coquitlam BC V3C 5M5 Tel: 604-942-1001 • Fax: 604-942-1010 • Email: info@radialeng.com...
- Page 3 This manual has been written to provide you with a full understanding of how to use the PZ-DI and get the most out of it. Please take a few minutes to read it all the way through. You will find that there are several innovative features built-in that can greatly enhance your enjoyment and the outcome.
- Page 4 INPUT PANEL OUTPUT PANEL INPUT: ¼” hi-Z input used to connect the instrument to the PZ-DI. NO SLIP PAD: Provides electrical and mechanical isolation while keeping the PZ-DI from sliding around on busy stages. THRU: ¼” throughput used to feed an on-stage instrument amplifier.
- Page 5 One of the coolest features on the PZ-DI is the load adjustment switch. This works with the PAD to let you interface a wide variety of pickups or sources to both maximize the frequency response and minimize distortion. There are three settings to choose from.
- Page 6 You should also test at low volumes before turning up. The PZ-DI does not require a battery or power supply to make it work. It uses 48V phantom from the mixing console. All you do is plug it in, turn the phantom power on at the...
-
Page 7: Making Connections
Connect the source instrument to the input using a standard ¼” instrument cable, set the appropriate load and connect the XLR output to your mixer using a standard mic cable. The PZ-DI will convert the high-impedance unbalanced signal to a balanced low impedance signal that will properly interface with the audio system. This will enable you to run long balanced cables without noise or signal loss. - Page 8 Thru on swITCh The PZ-DI features a side access buffer ON ‘set & forget’ switch that allows the thru-put connector to be used two ways.
- Page 9 The -15db Pad As previously mentioned, the -15db PAD is used to reduce the PZ-DI’s input sensitivity. This lowers the signal level while also lowering the impedance to reduce susceptibility to noise. Most instruments do not produce enough output to overload the PZ-DI.
- Page 10 The ground lIfT swITCh One of the unique features that is built into the PZ-DI is the power system. This converts 48V phantom power using a switching supply that increases the signal handling capability while enabling the ground lift switch to be engaged without disconnecting the 48V phantom power.
- Page 11 PZ-dI sPeCIfICaTIons and bloCk dIagram Circuit type: ..........Proprietary analog circuit with low-noise FET op-amp Frequency Response: ......20Hz ~ 20kHz Maximum input level: ........ +10dBu THD+N: ............ 0.02% Dynamic range: ........105dB Equivalent input noise: ......-98dBu Maximum Gain: ........+4.6dB Intermodulation distortion: ......
