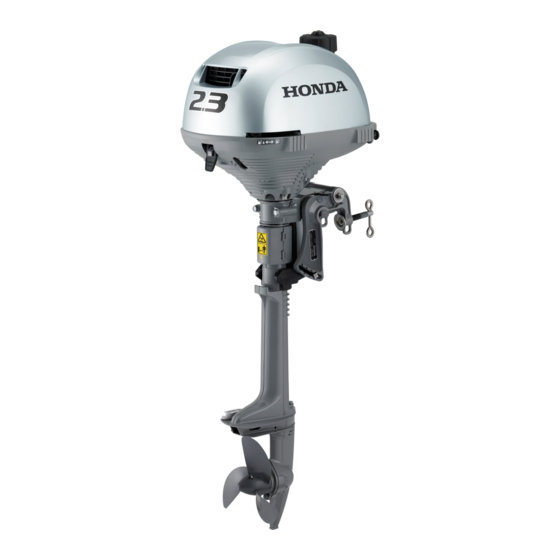

Honda BF2.3D Easy Setup

1
Open the box and inspect the
outboard motor for damage. If you
find damage, contact your retailer.
4
The antiventilation plate
motor should be 0 ~ 2 inches below
the bottom of the boat. Be sure the

engine under case is above the
water level when the boat is fully
loaded. If not, contact your retailer.

M0214
Easy Setup Instructions
This outboard is shipped without oil in the engine.
You must add oil before use.
2
Locate and read the Owner's Manual
fully to understand how to install and
operate the outboard motor correctly.
5

of the Attach the stern bracket to the boat
transom by tightening the clamp
screws
rope from the boat to the hole in the
stern bracket


0 ~ 2 inches
(0 ~ 50 mm)

clockwise. Attach a safety

.

BF2.3D
3
Install the motor on the centerline
of the boat's transom. Refer to the
INSTALLATION section of the
Owner's Manual.

BF2.3D approximate weight: 32 lbs
6

Pull the latch down and remove

the motor cover .


