Chicago Electric 63583 Quick Start Manual

WARNING
WARNING
To prevent fire and
serious injury:
Keep torch and
wire clear of
grounded objects
while welder
plugged in.
HOLD
GUN
CLEAR
BASIC WELDING INSTRUCTIONS AND WELDING TIPS ARE IN MANUAL.
17e
To prevent serious injury, read manual warnings and instructions before use.
Assemble face shield handle and cover handle.
Knob
Install FLUX-CORE
wire spool.
Spring
Insert wire through
both wire liners and
Top Plate
clamp it into feed
mechanism.
Wire Spool
See manual if
changing wire size.
Spindle
Take off nozzle and tip,
plug in welder, turn it on,
and squeeze trigger until
wire comes out.
clockwise
Hold gun clear of workpiece,
then plug in welder and turn it on.
63583
Incrementally tighten
wire feed tension
knob clockwise until
wire will bend from
feed tension at 2"-3".
Unplug welder and
replace nozzle and tip.
Adjust wire feed speed
and MAX/MIN settings
according to chart.

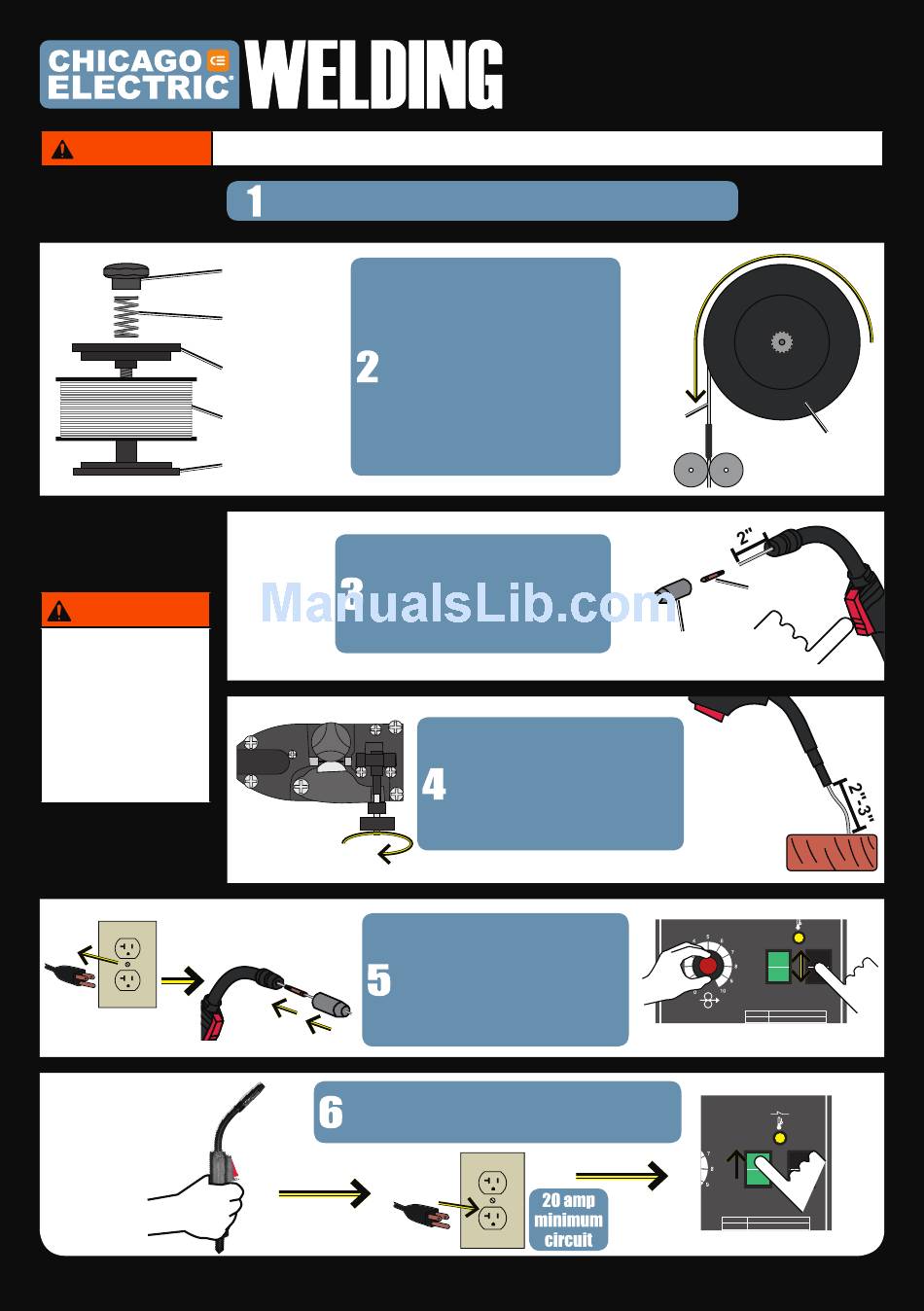

QUICK START GUIDE
welding
wire
Contact
Tip
Nozzle
wood
GUN
block
90 AMP FLUX WIRE WELDER
ITEM 68887
ON
O
OFF
Specifications
WIRE FEED SPEED
Wire 0.030"- 0.035" Flux-Core
Capacity 18 Ga. – 3/16" Steel Plate
Weldable Mild, Low Alloy Steel
Materials
(Not for Aluminum or Stainless Steel)
GUN
GROUND
90 AMP FLUX WIRE WELDER
ITEM 68887
ON
I
O
OFF
Specifications
WIRE FEED SPEED
Wire 0.030"- 0.035" Flux-Core
Capacity 18 Ga. – 3/16" Steel Plate
Weldable Mild, Low Alloy Steel
Materials
(Not for Aluminum or Stainless Steel)
GROUND
120V~
60Hz
20A
Wire
Spool
MIN
I
MAX
120V~
60Hz
20A
MIN
MAX
