Summary of Contents for Rowenta PROACTIVE 032621 - IC7100 - 50/03

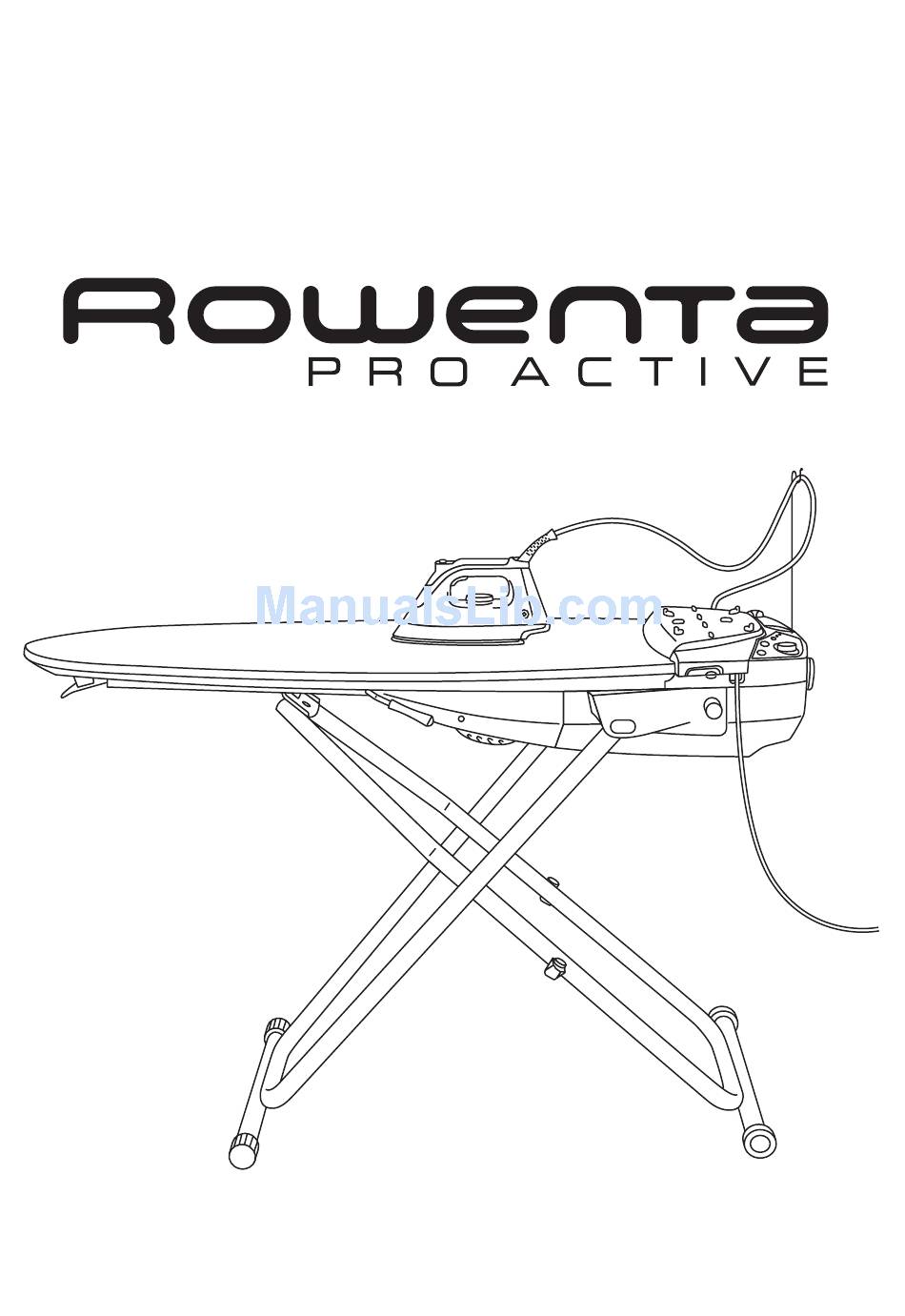

- Page 1 instructions for use 032621 - IC7100 - 50/03...
- Page 2 2. Electric power cord (iron + board) 3. Steam cord 4. Steam cord support 5. Iron rest-plate 6. Removable water tank 7. Iron, power cord and steam cord storage space 8. Control panel 9. Steam generator screw-clamps 10. Wheels (rubber-coated to protect delicate floors) 11.
-
Page 3: Control Panel
Main ironing centre power On/Off (O/I) switch (Controls board + generator) Suction function Inside the board, the suction fan sucks air through the board. d) Steam generator Iron, power cord and steam cord storage compartment catches Boiler (inside compartment) Green "Steam ready" light Red "Water tank... - Page 4 2 • PREPARING YOUR IRONING CENTRE 1. Always place your ironing board on the floor in a horizontal position. (1) 2. Hold down the ironing board feet under one of your own feet. (2) 3. Use your hand to press the semi-automatic opening lever located underneath the front end of the board, then raise the board to the required height (2).
-
Page 5: Operating The Control Panel
Warning : Your ironing centre is equipped with a safety device which cuts the power supply when the iron is stored in its compartment. To switch the iron on again, it is imperative that the iron is removed from its storage com- partment first. - Page 6 5 • SUCTION AND BLOWN-AIR FUNCTIONS Your ironing centre is equipped with a range of professional ironing features. In addition to an automatically heated ironing board surface, your appliance is equipped with fans providing suction and blown-air functions which ensure outstanding ironing quality. a) Suction and blown-air fan control button b) The benefits of the suction and blown-air functions include LOWN...
-
Page 7: Steam Ironing
“steam ready light” on the board's control panel stays continuous. It is perfectly normal for the iron temperature control and boiler lights to switch on and off during use, according to the heating requirements. This does not prevent you from continuing to iron in the usual way. -
Page 8: Vertical Steam Ironing
Recommendations: • Before you begin using the iron, or if you have not used any steam for a few minutes, press the steam control button several times in a row, holding the iron away from your clothes. This will enable any cold water to be removed from the steam-circuit. - Page 9 Empty and rinse the removable water tank (18) b) Iron soleplate We recommend that you clean the soleplate using the Rowenta soleplate cleaning stick available from Rowenta Approved Service Centres (see After Sales Service chart for addresses). The iron's high quality soleplate protects your laundry and makes ironing smoother.
-
Page 10: Ironing Board Cover
Ironing board cover • We recommend ironing the ironing board cover with a very hot iron before you use it for the first time. • Washing instructions: machine-washable at 40°C. • Removing the cover: 1. Loosen the drawstring by pulling the fastener downward (19). - Page 11 1. Completely unscrew the clamping knobs located on each side of the steam generator unit (22). 2. Handle the steam generator unit with care. Slide it gently backwards (23 - 1 ). There are stops to prevent the steam generator from sliding too far. When it reaches the stops, lift the steam generator slightly, holding it firmly with both hands until it has been completely removed (23 - 2 ).
-
Page 12: Transport And Storage
1. Switch off your ironing centre by pressing the main On/Off (O/I) switch. Take care to unplug the appliance from the mains socket. 3. You can now store your iron in its storage compartment, even if the soleplate is still hot (30). -
Page 13: Safety Instructions
Rowenta Approved Service Centre in order to prevent any danger. • If you lose or damage the boiler drain plug, have it replaced at a Rowenta Approved Service Centre. • Always place the iron with the soleplate down on the iron rest-plate, never resting on its heel. - Page 14 Our " PREMIER SERVICE " is available to you by calling the exclusive number below : HELPLINE : 0800 083 1190 – UK Or, consult our web site : www.rowenta.co.uk POSSIBLE CAUSES . The appliance is not switched on.
