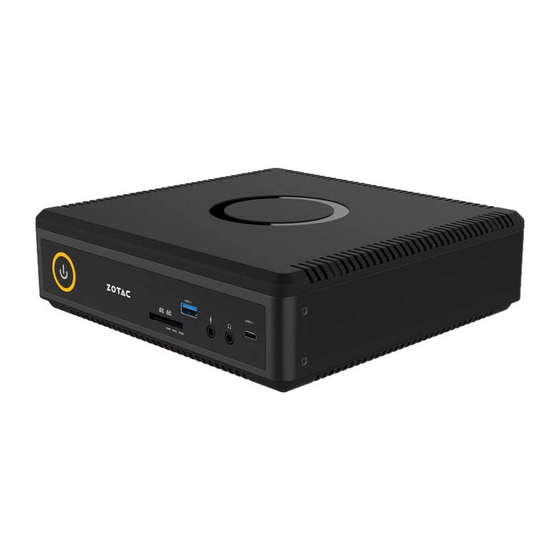

Zotac ZBox EN1070 Quick Start Manual

QUICK START GUIDE

PAC K AG E C O N T E N T S
• 1 x ZOTAC ZBOX
• 1 x AC Adapter
• 1 x Power Cord
• 1 x Warranty Card
• 1 x User Manual
• 1 x Windows Driver DVD
• 1 x USB flash drive with Windows drivers
• 1 x Antenna
C U S TO M I Z I N G YO U R ZOTAC Z B OX
1. Lay the ZOTAC ZBOX on a flat surface with the
rubber feet facing upwards.
2. Locate the two thumb screws and remove.
3. Slide the cover off the ZOTAC ZBOX in the
direction of the arrow.
I N S TA L L I N G M E M O RY M O D U L E S (O P T I O N A L )
1. Locate the SO-DIMM memory slots and insert a
SO-DIMM memory module into the slot at a 45
degree angle.
2. Gently press down on the memory module until
it locks into place by the arms of the memory
slot.
I N S T A L L I N G H A R D D I S K S / S S D
1. Locate the 2.5-inch SATA hard disk/SSD and
the hard disk bracket.
2. Install the hard disk/SSD to the hard disk
bracket.
3. Insert the hard disk bracket into the SATA
slot.
4. Reinstall the thumb screw.
