- Page 1 Alcatel OmniSwitch 9000 High Performance, Converged Enterprise Solutions From the industry leader in triple play...
- Page 2 The award winning Alcatel OmniSwitch 9000 family (OS9000s) offers a range of full-featured, high-performance 10-Gigabit Ethernet switches, including a low-cost entry point chassis. The OS9000s deliver future-proof solutions with advanced security and QoS features for use in small-to-large enterprise cores, in the aggregation layer and in wiring closets with flexible power-over-Ethernet support.

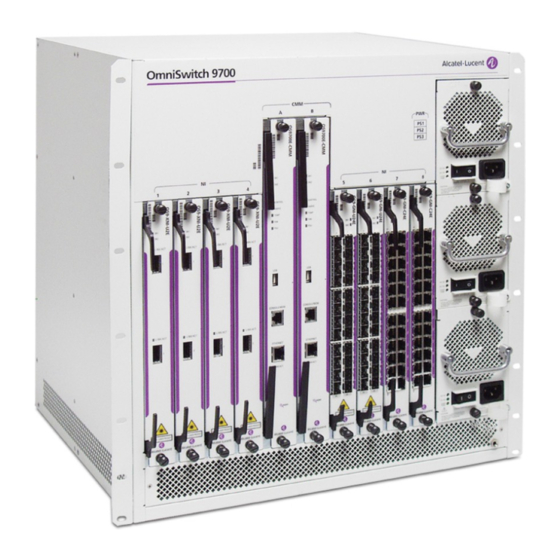

- Page 3 OS9700 and OS9800. By offering the same features and capabilities as the other OmniSwitch 9600 OmniSwitch 9000 switches, more enterprise networks are able to afford a core that supports converged voice, video and data and other applications. The Alcatel OmniSwitch 9600 is a five-slot chassis supporting one chassis management module (CMM) and four network interface (NI) modules.
-
Page 4: Aggregation Layer
• Enhanced forwarding - improves network response time through hardware-based forwarding at first packet and elimination of CPU solicitation for ACL/QoS demands • High-availability in network designs with dual-aggregation switch through extensive support of L2/L3 protocols for smart use of network topology redundancy... - Page 5 For single CMM configurations, network resiliency is achieved through switch redundancy, network path redundancy, and the L2/L3 protocols for smart use of the switch and path redundancy. In this configuration, the OS9600 has the best price / performance ratios.
- Page 6 • Access control lists (ACLs) • Restricts user ports from sending control traffic (BPDU, RIP, OSPF, BGP) • Prevents IP source address spoofing • Authenticated switch access • Encryption for secure management (SSHv2 / HTTPs / SNMPv3) • Denial of service protection...
- Page 7 For example, OneTouch QoS, a feature of the Alcatel policy management software, allows network managers to quickly assign QoS priorities to network traffic based on the characteristics of different applications. With “one-click,” every Alcatel switch in the network is automatically configured.
-
Page 8: Ipv6 Support
QoS/ACLs and tunneling. First Green switch in the market – RoHS compliancy With the OmniSwitch 9000 family, Alcatel will be the first switch manufacturer to be in compliance with the new European Community’s directive - Restriction on Hazardous Substances in Electrical and Electronic Equipment (RoHS) –... -
Page 9: Ordering Information
Alcatel OmniSwitch 9000 Ordering information Bundles OS9600-CB-A OS9600 base bundle, to include OS9600 chassis, fan tray, 1 CMM, 1 PSU OS9600-RCB-A OS9600 redundant bundle, to include OS9600 chassis, fan tray, 1 CMM, 2 PSUs OS9700-CB-A OS9700 base bundle, to include OS9700 chassis, fan tray, 1 CMM, 2 PSUs... -
Page 10: Technical Specifications
Technical Specifications Layer-2 Switching VLAN Spanning Tree Link aggregation Auto-negotiation Traffic control DHCP Layer-3 Routing (IPv4) IP Routing Multicast Network Protocol Resilience Layer-3 Routing (IPv6) IP Routing Multicast Network Protocol Resilience Check with Alcatel for availability > 1 0 A L C AT E L Port based, IEEE 802.1Q VLANs Advanced VLAN Classification: MAC, protocol, IP subnet IEEE 802.1ad VLAN Stacking (aka QinQ) - Page 11 Alcatel OmniSwitch 9000 Layer-3 Routing (IPX) IP Routing Static routing RIP/SAP Convergence Priority queues Eight hardware based queues per port Traffic prioritization Flow-based QoS in hardware (L1-L4) Internal & external (a.k.a., remarking) prioritization Traffic redirection Policy-based routing Server load balancing (including health monitoring of servers)
-
Page 12: Service And Support
Service and support Default warranty Support Basic Support Plus Check with Alcatel for availability > 1 2 A L C AT E L 1 year on hardware, 90 days on software One year - 7x24 phone. Includes e-service web access, software releases and repair and return of hardware to be completed in 10 business days from receipt. -
Page 13: Specifications
Specifications Network Interface All modules are hot swappable and can be used in any available NIs slot 24--port 1000BaseX (SFP) 24-port 10/100/1000 BaseT (RJ45) 24-port PoE 10/100/1000BaseT (RJ45) 2-port 10GBaseX (XFP) 6-port 10GBaseX (XFP) Dimensions OmniSwitch 9600 • Height: 9.6 in (24.4 cm – 5.5 RU) •... - Page 14 OSPF • RFC 1253/1850/2328 OSPF v2 & MIB • RFC 1765 OSPF Database Overflow • RFC 3623 OSPF Graceful Restart • RFC 2154 OSPF MD5 Signature • RFC 1587/3101 OSPF NSSA Option • RFC 2370/3630 OSPF Opaque LSA • RFC 1058 RIP v1 •...
-
Page 15: Safety Agency Certifications
Emissions / Agency Approvals • CISPR 22 Class A • FCC Part 15 Class A • EN 55022 Class A • ICES-003 Class A • AS/NZS 3548 / EN55022 Class A • EN 61000-3-2, EN 61000-3-3 • VCCI Class A Immunity •... - Page 16 www.alcatel.com/enterprise Alcatel Alcatel 26801 West Agoura Road 26801 West Agoura Road Calabasas, CA 91301 USA Calabasas, CA 91301 USA Contact Center Contact Center (800) 995-2612 US/Canada (800) 995-2612 US/Canada (818) 880-3500 Outside US (818) 880-3500 Outside US www.alcatel.com/enterprise www.alcatel.com/enterprise Product specifications contained in this document are subject to change without notice. Contact your local Alcatel representative for the most current information.
