Quick Start Guide
EPX Panel Heater with RX24TI Programmer
This guide is for quick reference only. Refer to EPX/RX24TI installation and operating instructions for further information.

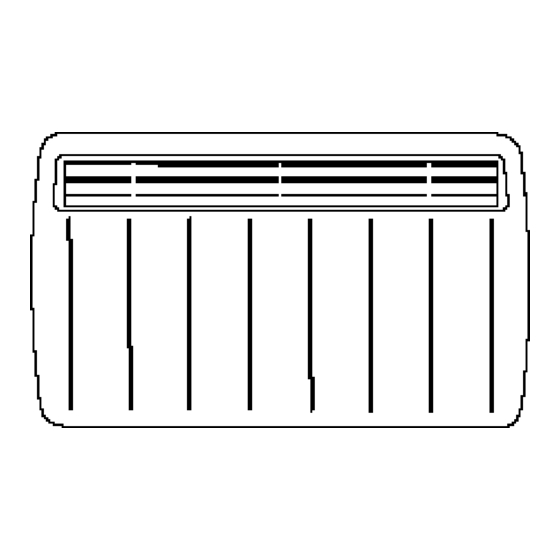

EPX Panel Heater fitted with RX24TI Programmer
Heater controls
A
D C
(A)
Thermostat: slide the thermostat control to the appropri-
ate position to give comfort level required.
Heater will automatically switch on and off as necessary to
maintain the selected temperature. A higher setting will
make the room warmer.
(B)
Power switch
(C)
Power ON indicator: Illuminates when power switch is
ON
(D)
Heat indicator: Illuminates when the heater is delivering
heat
RX24TI programmer set up
To program the RX24TI for the first time, it will need to be plugged
into the heater to charge up.
When operated in the heater, the display is lit (blue); this turns off
after a short period of inactivity.
When removed from the heater for programming, the display is not
lit.
MODE selection
There are three different operating
modes. Press MODE to cycle
through these:
MAN OFF heating is permanently
off
MAN ON heating is permanently
on (cycles on thermostat)
AUTO operates the heating in
conjunction with the program
Glen Dimplex UK Ltd. Millbrook House, Hedge End, Southampton, SO30 2DF. For further assistance please contact Dimplex customer services on 0870 727 0101
B
EPX panel heaters are fitted with an integral
thermostat and On/Off switch.
With the addition of an RX24TI timer, the
heater can be programmed to automatically
switch on/off at different times of the day.
The RX24TI is fitted by removing the plastic
cover adjacent to the thermostat and simply
slotting into place.
The RX24TI may be removed from the for
easy programming if required.
Set the Time
Press the PROG key once to set
the time.
The
symbol appears on the
screen.
Set the hours using the
keys. Press ENTER and repeat
the process to set the minutes.
When complete, press ENTER
again. The time is now set.
Set the daily program
Up to 4 program (on/off) periods
can be set for the 24 hour period.
Press PROG twice.
P1 ON is displayed, denoting the
first ON time setting.
Set the hours/minutes for the first
On period using the
but-
tons, in the same way as for set-
ting time (above).
Note, the minutes are set in 10
minute blocks.
Once the P1 ON time is set, press ENTER and set the P1 OFF time
(i.e. the time at which the heater should switch off).
Repeat the procedure for P2 - P4 for as many on/off periods as
required.
If less than 4 on/off periods are needed, simply leave the unneeded
periods in their default setting.
After programming P4, the display automatically returns to the
default screen.
Example time program:
The example below explains how 4 time program periods can be
set up to allow the heater to operate at times when the room is
occupied.
P1 ON: 06:00
P2 ON: 11:00
P1 OFF: 07:30 P2 OFF: 12:00 P3 OFF: 21:00
Program Advance
When in AUTO mode, to "Advance" the program to the next time
block, press the
button for 2 seconds.
"ADVANCE" appears on the display.
Press and hold
for 2 seconds to cancel the program advance.
Issue 1 D1223-0106
P3 ON: 16:00
P4 ON: 00:00 (unused)
P4 OFF: 00:00 (unused)
