Visonic CLIP PG2 Installation Instructions Manual

CLIP PG2
PowerG Wireless, Curtain, PIR Motion Detector
1. INTRODUCTION
The CLIP PG2 is a small and elegant wireless curtain-pattern PIR detector for indoor use and designed for easy installation.
Modern technology is used to include 3 different detectors in a single case, each programmable for optimized performance at the specific mounting
location. This results in better catch performance and virtually no false alarms.
The superiority in performance of this detector is achieved by applying an improved version of the patented True Motion Recognition™ (TMR)
algorithm. This advanced motion analysis method allows the CLIP PG2 to distinguish between the true motion of the human body and any other
disturbances that cause false alarms.
The CLIP PG2 includes the following features:
For use with all PowerMaster® control panels (version 13 and higher).
l
2-way PowerG protocol communication
l
Very low current consumption
l
Microprocessor-controlled temperature compensation
l
Sealed chamber protects the optical system
l
Front cover tamper switch
l
Optional back tamper switch
l
White light protection
l
Elegantly styled, sturdy case
l
RF Link quality indication
l
Detailed coverage patterns and mounting alternatives are illustrated in
Note: The pet immunity feature was not evaluated by UL.

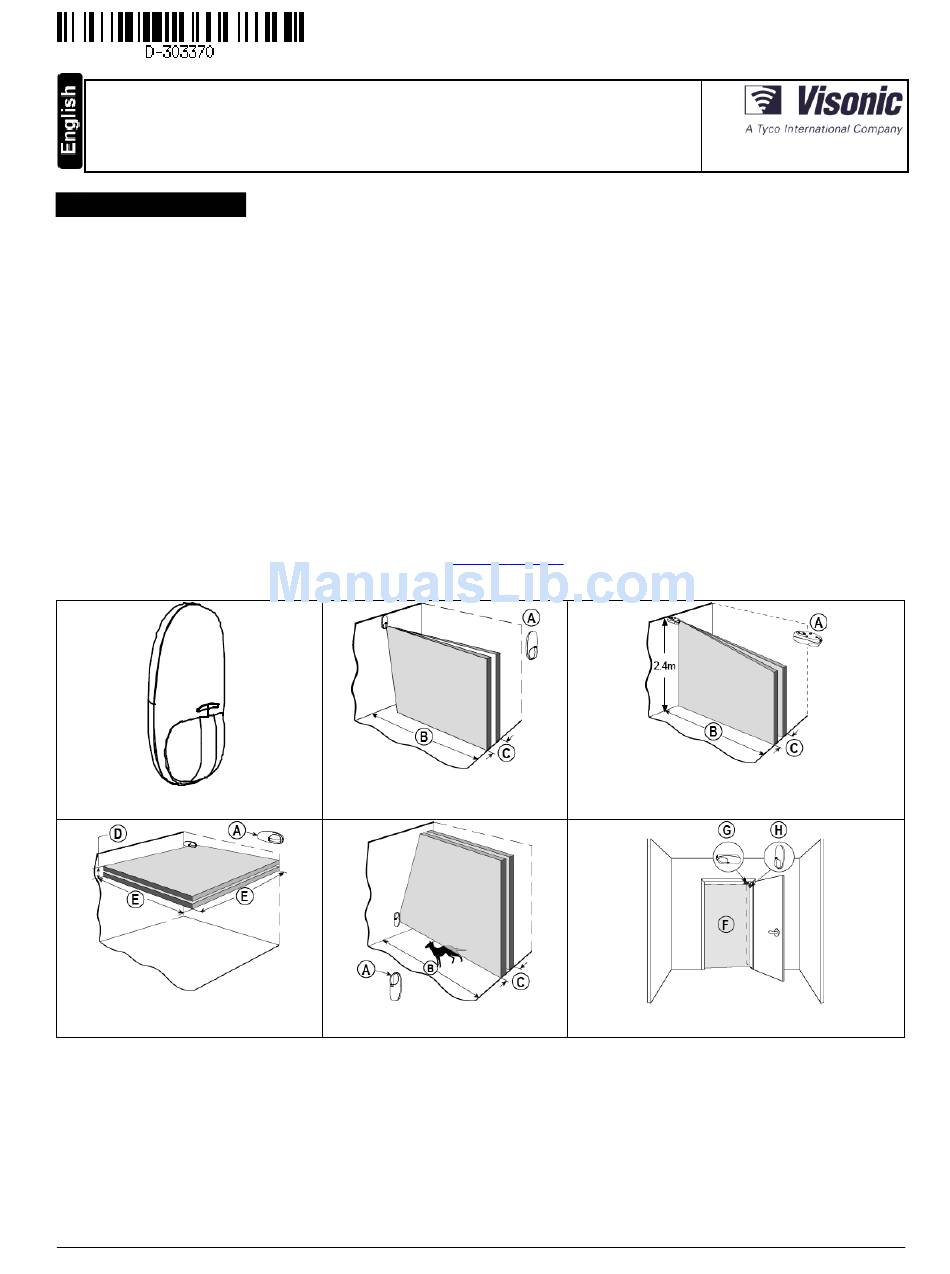

Figure 1. CLIP PG2 General View
Figure 4. Overhead Curtain
A. This side up
D. 0.5 m (1.65 ft) max. width
G. Option A
D-303370 CLIP PG2 Installation Instructions
Figures 2 through
Figure 2. Wall-Mount Curtain
Figure 5. Curtain / Pet Alley
B. 6 m (20 ft) max. distance
E. 3.6 m (12 ft) max. distance
H. Option B
Installation Instructions
6.
Figure 3. Ceiling-Mount Curtain
Figure 6. CLIP PG2 on Internal Doorframe
C. 1 m (3.3 ft) max. width
F. Detection curtain
1
