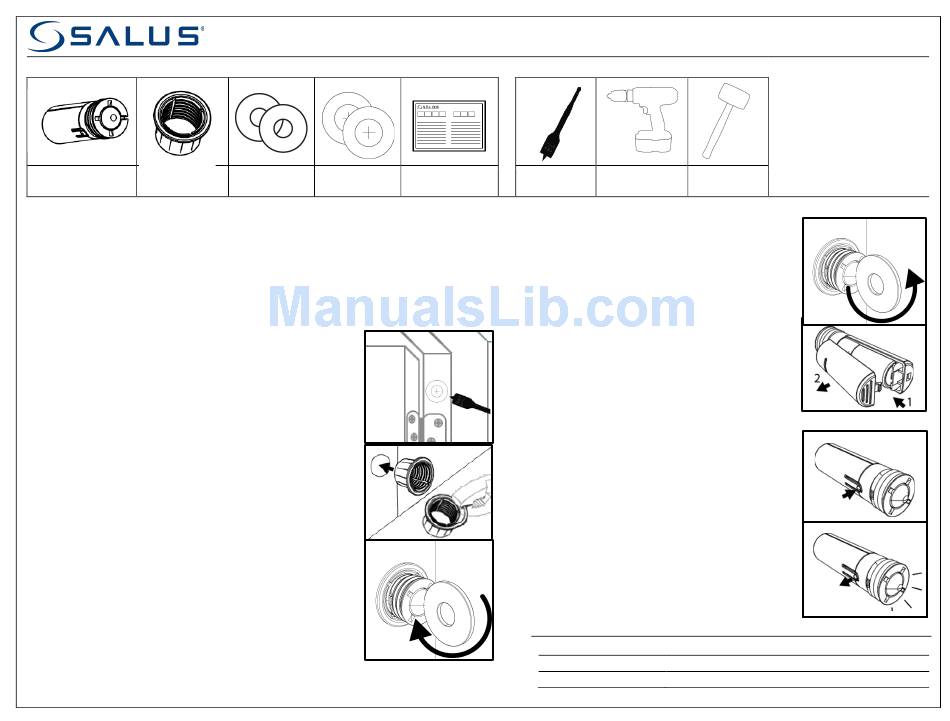

Salus SS881ZB Installation And Quick Start Manual

In the Box
Sensor w/ Battery Sensor Sleeve
(1x CR2, 3V Lithium)
P I
AIRING NSTRUCTIONS
• Follow your system's instructions to prepare to add devices to the system.
• Go to where the sensor is being installed to account for any radio interference.
• Pull the battery tab to start the pairing process.
• When the Sensor is detected and added to the system, proceed to the Sensor
installation.
I I
NSTALLATION NSTRUCTION
• Identify the specific location for the sensor and mark the
location with the sticker. The preferred location is in the
doorjamb on the hinge side of the door so that closing the
door will push in the plunger. If there are obstacles beside the
door, such as glass panels, the sensor can be mounted in the
lintel above the door or in the door itself.
• Drill a 7/8" hole at least 2.6" deep through the sticker, and
then remove the rest of the sticker.
• Insert the Sensor Sleeve in the hole until the flange is
seated on the jamb surface. If the sensor needs to be
installed flush with the surface of the jamb, remove the flange
from the Sensor Sleeve before inserting the sleeve.
• Insert the Sensor into the Sensor Sleeve and screw the
Sensor into the Sensor Sleeve until the desired depth is
reached. There will be clicks once the Sensor is past the
minimum number of turns.
• Align the front slots with the grooves in the sleeve for a
positive lock.
• Close the door to verify that the sensor operates properly
and the Sensor does not interfere with the closing of the
door. Screw the Sensor in further if it interferes. If closing
the door does not trigger the Sensor, unscrew the Sensor
a quarter turn each time until it does trigger.
Installation Tool Drill Stickers
(2) (2)
Installation / Quick Start Guide: Embedded Door Sensor (SS881ZB)
Tools Needed
Installation/User 7/8" Drill Bit
Guide
R
EPLACING THE
(Use only Duracell DL-CR2, Rayovac RL-CR2, Energizer
EL1CR2, or GP Batteries GPCR2 batteries)
• Mark the depth of the Sensor in the Sensor
Sleeve if required.
• Unscrew the Sensor from the Sensor Sleeve
using the installation tool or a coin.
• Remove the battery cover and remove the
battery.
• Insert a new battery into the Sensor, observing
the proper polarity.
• Replace the battery cover.
• Replace the sensor in the Sensor Sleeve at the
original depth.
F R
ACTORY ESETTING THE
• Unscrew the Sensor from the Sensor Sleeve.
• Remove the battery cover and battery.
• Press and hold the tamper switch while re-
inserting the battery.
• When the LED lights, release the tamper
switch.
• The Sensor is now in pairing mode and will
respond to pairing requests.
• Replace the battery cover.
• Replace the sensor in the Sensor Sleeve at the
original depth.
LED I
NDICATIONS
Solid at power up:
3 flashes then pause:
Visit www.salusinc.com for the User Manual
Drill Rubber Mallet
B
ATTERY
S
ENSOR
Initializing and checking for Factory Reset
Searching for network to join
:
NOTE
Additional equipment may be
required due to building
construction or materials, or
other radio interference that
may reduce the radio range.
The open field range is 400m.
Version 2
