RIDGID R855 Operator's Manual

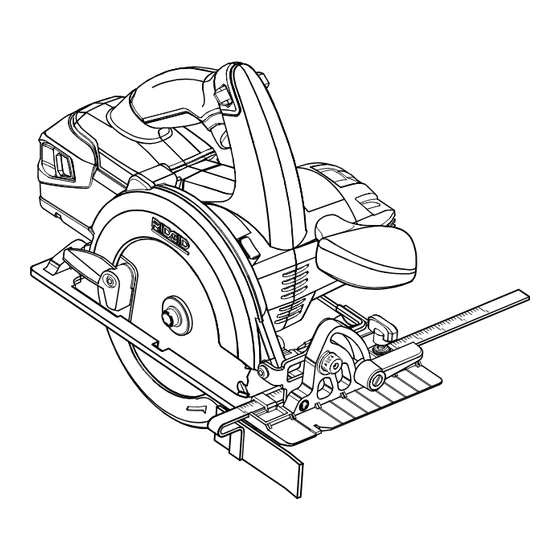

Ridgid 24 volt lithium-ion 6-1/2 in. circular saw operator's manual r855
Hide thumbs
Table of Contents

Advertisement

Quick Links

Your circular saw has been engineered and manufactured to our high standards for dependability, ease of operation, and
operator safety. When properly cared for, it will give you years of rugged, trouble-free performance.
WARNING:
To reduce the risk of injury, the user must read and understand the operator's manual before using this product.
Thank you for buying a RIDGID product.
SAVE THIS MANUAL FOR FUTURE REFERENCE
OPERATOR'S MANUAL
24 VOLT LITHIUM-ION
6-1/2 in. CIRCULAR SAW
R855
1
NEW BATTERY PACKS MUST BE
CHARGED BEFORE FIRST USE
