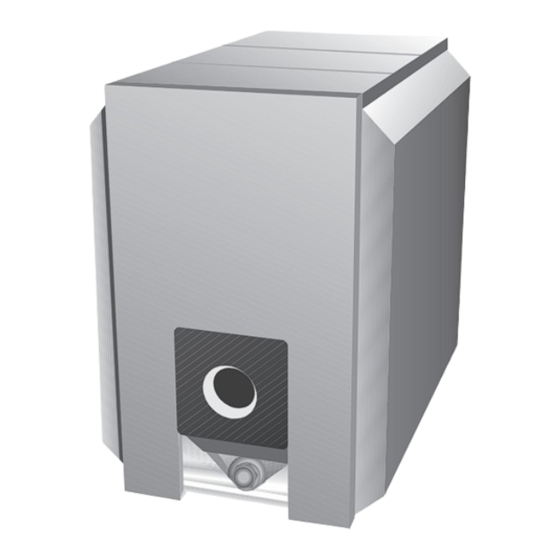

Low-temperature oil and gas-fired boiler
Bosch Uni 5000F US/CA
171/207/256
Installation and Service Instructions
Caution!
Observe the safety instructions of this installation
and maintenance manual before placing the boiler
in operation.
Danger!
If installation, adjustment, modification, operation or
maintenance of the heating system is carried out by
an unqualified person, this may result in danger to
life and limb or property damage.
The directions of this installation and maintenance
manual must be followed precisely.
Contact a qualified service company or service pro-
vider if support or additional information is required.
Caution!
The operating manual is a component of the techni-
cal documentation and must be handed over to the
operator of the heating system.
Discuss the content of this manual with the owner
or operator of the heating system to ensure that
they are familiar with all information required for
operation of the heating system. If the boiler will be
installed in Massuchussetts, it must be installed by
an installer or dealer who is registered there.
