11. Front Panel

The common front panel feature set conforms to the industry standard SSI 2x12 connector
specification, but includes an extension to this connector to support 3
LEDs. The longer connector is a 2x15 right angle header, which includes missing pin locations
at pins 25 & 26.
While the front panel board uses a custom 2x15 connector, the baseboard simply adds a 2x2
connector in-line (and appropriately spaced) with the existing SSI 2x12 connector. Boards that
support Quad LAN can populate the 2x2 connector, and boards that only support Dual LAN can
depopulate the connector.
Pin #
1
3
5
7
9
11
13
15
17
19
21
23
Revision 1.0

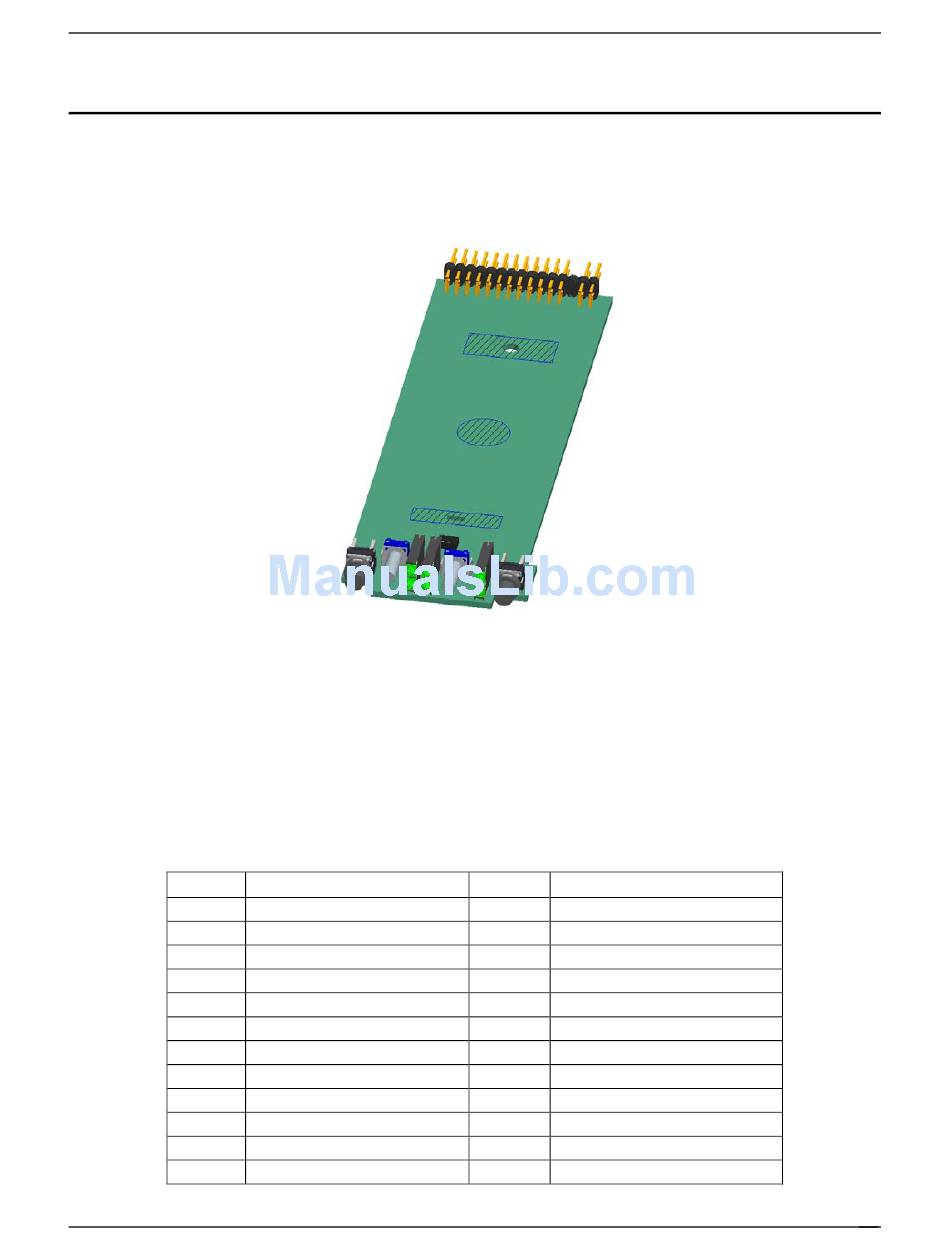

Figure 75. SSI Common Front Panel Board

Table 42. SSI Front Panel Connector Pin-out (Baseboard)

SSI Sig name
SB3.3V
Key
Power LED Cathode
3.3V
HDD Activity LED Cathode
Power Switch
GND (Power Switch)
Reset Switch
GND (Reset/ID/NMI Switch)
System ID Switch
Pull Down
NMI to CPU Switch
rd
Pin # SSI Sig name
2 SB3.3V
4 SB5V
6 System ID LED Cathode
8 System Fault LED Anode
10 System Fault LED Cathode
12 NIC#1 Activity LED
14 NIC#1 Link LED
16 I2C SDA
18 I2C SCL
20 Chassis Intrusion
22 NIC#2 Activity LED
24 NIC#2 Link LED
Front Panel
th
and 4 NIC Activity
