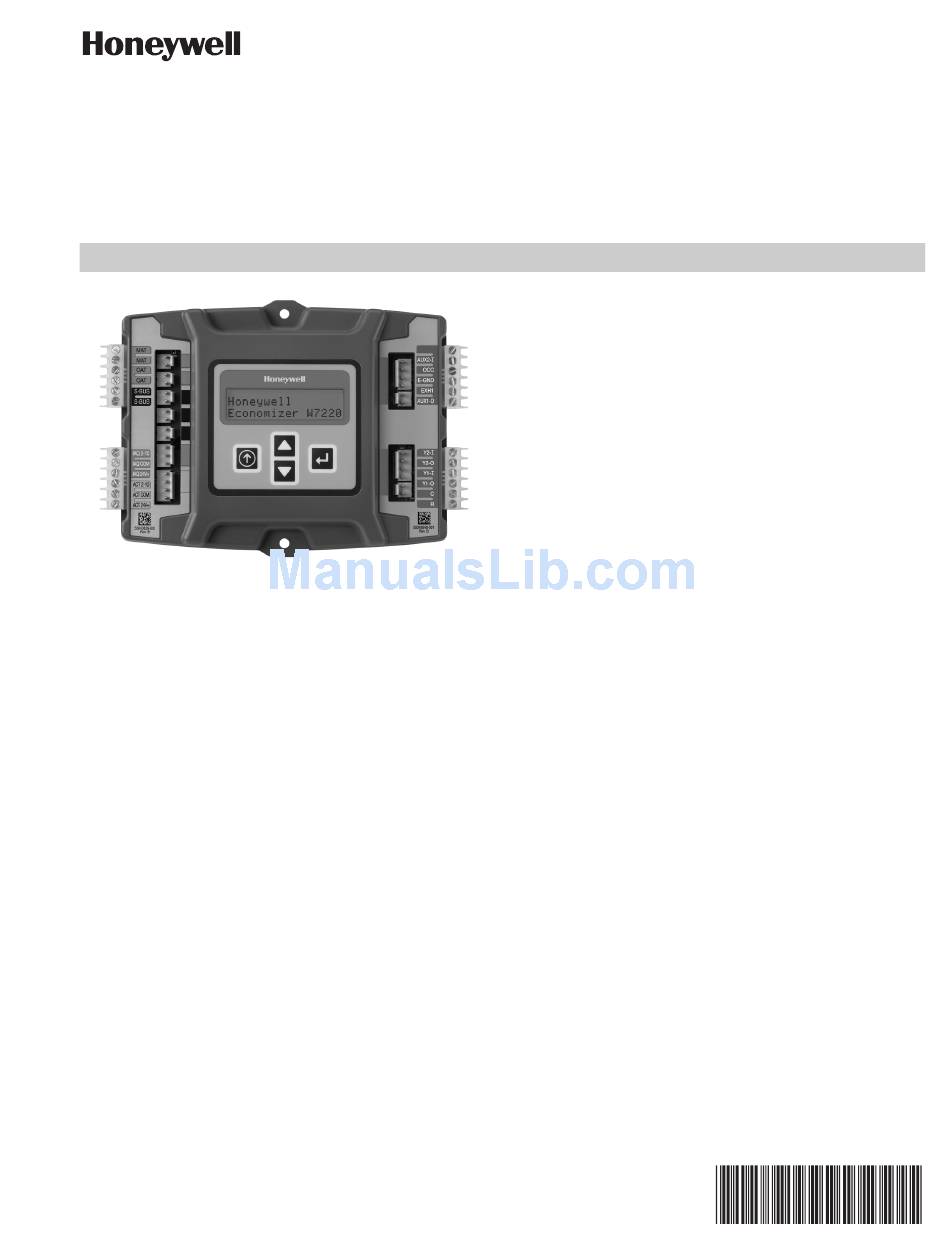

JADE™ Economizer Module
(MODEL W7220)

PRODUCT DESCRIPTION

The JADE™ Economizer System is an expandable
economizer control system, which includes a W7220
Economizer Module (controller) with an LCD and keypad.
The W7220 can be configured with optional sensors.
The W7220 Economizer Module can be used as a stand-
alone economizer module wired directly to a commercial
set back space thermostat and sensors to provide Outdoor
Air dry-bulb economizer control.
The W7220 Economizer Module can be connected to
optional Sylk Bus sensors for single or differential
enthalpy control. The W7220 Economizer Module
provides power and communications on the Sylk Bus for
the Sylk Bus sensors.
INSTALLATION INSTRUCTIONS
The W7220 Economizer Module automatically detects
sensors by polling to determine which sensors are present.
If a sensor loses communications after it has been
detected, the W7220 Economizer indicates a device fail
error on its LCD.

System Components

The JADE™ Economizer System includes an Economizer
Module, 20k mixed air sensor, damper actuator, an
optional CO
sensor, and either a 20k outdoor air
2
temperature sensor or Sylk Bus sensors for measuring
Outdoor Air and return air enthalpy, temperature, and
humidity.
Economizer Module
This is the core of the JADE™ Economizer System and
includes the user interface for the system. The W7220
Economizer Module provides the basic inputs and outputs
to provide simple economizer control. When used with the
optional Sylk Bus sensors, the Economizer Module
provides more advanced economizer functionality.
Sylk Bus Sensors (optional)
The Sylk Bus Sensor is a combination temperature and
humidity sensor which is powered by and communicates
on the Sylk Bus. Up to three sensors may be configured
with the JADE™ Economizer Module. See page 2 for
details.
CO
Sensor (optional)
2
A CO
sensor can be added for Demand Control
2
Ventilation (DCV). Either an analog (2-10 Vdc) or a wall-
mount Sylk bus TR40 CO
2
Jade economizer.
Product Description ...................................................................
Specifications ...............................................................................
Before Installation ......................................................................
Installation and Setup ...............................................................
Mounting ........................................................................................
Wiring ...............................................................................................
Wiring Application Examples .................................................
Interface Overview ...................................................................... 18
Setup and Configuration .......................................................... 18
Checkout ......................................................................................... 31
Troubleshooting ........................................................................... 32
sensor can be used with the
Contents
63-2700-11
1
2
3
3
3
4
9

Advertisement

Table of Contents
loading

Related Manuals for Honeywell JADE W7220

Summary of Contents for Honeywell JADE W7220

  • Page 1: System Components

    JADE™ Economizer Module (MODEL W7220) INSTALLATION INSTRUCTIONS The W7220 Economizer Module automatically detects sensors by polling to determine which sensors are present. If a sensor loses communications after it has been detected, the W7220 Economizer indicates a device fail error on its LCD. System Components The JADE™...

  • Page 2: Specifications

    TRADELINE® Catalog or price sheets for complete ordering number. If you have additional questions, need further information, or would like to comment on our products or services, please write or phone: 1. Your local Honeywell Environmental and Combustion Controls Sales Office (check white pages of your phone direc- tory).

  • Page 3: Before Installation

    — W7220 PCMOD interface tool for JADE controller present. and Personal Computer. For the software, go to www.customer.honeywell.com/economizertools IMPORTANT — 50053060-001 Duct mounting kit for sensors The module must be mounted in a position that —...

  • Page 4: Wiring

    JADE™ ECONOMIZER MODULE sensor is required for all applications and is mounted in the mixed air section of a rooftop unit either directly to the sheet metal using self tapping sheet metal screws or in the air stream using the duct mounting kit. Duct mount kit is part number 50053060-001.
  • Page 5 JADE™ ECONOMIZER MODULE TWO STAGE COOL DISCHARGE PROGRAMMABLE AIR SENSOR THERMOSTAT C7400S C7250A W7720A ENTHALPY C7400S MIXED AIR SENSOR SENSOR OUTDOOR MS3103J MS3105J MS7505 ACTUATOR DIRECT EXPANSION COIL FOR DIFFERENTIAL ENTHALPY, THE TWO C7400S ENTHALPY SENSORS ARE CONNECTED TO THE W7720A ECONOMIZER RETURN AIR CONTROL ONE IS MOUNTED IN RETURN AIR, AND THE OTHER IS MOUNTED IN OUTDOOR AIR.
  • Page 6 JADE™ ECONOMIZER MODULE Economizer Module Wiring Method Economizer Module Wiring Details Wire the sensors and outputs, then wire the power The wiring connection terminals for each module/sensor connection. are: • “JADE™ Economizer Module Wiring” on this page. Each terminal can accommodate the following gauges of •...
  • Page 7 JADE™ ECONOMIZER MODULE Table 2. Economizer Module - Right hand terminal blocks. Label Type Description Top Right Terminal Block The first pin is not used AUX2 I 24 Vac IN Shut Down (SD) or Heat (W) SWITCH Conventional only LABEL Heat Pump Changeover (O/B) in Heat Pump mode.
  • Page 8 CO2 Sensor Wiring 6. The output of the C7400S sensor to the W7220A will be 40 ºF and 40 %RH which will allow the When using the C7232 Honeywell CO sensors the black economizer to go into free cooling mode and brown common wires are internally connected and (economizing available).

  • Page 9: Wiring Application Examples

    JADE™ ECONOMIZER MODULE WIRING APPLICATION EXAMPLES This section shows the wiring configurations for the JADE™ Economizer system. Stand-alone Economizer The most basic configuration is the stand-alone Economizer (see Fig. 10 and Fig. 15). A stand-alone Economizer is directly wired to sensors, actuators, thermostat, and mechanical cooling controls in the roof top unit.
  • Page 10 JADE™ ECONOMIZER MODULE ON JADE CONTROLLER: 1. Y2-O CONNECT TO STAGE 2 MECHANICAL COOLING 2. Y1-O CONNECT TO STAGE 1 MECHANICAL COOLING JADE W7220A1000 3. MAT IS MIXED AIR SENSOR C7250A1001 4. OAT IS TEMPERATURE CHAGEOVER C7250A1001 SENSOR OR S-BUS OA ENTHALPY SENSOR C7400S1000 MS3103J1030 5.
  • Page 11 JADE™ ECONOMIZER MODULE ROOF TOP UNIT MA TEMP SENSOR W7220 ECONOMIZER CONTROLLER MODULE 20K NTC AUX2-I E-GND S-BUS S-BUS AUX1-0 IAQ (2-10V) SENSOR IAQ COM 2-10 VDC IAQ 24V (OPTIONAL) ACT (2-10V) ACT COM ACT 24V R(+) 24 VAC C(-) MS3103J S-BUS OR MS3105J...
  • Page 12 JADE™ ECONOMIZER MODULE ON JADE CONTROLLER: 1. Y2-O CONNECT TO STAGE 2 MECHANICAL COOLING M7215 2. Y1-O CONNECT TO STAGE 1 MECHANICAL COOLING JADE W7220A1000 3. MAT IS MIXED AIR SENSOR C7250A1001 4. OAT IS TEMPERATURE CHAGEOVER C7250A1001 SENSOR OR S-BUS OA ENTHALPY SENSOR C7400S1000 5.
  • Page 13 OR B AND W2 MAY BE LABELED W. WHEN USING A HEAT PUMP WITH DEFROST FEEDBACK, ADD AN ISOLATION RELAY BETWEEN O AND C. M32564D Fig. 15. Stand-alone dry-bulb Economizer configuration with Honeywell MS7503 or MS7505 Direct Coupled Actuator. 63-2700—11...
  • Page 14 WHEN USING A HEAT PUMP THERMOSTAT, THERMOSTAT TERMINALS MAY DIFFER: W1 MAY BE LABELED O OR B AND W2 MAY BE LABELED W. WHEN USING A HEAT PUMP WITH DEFROST FEEDBACK, ADD AN ISOLATION RELAY BETWEEN O AND C. M32650D Fig. 16. Stand-alone dry-bulb Economizer configuration with Honeywell MS3103J or MS3105J communicating actuators. 63-2700—11...
  • Page 15 MAY DIFFER: W1 MAY BE LABELED O OR B AND W2 MAY BE LABELED W. WHEN USING A HEAT PUMP WITH DEFROST FEEDBACK, ADD AN ISOLATION RELAY BETWEEN O AND C. M32565D Fig. 17. Economizer with Sylk Bus sensors for enthalpy configuration with Honeywell M7215 black motor. 63-2700—11...
  • Page 16 W1 MAY BE LABELED O OR B AND W2 MAY BE LABELED W. WHEN USING A HEAT PUMP WITH DEFROST FEEDBACK, ADD AN ISOLATION RELAY BETWEEN O AND C. M32566D Fig. 18. Economizer with Sylk Bus sensors for enthalpy configuration with a Honeywell MS7503 or MS7505 Direct Coupled Actuator. 63-2700—11...
  • Page 17 WHEN USING A HEAT PUMP WITH DEFROST FEEDBACK, ADD AN SYLKBUS SENSOR ISOLATION RELAY BETWEEN O AND C. M32653D Fig. 19. Economizer with Sylk Bus sensors for enthalpy configuration with a Honeywell MS3103J or MS3105J communicating actuators. NOT USED AUX2-1...

  • Page 18: Interface Overview

    JADE™ ECONOMIZER MODULE  INTERFACE OVERVIEW • Press the button to increase (change) the displayed parameter value.  • Press the button to decrease (change) the displayed This section describes how to use the Economizer’s user parameter value. interface for: •...
  • Page 19 JADE™ ECONOMIZER MODULE Table 5. Menu Structure Parameter Parameter Range and Default Menu Parameter Value Increment Notes STATUS ECON AVAIL YES/NO YES = economizing available; the system can use Outdoor Air for free cooling when required. ECONOMIZING YES/NO YES = Outdoor Air being used for 1 stage cooling.
  • Page 20 JADE™ ECONOMIZER MODULE Table 5. Menu Structure . (Continued) Parameter Parameter Range and Default Menu Parameter Value Increment Notes STATUS EXH2 OUT ON/OFF Output of AUX1 O terminal Displays ON when damper position CONTINUE reaches programmed percentage setpoint ON = 24 Vac Output, OFF = No Output; displays only if AUX1 O = EXH2 ON/OFF Output of AUX1 O terminal, ON = 24 Vac Output, OFF = No Output;...
  • Page 21 JADE™ ECONOMIZER MODULE Table 5. Menu Structure . (Continued) Parameter Parameter Range and Default Menu Parameter Value Increment Notes SETPOINTS MAT SET 53ºF 38 to 70 ºF; The economizer will modulate the OA damper to maintain the mixed increment by air temperature at the setpoint.
  • Page 22 JADE™ ECONOMIZER MODULE Table 5. Menu Structure . (Continued) Parameter Parameter Range and Default Menu Parameter Value Increment Notes SETPOINTS EXH1 SET 0 to 100%; Setpoint for OA damper position when exhaust fan 1 is powered by the CONTINUE increment by economizer.
  • Page 23 JADE™ ECONOMIZER MODULE Table 5. Menu Structure . (Continued) Parameter Parameter Range and Default Menu Parameter Value Increment Notes ADVANCED MA LO SET 45 ºF 35 to 65 ºF; Temp to activate Freeze Protection (close damper or modulate to MIN SETUP increment by POS if temp falls below set value)
  • Page 24 JADE™ ECONOMIZER MODULE Table 5. Menu Structure . (Continued) Parameter Parameter Range and Default Menu Parameter Value Increment Notes DAMPER MINIMUM The checkout for the damper minimum positions is based on the CHECKOUT POSITION system. See Table 6. DAMPER OPEN Positions damper to the full open position.
  • Page 25 In the Heating mode the ERV terminal will be energized when the OA is below the ERV OAT setpoint in the setpoint menu. When used with Honeywell communicating actuator the damper out is reported in XX.X% open versus XX.X Vdc. After 10 minutes without a command or mode change, the controller will change to normal operation.
  • Page 26 JADE™ ECONOMIZER MODULE Table 6. Damper minimum position settings and readings on checkout menu. Demand Control Ventilation Fan Speed (CO2 Sensor) Setpoints Checkout MIN POS VMAX-HS MIN POS H VMAX-HS MIN POS L VMAX-LS VENT MIN VMIN-HS VENT MAX VMAX-HS VENT MIN H VMIN-HS VENT MAX H...
  • Page 27 JADE™ ECONOMIZER MODULE OA Good to economize? Y1-I Y2-I FAN SPD Y1-O Y2-O Occupied Unoccupied High 24-v/On 24-v/On VENTMIN to Closed VENTMAX High 0-v/Off 0-v/Off VENTMIN to Closed VENTMAX High 0-v/Off 0-v/Off VENTMIN to Full- Closed to Full-Open Open High 24-v/On VENTMIN to Full- Closed to Full-Open...
  • Page 28 JADE™ ECONOMIZER MODULE Table 11. Dry Bulb Operation No DCV (CO2 sensor) - 2 Speed Fan. OA Good to economize? Y1-I Y2-I FAN SPD Y1-O Y2-O Occupied Unoccupied None 0-v/Off 0-v/Off MIN POS L Closed 24-v/On 0-v/Off MIN POS L Closed High 24-v/On...
  • Page 29 JADE™ ECONOMIZER MODULE OA Good to economize? Y1-I Y2-I FAN SPD Y1-O Y2-O Occupied Unoccupied High 24-v/On 24-v/On MIN POS H Closed 0-v/Off 0-v/Off MIN POS L Closed 0-v/Off 0-v/Off MIN POS L to Full- Closed to Full-Open Open High MIN POS H to Full- Closed to Full-Open DELAY...
  • Page 30 JADE™ ECONOMIZER MODULE ECONOMIXING DUAL ENTHALPY AVAILABLE HIGH LIMIT NOT AVAILABLE SINGLE ENTHALPY P2 (T,RH) (T,RH) TEMPERATURE M32286A Fig. 22. Single Enthalpy curve and boundaries. Table 15. Single Enthalpy and Dual Enthalpy High Limit Curves. Point P1 Point P2 Enthalpy Temp.

  • Page 31: Checkout

    Initial Menu Display On initial start up, Honeywell displays on the first line and Economizer W7220 on the second line. After a brief pause, CAUTION the revision of the software appears on the first line and Equipment damage may result.

  • Page 32: Troubleshooting

    You can also navigate to the Alarms menu at any time. By using this Honeywell literature, you agree that Honeywell will have no liability for any damages arising out of your use or modification to, the literature. You will defend and indemnify Honeywell, its affiliates and subsidiaries, from and against any liability, cost, or damages, including attorneys’...
