Electric Cooker
Instruction
MODEL : MFS90ISS
SAVE THESE INSTRUCTIONS CAREFULLY
Read these instructions carefully before using your cooker ,and keep it
carefully. If you follow the instructions, your cooker will provide you with many years
of good service.

Advertisement

Table of Contents
loading

Related Manuals for Midea MFS90ISS

Summary of Contents for Midea MFS90ISS

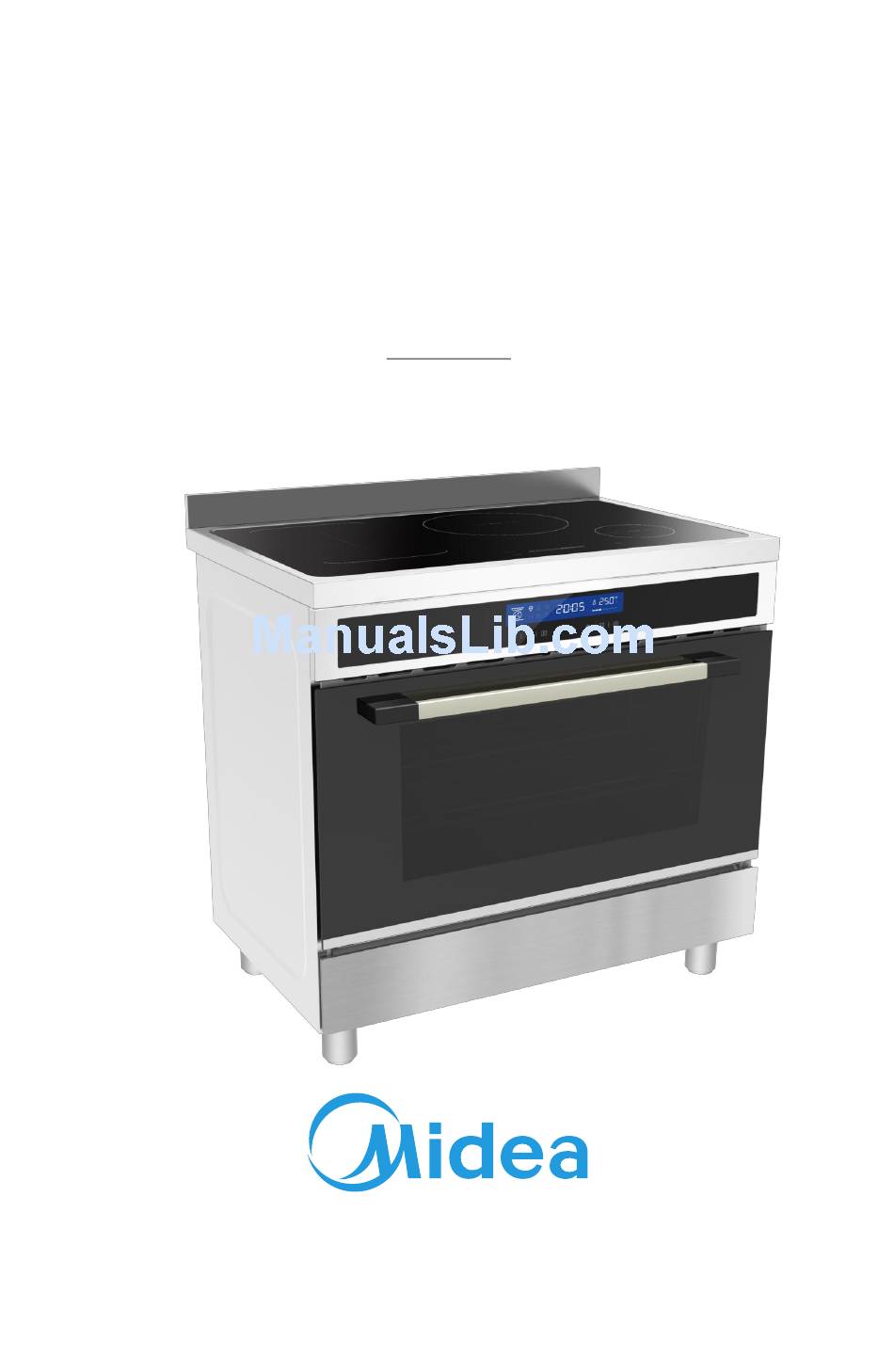

  • Page 1 Midea Electric Cooker Instruction MODEL : MFS90ISS SAVE THESE INSTRUCTIONS CAREFULLY Read these instructions carefully before using your cooker ,and keep it carefully. If you follow the instructions, your cooker will provide you with many years of good service.
  • Page 2 ACKNOWLEDGMENT Thank you for purchasing our product. We hope you enjoy using the many features and benefits it provides. Before using this product please study this entire Instruction Manual carefully. Keep this manual in a safe place for future reference. Ensure that other people using the product are familiar with these instructions as well.
  • Page 3 sensing probe: Only temperature probe recommended for this oven. • During use, the appliance becomes very hot. • Care should be taken to avoid touching heating elements inside the oven. • Do not allow children to go near the oven when it is operating, especially when the grill is on.
  • Page 4 Questo apparecchio non deve essere utilizzato da persone (compresi i bambini) con capacità fisiche, mentali o sensoriali ridotte, o mancanza di esperienza e conoscenza, a meno che non siano sorvegliati o istruiti riguardo l'utilizzo dell'apparecchio da parte di una persona responsabile della loro sicurezza. E' necessario sorvegliare i bambini affinchè...

  • Page 6: Table Of Contents

    6 - 14 Installation instructions Instructions for use 15 - 68 Installation instructions Safety precautions ..................7 Before installing ....................7 Applicance ....................7 Installation ....................10 Fitting the adjustable feet ................10 Fitting the splash guard ................11 Positioning and levelling ................11 Electrical connection ..................12 Stability brackets ..................14...

  • Page 7: Safety Precautions

    Safety precautions This manual is valid for several models. Variations in details for each cooker are possible. The safe operation of this appliance can only be guaranteed if it has been professionally assembled and installed in accordance with these instructions. The individual who assembled and installed the appliance is liable for damage or faults resulting from incorrect assembly or installation.
  • Page 8 Appliance dimensions Note the specified dimensions. All product outward appearance, the color A=89-149 mm take the material object as, the picture only supply the reference. 40 mm 605 mm 769 mm 995 mm...
  • Page 9 Adjacent units Adjacent units must be made of non-combustible material. The fronts of adjacent units must be resistant to temperatures up to at least 90 °C. If the appliance is fitted close to other units, the minimum distances specified in the picture must be maintained.

  • Page 10: Installation

    Installation This appliance is always supplied with a set of adjustable feet and, depending on the model, with a splash guard. The appliance may also be used without the splash guard. Fitting the adjustable feet Beforehand: • Remove all parts that are not permanently fixed. •...

  • Page 11: Fitting The Splash Guard

    Fitting the splash guard Depending on the model. Proceed as follows: - Remove the packaging and the protective film from the splash guard. - Screw the splash guard onto the rear of the appliance using the 2 bolts. - Not permitted use with lids or covers aftermarket.

  • Page 12: Electrical Connection

    Electrical connection • This appliance must be earthed by law. Before connecting the appliance to the electrical supply, check that the earth system in your house is working correctly. • Check that unit voltage and power, marked on the rating plate applied on the appliance, are correct for the supply.
  • Page 13 Leave the mains cable slightly overlong so that you can pull out the appliance for cleaning purposes. Proceed as follows: • Remove the rear backboard. • Undo the screw on the terminal block that fixes the cable in place. • Loosen the screw contacts and replace the cable with a new one of the same length. The cable must comply with the stipulated specifi- cations.

  • Page 14: Stability Brackets

    Stability bracket Bracket Existing slot in rear of cooker Dotted line showing the position of the cooker when fixed Wall fixing...

  • Page 16: Important Information

    Important information Read the instructions for use carefully. This will enable you to operate your appliance safely and correctly. This manual is valid for several models. Variations in details for each cooker are possible. Please keep the instruction manual, installation instructions and the various accessories in a safe place.
  • Page 17 Safety precautions This appliance is intended for domestic use only. This appliance must only be used for food preparation. Adults and children must not operate the appliance without supervision if: • they do not have the physical or mental ability; •...
  • Page 18 Overheated oil and fat Risk of f ir e. Overheated oil or fat can ignite very quickly. Never leave fat or oil to heat unattended. Should the oil ignite, do not try to put it out by pouring water on it. Cover the pan immediately with a lid or plate.
  • Page 19 Property damage Damage to the hob Only use the hob plates if cookware is placed on them. Do not heat empty pots or pans. This will damage the pan base. Do not allow saucepans to boil dry, in particular enamel and aluminium saucepans. The pan base must be clean, dry and flat.
  • Page 20 Damage to the oven Never cook meals on the floor of the cooking compartment. Do not leave the baking tray on the cooking compartment floor. Do not cover it with aluminium foil. Do not place oven or cookware on the oven floor. This will cause heat accumulation.
  • Page 21 The hob (according to the models ) Induction hob . max. 1800/3000 W zone 2. max. 1800/3000 W zone 3. max. 3000/4000 W zone 4. max. 1400/2000 W zone 5. Flexible zone 3000/4000 W 6. Glass plate 7. Control panel Table for domestic electric hob in according to the Delegated Regulation (UE) n°...
  • Page 22 Identification Model  See rating plate  Type hob Cooktop Number of zones or areas of cooking   Type of heating system Induction plate 3  =   28,0 cm  Cooking circular zones   4    =     15,0 20,0 23,0 20,0 Cooking not circular zones 23,0 40,0 23,0 ...

  • Page 23: Choosing The Right Cookware

    Instruction for use of the induction hob A Word on Induction Cooking Induction cooking is a safe, advanced, efficient, and economical cooking technology. It works by electromagnetic vibrations generating heat directly in the pan, rather than indirectly through heating the glass surface. The glass becomes hot only because the pan eventually warms it up.
  • Page 24 • You can check whether your cookware is suitable by carrying out a magnet test. Move a magnet towards the base of the pan. If it is attracted, the pan is suitable for induction. • “ ” 3. If does not flash in the display and the water is heating, the pan is suitable. •...
  • Page 25 The base diameter of induction cookware Cooking zone Minimum (mm) Maximum (mm) 1,2, Flexible zone 220x400 Using your Induction Hob To start cooking 1. Touch the ON/OFF control. After power on, the buzzer beeps once, timer control show “CL“ ，heating zone selection controls show “...
  • Page 26 • you have not placed a pan on the correct cooking zone or, • the pan you’re using is not suitable for induction cooking or, • the pan is too small or not properly centred on the cooking zone. No heating takes place unless there is a suitable pan on the cooking zone. The display will automatically turn off after 1 minute if no suitable pan is placed on it.
  • Page 27 Cancel the Boost function 1. Touching the heating zone selection control that you wish to cancel the boost function a: Touching the boost control “ ”, then the cooking zone will revert to its original setting. b: Touching the slider control, then the cooking zone will revert to the level you select.
  • Page 28 a: Touching the slider control, then the cooking zone will revert to the level you select. b: Touching the function control such as , then the cooking zone will revert to you select. FLEXIBLE AREA • This area can be used as a single zone or as two different zones, accordingly to the cooking needs anytime.
  • Page 29 viceversa), the flexible area detects automatically the new position, keeping the same power. To add a further pot, press again the dedicated keys, in order to detect the cookware. As two independent zones To use the flexible area as two different zones with different power settings, press the dedicated keys.

  • Page 30: Using The Timer

    Auto Shutdown Protection Auto shut down is a safety protection function for your induction hob. It shut down automatically if ever you forget to turn off your cooking. The default working times for various power levels are shown in the below table: Power level Keep warm 6~10...
  • Page 31 Setting the timer to turn cooking zones off If the timer is set on one zone: 1. Touching the heating zone selection control that you want to set the timer for. 2. Touch timer control , the “10” will show in the timer display and the "0"...
  • Page 32 (set to 15 minutes) (set to 45 minutes) 2. Once the countdown timer expires, the corresponding zone will switch off. Then it will show the new min. timer and the dot of corresponding zone will flash. • Touch the heating zone selection control, the corresponding timer will be shown in the timer indicator.

  • Page 33: Cooking Guidelines

    • Once the water has boiled, a series of beeps is heard and the zone indicator flashes. Then give a short press on the boiling cue control Power 9 is displayed by default. • The function can only work in 3rd cooking zone. •...

  • Page 34: Heat Settings

    about 2 – 8 minutes per side. Press the steak to gauge how cooked it is – the firmer it feels the more ‘well done’ it will be. 5. Leave the steak to rest on a warm plate for a few minutes to allow it to relax and become tender before serving.

  • Page 35: Care And Cleaning

    Care and Cleaning The settings below are guidelines only. The exact setting will depend on several factors, including your cookware and the amount you are cooking. Experiment with the cooktop to find the settings that best suit you. What? How? Important! Everyday soiling on 1.

  • Page 36: Hints And Tips

    Hints and Tips Problem Possible causes What to do The induction hob No power. Make sure the induction hob is cannot be turned on. connected to the power supply and that it is switched on. Check whether there is a power outage in your home or area.
  • Page 37 Pans do not become The induction hob cannot Use cookware suitable for induction hot and appears in detect the pan because it is not cooking. See section ‘Choosing the the display. suitable for induction cooking. right cookware’. The induction hob cannot Centre the pan and make sure that detect the pan because it is too its base matches the size of the...

  • Page 38: The Oven

    The oven Always keep small children away from the oven while it is in use. Before cooking for the first time switch the oven on and allow it to heat up while empty. At this point you may notice a slightly odour, this is perfectly normal and occurs as the protective covering which surrounds the insulating panels is gently removed.
  • Page 39 Electronic control Symbol Function description Oven Lamp: Which enables the user to observe the progress of cooking without opening the door. Oven lamp will light for all cooking functions. Defrost: The circulation of air at room temperature enables quicker thawing of frozen food, (without the use of any heat).

  • Page 40: Oven Accessories

    Oven Accessories The accessories can be inserted in the oven in 4 different shelf positions. You can pull the accessories two-thirds of the way out without them tipping. This allows meals to be removed easily. You can buy accessories from the after-sales service or from specialist retailers.
  • Page 41 Using the electronic oven control OPERATION INSTRUCTIONS 1. Clock Setting After connectiong the unit to the power, the symbols "0:00" will be visible on the display. 1> Press " ", the hour figures will flash. 2> Press " " to adjust the hour figures, (time should be within 0--23). 3>...
  • Page 42 5. Child lock function To Lock : press " " and " " simultaneously for 3 seconds, there will be a long "beeping" sound and the " " will be illuminated. Lock quitting : press " " and " " simultaneously for 3 seconds, there will be a long "beeping" sound indicating the child-lock is released.
  • Page 43 10. Meat probe function: 1> In waiting state, insert the meat probe, the LCD will display " PROB" and the icon " " will light. 2> Press “ ” to choose function you need. The related indicator will illuminated. Functional sequence diagram: .
  • Page 44 The storage compartmen t Open the storage compartment by folding down the fascia panel. This compartment can be used to store hob or oven accessories. There is a plastic sucker in some models can help you open the drawer. Risk of fire. Never leave combustible items in the storage compartment.

  • Page 45: Before Using For The First Time

    Before using for the first time Please read the following instructions before using your appliance for the first time. Remove the appliance packaging and dispose of this appropriately. Baking out the oven Cooking compartment Remove the accessories from the cooking initial cleaning compartment.
  • Page 46 Heating up the grill 1. Put the switch in position grill 2. After 25 minutes, switch the oven off by turning the contol knob clockwise to position 0. Rinsing cooking Clean the cooking compartment with hot compartment after initial soapy water. Refit the hook-in racks. cleaning...
  • Page 47 Using the rotary spit The rotary spit can be used to cook joints such as rolled joints and poultry with excellent results. The meat is roasted thoroughly and evenly. The rotary spit function only when the switch is in position grill.
  • Page 48 Inserting the rotary spit Insert the rotary spit as follows: Hook the spit holder into the bracket on the ceiling of the cooking compartment. If you require to preheat the oven, hook in the holder before preheating. Risk of burns Never touch the hot surfaces of the cooking compartment or the heating elements.
  • Page 49 Removing the rotary spit Risk of burns. Never touch the hot surfaces of the cooking compartment or the heating elements. Children must be kept at a safe distance from the appliance at all times. Open the appliance door carefully. Hot steam may escape. Risk of burns.

  • Page 50: Cleaning And Care

    Cleaning and care Never use high-pressure cleaners or steam jets. Risk of short circuit. Never use caustic or abrasive cleaning agents. These could damage the surface. If such an agent gets on the front of the appliance, wipe it off immediately with water.
  • Page 51 OPTIONAL: ONLY FOR THE MODELS EQUIPPED WITH TELESCOPIC RAILS The oven is equipped with telescopic rails to position the pan and wire grid (Fig. 1). You can change the position, depending on your personal taste and needs ofdifferent foods (Fig. 2). Fig.
  • Page 52 Using the correct cleaning agent Do not use cleaning agents that contain abrasive substances or acids, or cleaning aids such as steel wool or stainless steel sponges. These could damage the surfaces. Appliance parts Cleaning agent and cleaning aid • Use glass cleaner. Appliance door glass panel Risk of injury.
  • Page 53 Cleaning the interior glass of the oven The interior glass of the oven door can be removed: with the door in the semi-open position, use both hands to remove the glass .After cleaning, refit the the glass by proseeding in reverse order. Note In some models, the glass is screenprinted.
  • Page 54 The inner glass of the oven The inner glass of the oven door can be removed: 1. Open the oven door completely. 2. Flip the hinge hooks "A" outwards. 3. Shut the oven door slowly until it reaches hooks "A", making sure these are locked into slots "B"...
  • Page 55 Removing and fitting the appliance door You can remove the appliance door for easier cleaning. The hinges of the appliance door are each secured by a locking lever. When the locking lever is folded in (A), the appliance door is secured. It cannot be unhinged. If the locking lever is open (B), only the hinge is secured, and you can remove the appliance door.
  • Page 56 Fitting the appliance door Proceed as follows: Hold the appliance door at an angle. Insert both hinges, left and right, into the supports. Position the door so that the hinge grooves engage on both sides. Open the appliance door. Fold in the locking levers on both sides. Close the appliance door.
  • Page 57 Removing and inserting the hook-in racks You can remove the hook-in racks in order to clean them separately. The hook-in racks are all fixed to the walls of the cooking compartment at four points. Removing the hook-in To remove the hook-in racks, proceed as follows: racks Undo the screw on the bottom the hooking rack.
  • Page 58 Faults and the after-sales service Malfunctions often have simple explanations. Please read the following notes before calling the aftersales service. Fault Possible cause Remedial action The door panel steams up when Normal occurrence; Not possible; this has no the oven is hot. caused by the effect on oven performance.

  • Page 59: Replacing The Oven Light Bulb

    Replacing the oven light bulb WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock If the oven light bulb fails, it must be replaced. Replacement heat-resistant bulbs can be obtained from the after-sales service or from specialist retailers.

  • Page 60: Aftersales Service

    Aftersales service Our after-sales service is there for you if your appliance needs to be repaired. You will find the address and telephone number of your nearest after- sales service centre in the phone book. The after- sales service centres listed will also be happy to give you the details of an after-sales service point near you.

  • Page 61: Tips And Tricks

    Tips and tricks The following are tips and tricks to help you when cooking food in your appliance. Tips for saving energy Here are a few tips for saving energy when using the hob and oven. Tips on using the hob Suitable cookware Make sure that the diameter of the cookware is diameter...
  • Page 62 Tips for using your appliance The following tips relate to ovenware and cooking and explain what to do if something goes wrong. General tips Since a lower temperature allows more even browning. Clean the appliance and accessories after each use, once they have cooled down. Always place baking tins or ovenware in the centre of the wire rack.
  • Page 63 Baking tips How to confirm whether your Approximately 10 minutes before the end of the sponge cake is cooked baking time stated in the recipe, pierce the highest through. point of the cake with a wooden skewer. If no cake mixture sticks to the wood, the cake is ready.
  • Page 64 FOR SPARE PARTS OR TO FIND THE ADDRESS OF YOUR NEAREST STATE SPARE PARTS CENTRE IN AUSTRALIA MIDEA HOME APPLIANCES AUSTRALIA PTY LTD Unit 11, 75 Lorimer Street, Southbank, VIC, 3006 After-sales service No.: 1800 88 60 10 P/N:16171100A24556...
