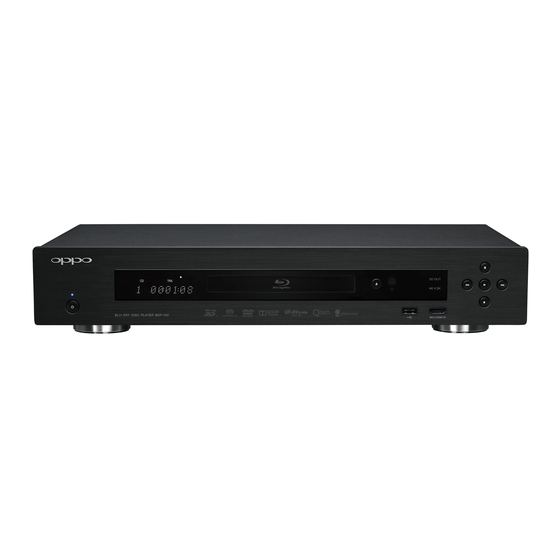

Pro kit installation manual for
Oppo BDP-103 / BDP-103EU
Disconnect the mains cable, and remove the top plate of the player.
Note the yellow marked points where cables must be inserted.
Start by attaching these 3 cables to the kit. The flatcable is inserted by opening the
"flip"-lock, then insert the cable (blue side up), and then close the flip again. If the flip
is difficult to close, please align the cable accordingly so it is perfectly centered. Do not
put excess pressure on the flip.
Figure 1
Figure 2
Advertisement
Related Manuals for Oppo BDP-103
Summary of Contents for Oppo BDP-103
- Page 1 Pro kit installation manual for Oppo BDP-103 / BDP-103EU Figure 1 Disconnect the mains cable, and remove the top plate of the player. Note the yellow marked points where cables must be inserted. Figure 2 Start by attaching these 3 cables to the kit. The flatcable is inserted by opening the “flip”-lock, then insert the cable (blue side up), and then close the flip again.
- Page 2 Figure 3 Connect the cables, start with the small flatcable between the Oppo board and the kit. When all cables are attached, lift the kit so it is possible to remove the protective paper from the double adhesive tape on the backside of the kit. Align the kit with the use of the small flatcable, and attach the board to the bottom of the chassis.
- Page 3 Please update your player to the latest official firmware from Oppo. Check that the firmware version is BDP10X(EU)-38-1211 or newer. You can check the firmware version by going to the setup menu, and then selecting Device Setup - Firmware Information.
