Operating
Instructions
Important:
Read this manual and all labels carefully before operating your powder
actuated tool. This manual should always accompany the tool and be
transferred with it upon change of ownership.

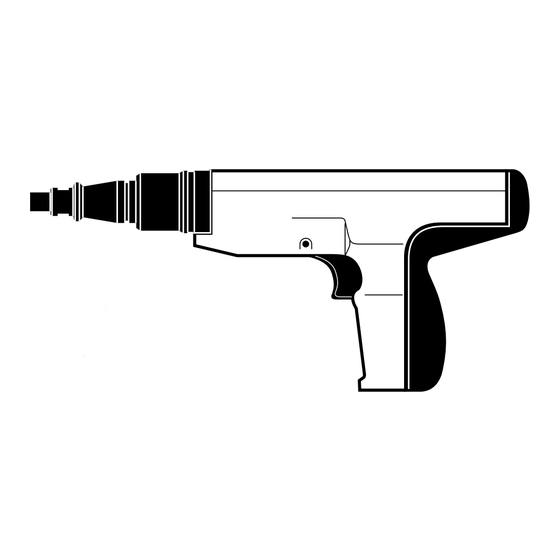

REMINGTON
Powerdriver
Model 493
®
G 028
POWDER ACTUATED TOOL
MANUFACTURERS´ INSTITUTE INC.
G 029
®

Advertisement

Table of Contents
loading

Summary of Contents for Remington 493

  • Page 1: Operating Instructions

    Important: Read this manual and all labels carefully before operating your powder actuated tool. This manual should always accompany the tool and be transferred with it upon change of ownership. Powerdriver Model 493 ® G 028 ® ™ POWDER ACTUATED TOOL MANUFACTURERS´...
  • Page 2: Table Of Contents

    Application Chart ... 24 Parts Central ... 26 Warranty ... Back Cover The Remington Powerdriver Model 493 is designed for use with Remington 27 caliber power load strips and Remington power fasten- ers which are no longer than 3". Remington power fasteners are manufactured from special steel and heat treated to produce a very hard yet ductile fastener.
  • Page 3: Warning: Safety Precautions

    Warning: Safety Precautions IMPORTANT: Read these operating instructions carefully and com- pletely before trying to operate or service this tool. Improper use of this tool can cause serious injury or death from firing fastener into body or from flying debris. We expressly disclaim any liability for any injury to persons or damage to property which result from your failure to take the precautions contained in this manual.
  • Page 4: Safety Precautions

    Safety Precautions Always clear the work area on all sides and post appropriate warning signs on job sites. Make sure the work area is clean from loose material and debris. HANDLING THE TOOL Never place your hand over the muzzle. Accidental discharge can cause serious injury.
  • Page 5 Store powder actuated tool and power load strips in a locked container. Unload tool before storing. Keep power loads of different power levels in separate containers. Never carry or pass a loaded powder actuated tool. Never point a powder actuated tool at anyone. If the tool is dropped, inspect for damage and repair it before continuing to work.
  • Page 6 Safety Precautions An operator taking medication should take extra precautions while handling the tool. Never drink alcoholic beverages or take medications which impair your vision, balance or judgement before using a powder actuated tool. KNOW YOUR FASTENING BASE MATERIAL 482-26 Point flattens TOO HARD...
  • Page 7 CAST IRON GLASS Never attempt to drive power fasteners into very hard or brittle materials including, but not limited to cast iron, glass, tile, stone, brick, or hardened steel. Materials of this type tend to shatter and create hazard from flying particles. Never make fastenings in spalled or cracked areas.
  • Page 8 Safety Precautions 3" 482-38 Do not drive power fasteners into concrete less than three times as thick as the intended fastener penetration, within 3" of the edge, within 3" of another power fastener or within 3" of a failed power fastener. WELD 482-40 TOO THIN...
  • Page 9 Should the tool fail to fire, hold the muzzle firmly against the work surface for 30 seconds. Release the trigger and remove pressure on the tool while holding the muzzle against the work surface. Again press the tool firmly against the work surface and pull the trigger. If the tool still fails to fire, hold the tool firmly against the work surface for another 30 seconds before advancing the power load strip.
  • Page 10 POWER LEVEL 5 Remington power load strips are available in three power levels – green (level 3), yellow (level 4) and red (level 5). Green is lowest power level, red is highest power level. Always start with the lowest power level (green-level 3) and increase until a proper fastening is made (See page 13 “Selecting Power...
  • Page 11 Shank Plastic Flute 482-60 Never use common nails or other materials as fasteners. Remington Power Fasteners are manufactured from special steel and heat treated to produce a very hard yet ductile fastener. Never pry a power load out of the strip. Prying can discharge the load causing serious injury (See Troubleshooting Guide, page 23).
  • Page 12: Why A Fastener Holds

    Why A Power Fastener Holds WHY A POWER FASTENER HOLDS IN CONCRETE The compression bond of the concrete to the power fastener accounts for the majority of the holding power. The fastener displaces the concrete which tries to return to its original form causing a squeezing effect. Maximum holding power is achieved when the depth of penetration produces a bond on the power fastener equal to the strength of the concrete.
  • Page 13: Selecting Fasteners And Power Loads

    Selecting Power Fasteners and Power Loads FASTENING INTO CONCRETE The proper power fastener length can be determined by adding the thickness of the material to be fastened and the amount of fastener that will actually penetrate the con- crete. The concrete must be three times as thick as the intended fastener penetration.
  • Page 14: Operation

    Operation Grasp barrel assembly and slide forward rapidly until it stops. Push barrel assembly back into tool to the closed position. This sets piston into firing position. 482-70 Insert power fastener into muzzle of tool, head end first. Push the fastener until point is even with end of tool.
  • Page 15 Squeeze trigger to set power fastener. Be sure to keep pressure on tool during this operation. Grasp base plate and slide barrel forward rapidly until it stops. Push base plate back into liner to the closed position. This advances the power load strip and resets the piston for the next fastening.
  • Page 16: Parts List

    Parts List Part 301002 301034 301906 301531 301533 301015 305100 301014 301013 301012 301016 301046 301047 305006 305903 301208 305010 305009 301011 301300 301023 301024 301904 301026 301025 301028 301601 301844 301840 301843 301845 301053 056415 IMPORTANT: Do not use key numbers when ordering service parts. Always order components by part number and description.
  • Page 17: Cleaning And Maintenance

    Cleaning and Maintenance Clean tool after each days use. Disassemble and clean the barrel assembly with the wire brush provided with tool. Notice: Do not attempt to clean power load strip channel with wire brush. Apply good quality penetrating lubricant spray (such as WD-40) sparingly and wipe dry.
  • Page 18: Tool Disassembly

    Tool Disassembly WARNING: Never disassemble, replace barrel, clean, or assemble a loaded powder actuated tool. REMOVING BARREL ASSEMBLY 1. Using screwdriver, lift end of annular spring and rotate spring until stop is uncovered (see Figure 1). 2. Using thumb, push stop towards rear of tool and remove (see Figure 2). 3.
  • Page 19 6. Remove piston assembly from piston sleeve (see Figure 4). Figure 4 - Removing Piston From Piston Sleeve 7. Tilt rear of base plate down. Guide will slide out. REMOVING RUBBER PAD 1. Loosen screw on back of rubber pad with 5mm Allen wrench. 2.
  • Page 20 REMOVING FIRING PIN 1. Remove plug from end of tool. Do this by pressing plug in and turning it 90°. This will release the plug from the tool body. 2. Remove the two springs within the cylinder at rear of tool body. Figure 7 - Removing Plug and Springs to Access Firing Pin 3.
  • Page 21: Tool Assembly

    ATTACHING LINER TO TOOL BODY 1. Replace two ball bearings and springs into end of liner (see Figure 9, page 20). 2. Slide tool body onto liner. 3. Insert two screws into front of tool body just under liner. Tighten screws firmly. ATTACHING TRIGGER ASSEMBLY TO TOOL BODY 1.
  • Page 22 ATTACHING RUBBER PAD 1. Slip top of rubber pad over plug at rear of tool body (see Figure 5, page 19). 2. Press rubber pad into place. 3. Tighten screw on back of rubber pad with 5mm Allen wrench. ASSEMBLING BARREL ASSEMBLY 1.
  • Page 23: Troubleshooting

    Troubleshooting Guide PROBLEM Piston hangs out of muzzle. Overdriven fastener. Piston jammed. Power load strip will not advance. Reduction or loss of power. Tool does not completely depress. Tool does not fire. Tool does not fire. Opening and closing of barrel or pushing down on tool, etc.
  • Page 24: Fasteners

    Fasteners 482-78 SP FASTENERS Application Chart Power load and power fastener application information. For fastening this Two by fours Furring strips Electrical junction boxes Conduit clips Shelf brackets 1/4" Plywood or pegboard Power load listings are recommendations only. If you are in doubt, try a test fastening using the next lightest power load.
  • Page 25 IMPORTANT • Recommended for use with Remington power load strips and power fasteners. • Only use power fasteners up to 3" long. • If power fastener goes below the top surface of the board, use penetrating control disc (* see illustration below).
  • Page 26: Parts Central

    Contact authorized dealers of this product. If they can’t supply original replace- ment part(s), either contact your nearest Parts Central (see below) or call DESA International’s Parts Department at 1-800-972-7879 for referral information. In Canada call 1-905-826-8010. When calling DESA International, have ready •...
  • Page 27 Maintenance Log Date Maintenance Performed 103500...
  • Page 28: Powerdriver Model

    Limited Warranty Agreement DESA International warrants the Remington Powerdriver Model 493 against defects in materials and workmanship for a period of one (1) year from the date of purchase. If within one (1) year from the purchase date this Powder Actuated Tool fails due to a defect in material or workmanship, DESA will repair or replace the tool at DESA’s...
