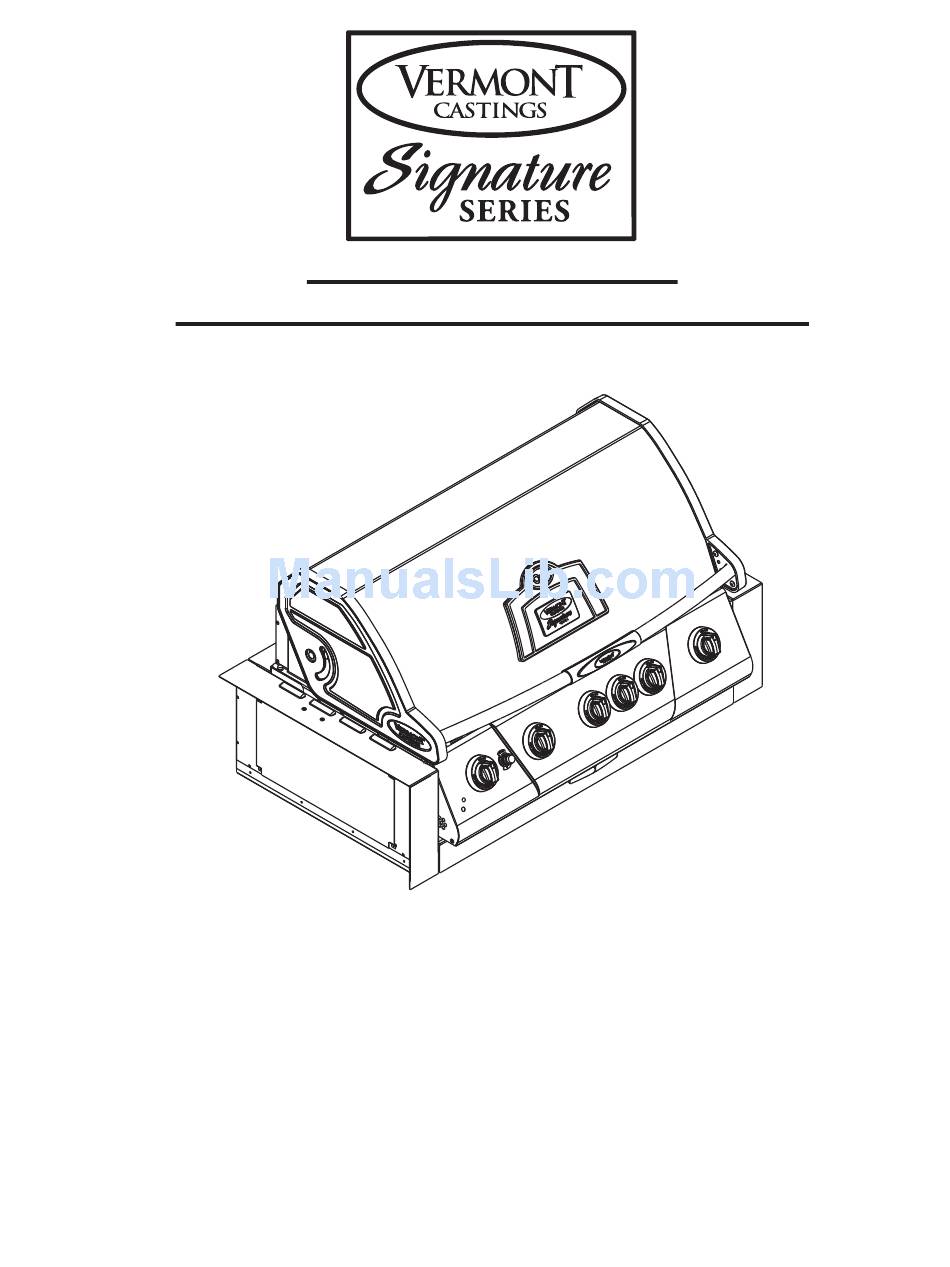

VCS3008BI Series / VCS5008BI Series
Tools Required: Knife or scissors, Phillips or Robertson (square head) screwdriver.
CAUTION: This grill is intended ONLY to be built into an enclosure.
CAUTION: The assembly of this grill requires two (2) people.
WARNING: Some parts may have sharp edges; to avoid injury, wearing gloves during assembly,
lifting or moving the grill is recommended. Protective eyewear and long sleeves are also strongly
recommended.
NOTE: Remove the protective plastic coating from the stainless steel, failure to do so will void the warranty.
Assembly Procedures
����
����� �� �����
�����
50004808 1/08 Rev. 3 En
