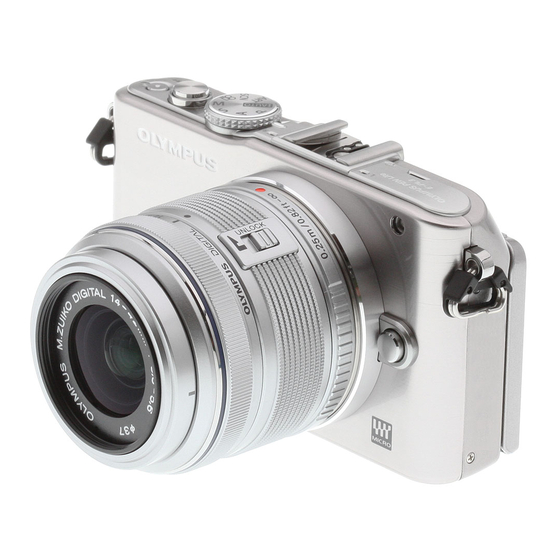

Olympus E-PL3 Manual

Olympus E-PL3 Guide_Olypmus E-PL3 settings 4/22/2013 1:14 PM Page 1
PHOTOTOP
®
PhotoTop Camera calibration file was created for a
combination of:
Camera S/N: ____________________________
Lens S/N: ______________________________
• 17mm Fixed focal length (non zoom)
• • Never to be removed from camera body
• • Do not interchange lens with other Olympus bodies
• Acceptable Focus Range – 1.0m to 3.0m (3 – 12 ft)
• Unique Camera setting: Auto Focus with Fill In Flash
Format Card
1. Turn camera on
2. Click MENU
3. Go to Shooting Menu 1 (top of list)
4. Click OK
5. Card Setup OK
6. Format OK
7. Yes OK
Camera Setup for PhotoTop
1. Turn camera on
2. Set to Manual Mode (M)
3. Select OK (within 4-way Command Section)
4. Flash Mode = Fill In
5. Flash +/- = +1.0
6. Meter = ESP
7. Focus = S-AF (single autofocus)
8. ISO = 640
9. Face Priority = Off
10. Movie = Off
11. Focal Length (Image Stabilizer) = Off
12. Color Mode = Natural
13. White Balance = WB Flash
14. Frames – Single
15. Ratio = 4:3
16. Resolution = M/N 2560 x 1920
17. Motion JPEG = 640 x 480
Highlighted items indicate Mandatory Settings that will affect the quality of your PhotoTop template.
FABRICATOR'S CHOICE, LLC . 1375 TROUT BROOK CIRCLE . ST PAUL . MN . 55117 . 888 299 8840 . 651 259 1310 fax . fabchoice.com
Calibrated Camera
by
Semi Pro Camera Guide
Olympus E-PL3 w/17mm Lens
Shutter Speed & Aperture Set Up
Shutter Speed can only be set in Manual Mode
1. Push 4-Way Command Up – this will highlight the
Shutter/Aperture settings
2. Use up/down to set shutter speed to 200 or 250
NOTE: When Flash is engaged, the camera will
automatically set the shutter speed to 160.
3. Use left/right to set aperture to F8.0 (never set lower)
4. Press OK to accept settings
Initial Set Up
(only custom settings pertaining to PhotoTop are noted in this set up)
1. Click Menu (bottom right corner)
2. Push 4-way Command Down to Custom Menu
3. Click OK
4. AF/MF (Click OK)
a. MF Assist = On
b. Push 4-way Left 1x
5. DISP/PC (Click OK)
a. Push 4-way Down 7x
b. Live View Boost = ON
6. Lightly touch the shutter button to return to normal
operations mode.
Normal PhotoTop Operations
1. Remove Lens Cap
Check that lens is clean
2. Turn Camera on
3. Verify that Mode = M (manual)
4. Compare rear LCD screen info with image on back of page
Frame counter in lower right corner will typically not be
the same on your camera
5. Manually activate Flash
6. Point camera towards area of measurement
7. Push Shutter Release button half way (1/2) to ensure good
focus lock
If focus is not found then reposition camera to a object
with contrast and push shutter release button half way
until good focus point is selected
8. Compose image and push shutter release completely
To Delete One Photo
1. Select Image Review button (button with blue arrow in upper
left corner)
2. Use left/right command buttons to navigate thru the images
3. Click the RED TRASH can button next to the Image Review
button
4. Select YES
Normal (Non-PhotoTop) Camera Operations
If you wish to use the camera for taking additional site photos
then simply set the mode to either
remember to set the mode back to
Auto or P . When finished
M for normal PhotoTop usage.
