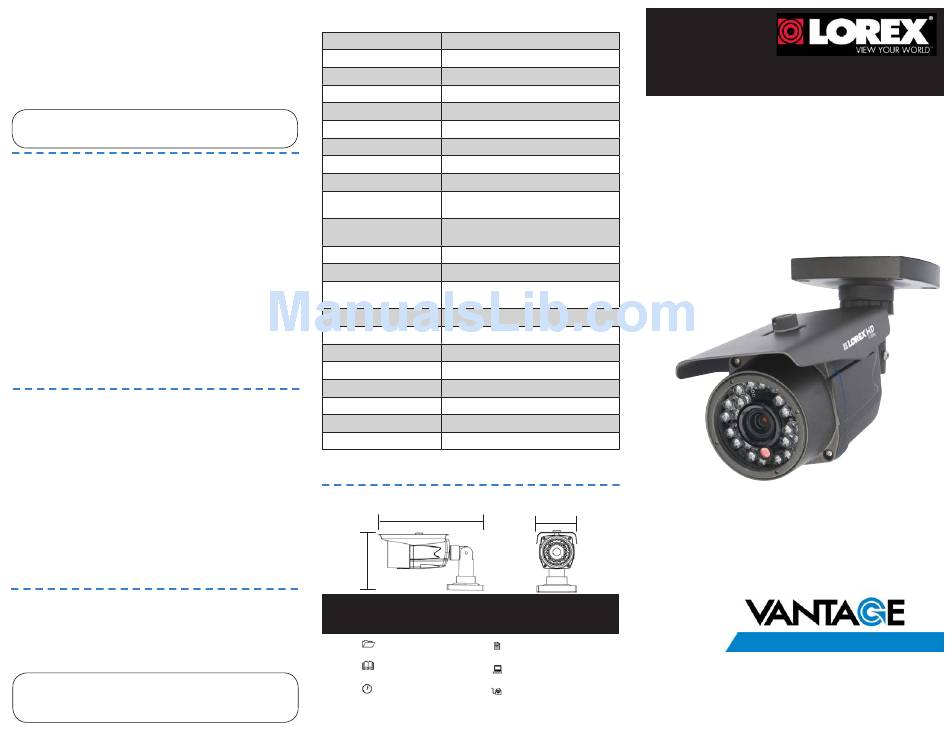

Lorex LBCHD2050 SERIES Quick Start Manual

Contents
• Weatherproof HD-SDI IR bullet camera*
• Mounting screws x 4 / allen key x 1*
• 100ft RG59 BNC / power extension cable*
• Power adapter**
*Model LBCHD2050PK4 is a 4-pack that includes four of the listed items.
** A "4-in-1" Power Adapter that provides power to four cameras may be substituted for four
individual power adapters, depending on product configuration.
WARNING - A REGULATED UL / CSA APPROVED power supply is
REQUIRED for use with this camera. Use of a non-regulated, non-conforming
power supply can damage this product and voids the warranty.
Features
• 1080p (1920x1080) Megapixel CMOS Image Sensor
• Megapixel lens for superior detail
• Automatic infrared filter ensures true color in all lighting
conditions
• ClearNight imaging technology ensures clear night vision and
improves recording efficiency
• Night Vision up to 80ft (25m) away in total darkness and up to
140ft (42m) away in typical night time ambient lighting*
• Dual video outputs for simultaneous HD and standard resolution
video streaming
• Cable pass-through wall-mount bracket protects connection
cables
• Weatherproof (IP66) rated housing for indoor/outdoor
installations**
Disclaimers:
* Stated IR illumination range is based on ideal conditions in total darkness and in typical outdoor
night time ambient lighting. Actual range and image clarity depends on installation location,
viewing area and light reflection / absorption level of object.
** Not intended for submersion in water. Installation in a sheltered location recommended.
Warning/Caution
• Read this guide carefully and keep it for future reference
• Follow all instructions for safe use of the product and handle
with care
• Use the camera within given temperature, humidity and voltage
levels noted in Camera Specifications
• Do not disassemble the camera
• Do not point the camera directly towards the sun or a source of
intense light
• Use only the supplied regulated power supply. Use of a non-
regulated, non-conforming power supply can damage this
product and voids the warranty
• Periodic cleaning may be required. Use a damp cloth only. Do
not use harsh cleaners or aerosol cleaners.
• The supplied extension cable is rated for surface mounting only
• Cables for in-wall / floor-to-floor installations are sold separately

Installation Tips

• Point the camera where there is the least amount of obstructions (i.e. tree
branches)
• Install the camera in a location that is difficult for vandals to reach
• Secure cabling so that it is not exposed or easily cut
• Camera rated for outdoor use. Installation in a sheltered location
recommended
ATTENTION - This camera includes an Auto Mechanical IR Cut Filter. When
the camera changes between Day/Night viewing modes, an audible clicking
noise may be heard from the camera. This clicking is normal, and indicates
that the camera filter is working.

Camera Specifications

Image Sensor 1/2.7" 2 Megapixel CMOS Sensor (16:9)
Video Format NTSC
Effective Pixels H: 1920 V: 1080
Resolution Up to 1920 x 1080p @ 30fps
Scan System Progressive
Sync System Internal
S / N Ratio +39dB
Iris AES
AES Shutter Speed 1/30 ~ 1/100,000 sec.
Min. Illumination 0.5 Lux without IR LED
0 Lux with IR LED
Video Output HD-SDI - 800mVpp @ 75ohm
Composite - 1.0Vpp @ 75ohm
Lens / Lens Type 4mm MP F2.0 / Fixed
FOV (Diagonal) 79°
Termination BNC Type (HD-SDI)
2nd BNC Type (Composite)
IR LED Qty. / Type 24 pieces / 850nm
Night Vision Range* 80ft (25m) / 140ft (42m)
Power Requirement 12V DC ±10%
Power Consumption Max. 500mA (w / IR)
Operating Temp. Range 14° ~ 122°F / –10° ~ 50°C
Operating Humidity Range < 80% RH
Environmental Rating** IP66
Weight (including stand) 0.8lbs / 0.4kg
* Stated IR illumination range is based on ideal conditions in total darkness and in typical outdoor
night time ambient lighting. Actual range and image clarity depends on installation location, viewing
area and light reflection / absorption level of object.
** Not intended for submersion in water. Installation in a sheltered location recommended.
Dimensions
173mm / 6.8"
77mm
3.0"
FOR SUPPORT AND INFORMATION,
VISIT WWW.LOREXTECHNOLOGY.COM
Product Information
User Manuals
Quick Start Guides
Copyright © 2012 Lorex Technologies Inc.
As our products are subject to continuous improvement, Lorex reserves the right to modify product
design, specifications and prices, without notice and without incurring any obligation. E&OE
HIGH DEFINITION 1080P BULLET CAMERA

Quick Start Guide

English Version 2.0
67mm / 2.6"
Specification Sheets
Software Upgrades
Firmware Upgrades
LBCHD2050 SERIES
