AMX PS-POE-AF-TC Quick Start Manual

Overview
The PS-POE-AF-TC (FG423-83) is a 802.3af-compliant Power-over-Ethernet (PoE)
power supply with integral DC Injector (FIG. 1). It provides DC power for one PoE-
equipped device by "Injecting" DC power through the CAT5 Ethernet cable.
The PS-POE-AF-TC supports the IEEE standard PoE pinout: Pins 4&5 Power (+) / Pins
7&8 Power (-). See Pin Connections (on reverse) for details.

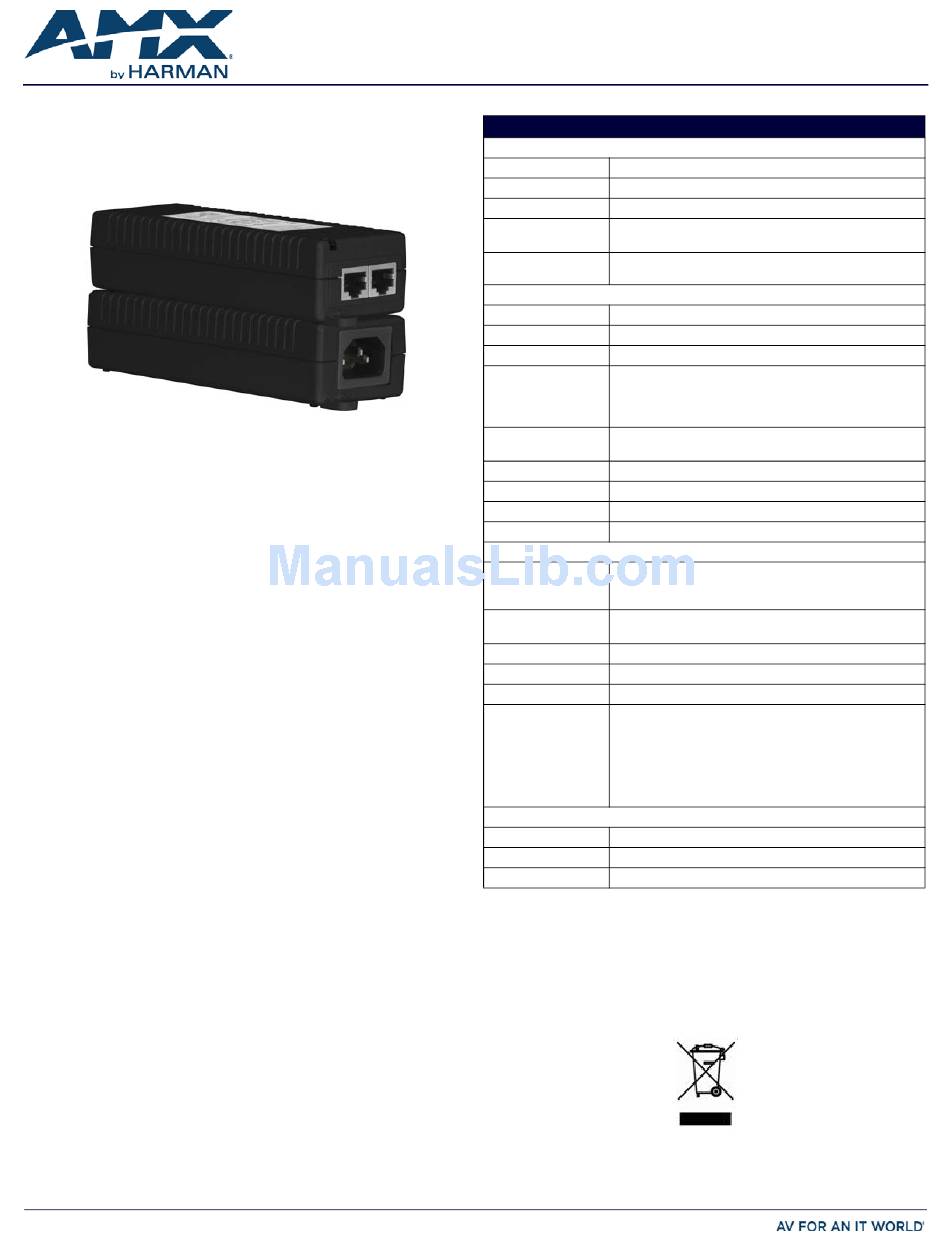

PS-POE-AF-TC POWER-OVER-ETHERNET POWER SUPPLY
FIG. 1
Key features include:
• Power over Ethernet (PoE)
• 10/100/1000 (MbPS) Data Rates
• Self-contained Injector
• 100-240VAC Universal Input
• Desktop Style / Non-vented Case
• IEEE802.3af Compliant Detection, Disconnect, Overload and Over Voltage Control
Function
• Load Diagnostic LED
• UNH IOL Test Report
• Over Load Shutdown and Short Circuit Protection
• Regulated Output With Low Ripple
• Meets Safety Agency Requirements
• Complies with EMI/RFI Regulations

Safety Information

Important Safety Information

• The PS-POE-AF-TC should be connected to PoE networks only, without routing to
an outside network.
• Only qualified personnel can install or remove the PS-POE-AT-TC.
• AC Power Cord Set:
* The power cord must have regulatory agency approval for the specific country
in which it is used (for example, UL, CSA, VDE, etc.)
* The power cord must be a three-conductor type (two current-carrying conduc-
tors and one ground conductor) terminated on one end by an IEC 60320 appli-
ance coupler (for connection to the PS-POE-AT-TC), and on the other end by a
plug containing a ground (earthing) contact.
* The power cord must be rated for a minimum of 250 VAC RMS operation, with a
minimum rated current capacity of 5 amps or a minimum wire gauge of 18 AWG
2
(0.75 mm ).
• A PS-POE-AF-TC installed in Australia requires power cords with a minimum wire
2
gauge of 16 WWG (1.0 mm ).
• The PS-POE-AF-TC DATA IN and DATA & POWER OUT ports are shielded RJ45 data
sockets. They CANNOT be used as Plain Old Telephone Service (POTS) telephone
sockets. Only RJ45 data connectors may be connected to these sockets.
• The AC wall socket-outlet must be near the PS-POE-AF-TC and easily accessible.
You can remove AC power from the PS-POE-AF-TC by disconnecting the AC power
cord from either the wall socket-outlet or the PS-POE-AF-TC appliance coupler.
• The PS-POE-AF-TC "Data In" and "Data & Power Out" interfaces are qualified as
Safety Extra-Low Voltage (SELV) circuits according to IEC 60950-1. These
interfaces may only be connected to SELV interfaces on other equipment.
WARNINGS!
The PS-POE-AF-TC should only be connected to devices compatible with this product.
Using the PS-POE-AF-TC with incompatible devices may cause damage to the device.
Read the installation instructions before connecting the PS-POE-AF-TC to its power
source.
Follow basic electricity safety measures before connecting the PS-POE-AF-TC to its
power source.
A voltage mismatch can cause equipment damage and may pose a f ire hazard. If the
voltage indicated on the label is different from the power outlet voltage, do not
connect the PS-POE-AF-TC to this power outlet.
PS-POE-AF-TC
Product Specif ications
PS-POE-AF-TC SPECIF ICATIONS
Input Specif ications
AC Input Voltage Range: • 100-240VAC
Line Frequency: • 47-63Hz
AC Input Current: • 0.5A MAX at 110-240 VAC
Protection: • Internal Primary Current Fuse
• Inrush Limiting
Input Power Cord: • 150cm IEC power cord terminated with a grounded Edison
plug for AC input
Output Specif ications:
Output Voltage: • 48 VDC Nominal
Output Current: • 375mA
Output Power: • 15.4 Watts guaranteed
Ripple and Noise: • f<500Hz: Vp-p Max
(IEEE802.3af • 500Hz to 150kKHz: Vp-p Max
requirements)
• 150KHz to 500KHz: Vp-p Max
• 500KHz to 1MHz: Vp-p Max
Protection: • Foldback Overcurrent Protection
• Short Circuit Protection
Transient Response: • Meets IEC61000-4-4 (1Kv)
Leakage Current: • Up to 3uA
Efficiency: • 81%
Hold-Up Time: • 18.4msec at 90VAC
General Specif ications:
LEDs: • Yellow (On): power is on and active)
• Green (On): A remote terminal is connected.
• Green (Blinking): Overload state or short circuit
Weight: • Without cord: 0.40 lbs (181.43 g)
• With cord: 0.75 lbs. (340.19 g
Dimensions (HWD): • 5.5" x 2.09" x 1.28" (14 cm x 5.3 cm x 3.25 cm)
Enclosure: • Molded black matte plastic
Cord and Connectors: • Dual RJ45 jacks built into the enclosure
Compliances: • 802.3 AF compliant
• FCC Part 15 Class B
• CE EN55022 Class B and EN55024
• LVD EN 60950-1
• VCCI
• UL/cUL UL60950-1
• GS IEC 60950-1
Environmental Specif ications:
Operating Temp: • 32°F to 104°F (0°C to 40°C)
Storage Temp: • -4° F to +158° F (-20° C to +70° C)
Relative Humidity: • Non-Condensing 10% to 95%
Recycling and Disposal
Disposal instructions for old products. The WEEE (Waste Electrical and Electronic
Equipment) national environmental initiatives have been put in place to ensure that
products are recycled using best available treatment, and recovery and recycling
techniques, to ensure human health and high environmental protection. Your product is
designed and manufactured with high-quality materials and components which can be
recycled and reused. Do not dispose of your old product in your general household
waste bin. Inform yourself about the local separate collection system for electrical and
electronic products marked by this symbol:
Use one of the following disposal options:
1. Dispose of the complete product (including its cables, plugs, and accessories) in
the designated WEEE collection facilities.
2. If purchasing replacement products, return old products (with all components) to
the retailer who should accept it as required by national WEEE legislation.

QUICK START GUIDE

802.3af Compliant PoE Injector
