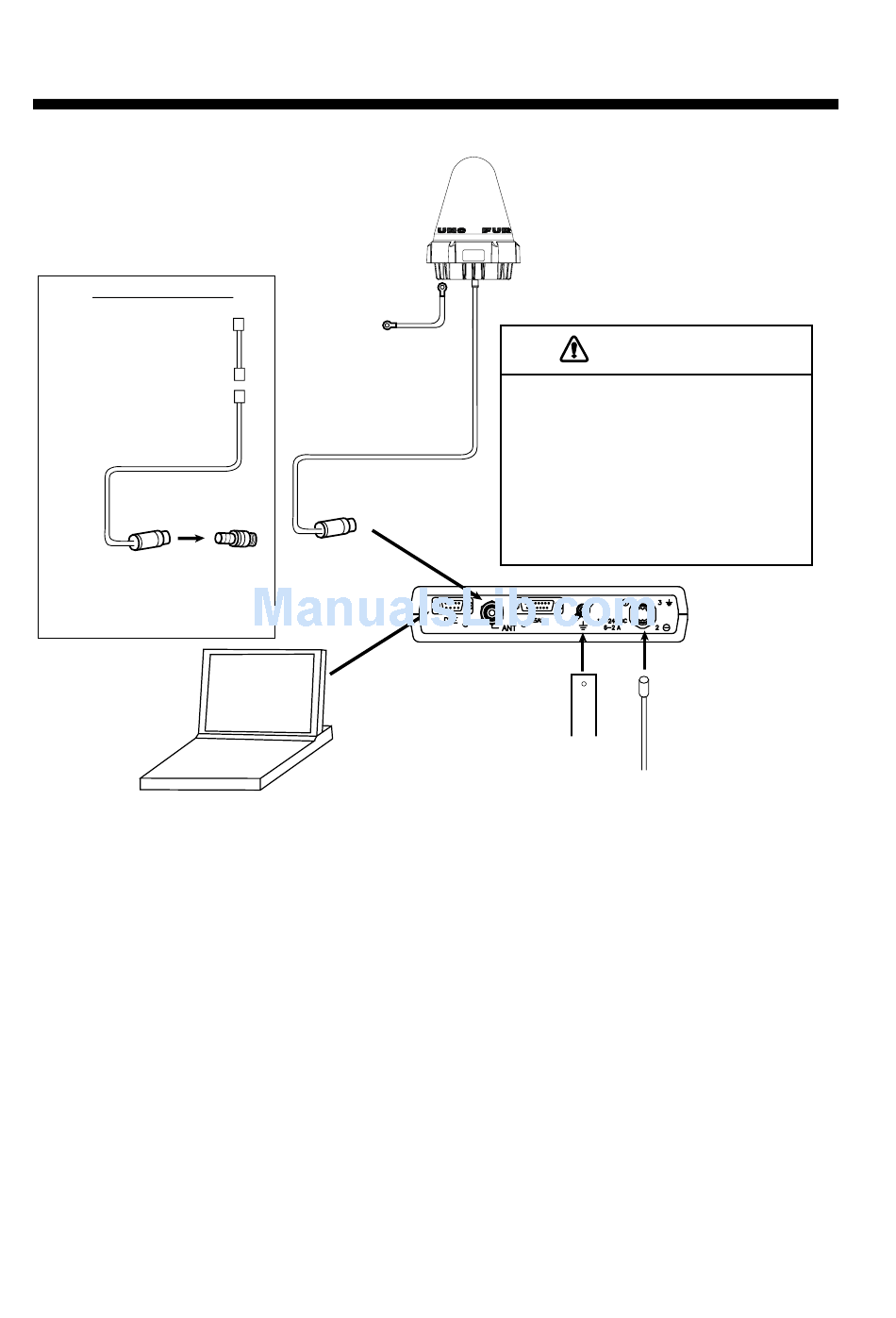

WIRING

For cable w/armor
Cable assy
TPA5FB0.4NJ5FBA-5DFB
0.4 m
5D-FB-CV-NP, 30 m
8D-FB-CV, 50 m
12D-SFA-LITE-CV, 100 m
Connector at one end
TNCP-NJ
Connector N-P-5DFB
N-P-12DSFA
N-P-8DFB
(supplied, local arrange)
0.34 m
Ground wire
RW-4747
TP58A15W-RG58A/U, 15 m
TP5FBAW-5DFB, 30 m
(No armor)
Connector at both ends
17JE-573-10
(5 m, option)
PC

Wiring of FELCOM 16

This unit is shipped with 10 A fuse.
Replace fuse with 5 A when using
the equipment with the power supply
24 VDC.
And then, attach a label for 5 A to the
fuse cover on power cable.
Use of wrong fuse can result in damage
to the equipment.
Copper strap
1.2 m
4
CAUTION
FM-C3FPS-002-035, 3.5 m
Power supply
12-24 VDC
