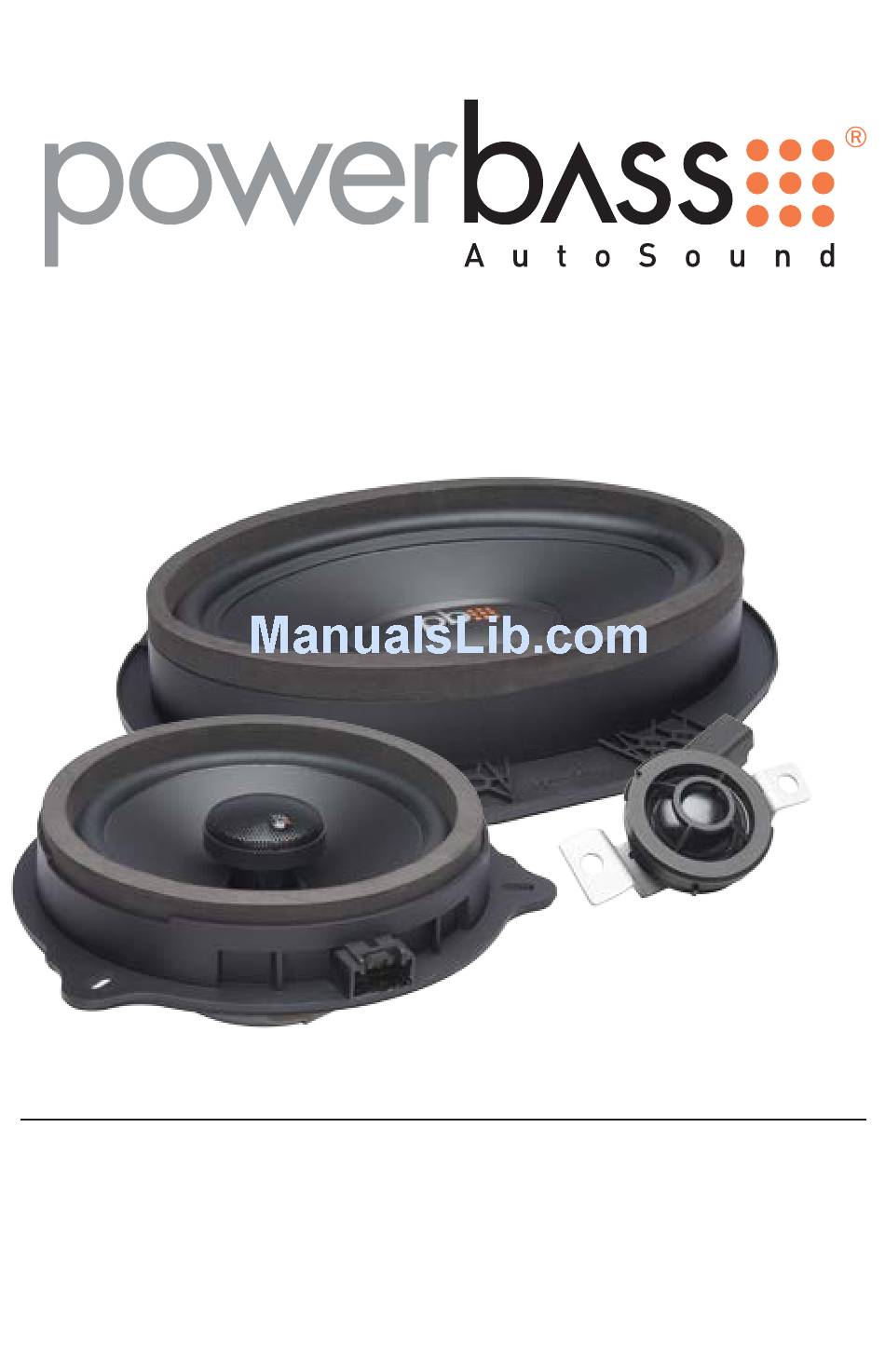

Page 1: Application Guide
OE65C-FD FORD & LINCOLN O.E.M. PLUG & PLAY Application Guide Please read through this manual to familiarize yourself with your new speakers. Should your PowerBass Autosound speaker components ever require service, you will need to have the original dated receipt. - Page 3 170 dB. Please observe all local sound ordinances while listening to your PowerBass Autosound system. PowerBass USA, Inc. accepts no liability for hearing loss, bodily injury, or property damage due to the...
- Page 4 - Nylon OEM Speaker Basket - 1” Silk Dome Tweeter on Coaxials (OE652-FD, OE692-FD) - 1” Silk Dome Tweeter with Diffuser on Components Kits (OE65C-TY, OE69C-TY) - 20 oz. Magnet (OE652-FD, OE65C-FD) 35 oz. Magnet (OE692-FD, OE69C-FD) Fig 1 Fig 2...
-
Page 5: Specifications
Before beginning your installation, thoroughly read this guide and keep it as a reference. It will give you tips on proper placement, wiring, and installation as well as how to obtain the best sound from the PowerBass speakers you have selected. Woofer... -
Page 6: Preparing For Installation
Installation of PowerBass Autosound Speakers requires experience with a variety of mechanical and electrical procedures. This manual only provides general installation and operation instructions. If you have any reserva- tions about your installation skills or lack of the proper tools, please contact your local PowerBass Autosound dealer for assistance. -
Page 7: Installation Precautions
INSTALLATION PRECAUTIONS NOTE: Proceed only if you are a qualified installer otherwise; let your dealer do it. • Always wear protective eyewear when using tools. • Turn off all stereo and other electrical devices before you begin. • Disconnect the (-) negative lead from your vehicle’s battery. •... - Page 8 6X9” SPEAKER INSTALL (OE692-FD, OE69C-FD) 1. After removing the door panel, unplug speaker plug 2. To remove the factory speaker unscrew the 4 x 7mm from factory speaker. screws (do not discard these screws you will need them to install your new speaker).
- Page 9 6.5” SPEAKER INSTALL (OE652-FD, OE65C-FD) 1. After removing the door panel, unplug speaker plug 2. To remove the factory speaker, unscrew the 3 x 7mm from factory speaker. bolts (do not discard these screws you will need them to install your new speaker) 3.
- Page 10 DOOR TWEETER INSTALL (OE69C-FD, OE65C-FD) 1. Remove door panel or unclip tweeter cover/housing to 2. Unclip the factory tweeter from its housing. gain access to the factory tweeter. 3. Now clip-in your new tweeter making sure it’s aligned 4. Locate the 2-pin tweeter adapter plug and connect correctly and fully secure.
- Page 11 “A” PILLAR TWEETER INSTALL (OE69C-FD, OE65C-FD) 1. Remove the A pillar from the vehicle to gain access to 2. Un-screw and remove the factory tweeter. (Do not dis- the factory tweeter. card the screws you will need them to install your new tweeter).
- Page 12 LIST OF COMPATIBLE VEHICLES OE652-TY | OE65C-TY (Speakers may fit in newer make applications other than those listed below - Please consult your Authorized PowerBass Dealer for more details or visit www.powerbassusa.com). Applications FORD F-150 REAR LOCATION 2015-UP FORD SUPERDUTY REAR LOCATION 2017-UP...
- Page 13 LIST OF COMPATIBLE VEHICLES OE692-TY | OE69C-TY (Speakers may fit in newer make applications other than those listed below - Please consult your Authorized PowerBass Dealer for more details or visit www.powerbassusa.com). Applications FORD F-150 FRONT LOCATION 2015-UP FORD SUPERDUTY FRONT LOCATION 2017-UP...
- Page 14 Please call (909) 923-3868 for PowerBass Customer Service. You must obtain an RA# (Return Authorization Num- ber) to return any product to PowerBass. The RA number must be prominently marked on the outside of the shipping carton or the delivery will be refused. Please pack your return carefully; we are not responsible for items damaged in shipping.
- Page 16 PowerBass Autosound – A division of PowerBass USA, Inc. 2133 S. Green Privado – Ontario, CA 91761 Tel. (909) 923-3868 – Fax (909) 923-8048 www.powerbassusa.com...
