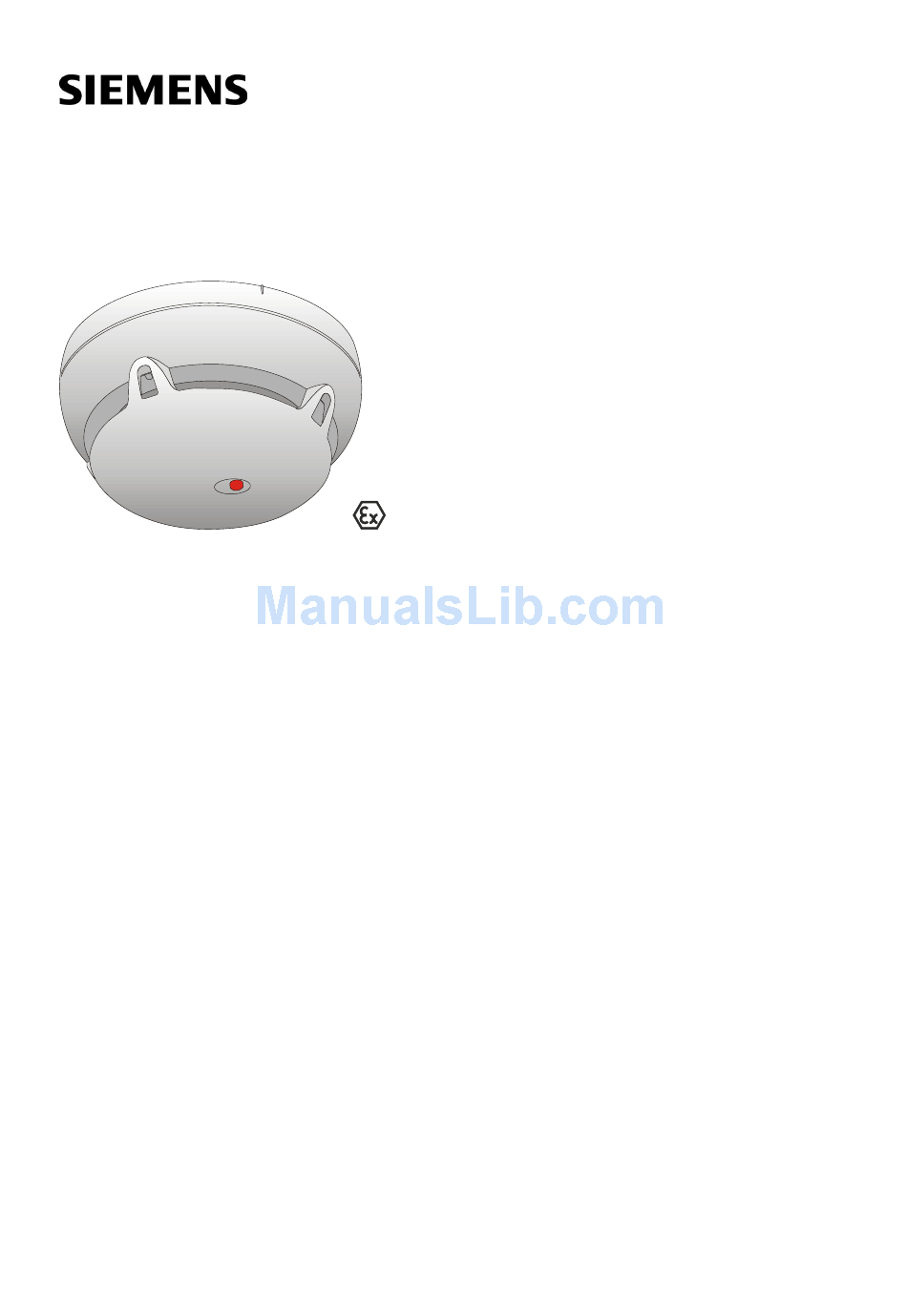

- Page 1 OOH740-A9-Ex Automatic fire detector Technical Manual Building Technologies A6V10367521_h_en_-- 2015-02-02 Control Products and Systems...
- Page 2 Legal notice Legal notice Technical specifications and availability subject to change without notice. © Siemens Switzerland Ltd, 2012 Transmittal, reproduction, dissemination and/or editing of this document as well as utilization of its contents and communication thereof to others without express authorization are prohibited.
-
Page 3: Table Of Contents
Standards and directives complied with ............18 Release Notes ....................18 Structure and function ................. 19 Setup......................19 3.1.1 Point detector OOH740-A9-Ex with ASAtechnology ......19 3.1.2 Features of fire detection functionality ..........21 3.1.3 Features of the 'Technical Ambient Supervision Message'....22 3.1.4... - Page 4 Accessories ....................28 3.3.1 Addressable detector base FDB221 ..........28 3.3.2 Collective detector base FDB201 ............. 28 3.3.3 Flat, addressable detector base FDB222 ......... 28 3.3.4 Flat, collective detector base FDB222 ..........29 3.3.5 Base attachment FDB291 ..............29 3.3.6 Base attachment wet FDB295 ............
- Page 5 Performance check ..................60 7.1.1 'Technical Ambient Supervision Message' performance check ..60 Testing detectors .................... 61 Specifications ....................62 Technical data for OOH740-A9-Ex ..............62 8.1.1 General (irrespective of the detector line) ......... 62 8.1.2 Detector lines ................... 63 Dimensions ....................
- Page 6 Building Technologies A6V10367521_h_en_-- Fire Safety 2015-02-02...
-
Page 7: About This Document
Goal and purpose This document contains all the information relating to the automatic fire detector OOH740-A9-Ex. Following the instructions consistently will ensure that the product can be used safely and without any problems. This document is aimed at users who are planning, installing, commissioning,... - Page 8 The automatic fire detector OOH740-A9-Ex must be protected against electrostatic charging, along with all its accessory parts. Intended use The automatic fire detector OOH740-A9-Ex may only be used as follows: On an C-NET-Ex detector line in a fire detection installation FS720 or in collective mode.
- Page 9 About this document Applicable documents Target groups The information in this document is intended for the following target groups: Target group Activity Qualification Product Manager Is responsible for information passing Has obtained suitable specialist training between the manufacturer and regional for the function and for the products.
- Page 10 About this document Applicable documents Conventions for text marking Markups Special markups are shown in this document as follows: ⊳ Requirement for a behavior instruction Behavior instruction with at least two operation sequences – Version, option, or detailed information for a behavior instruction ⇨...
-
Page 11: Applicable Documents
A6V10333771 Technical Manual Line adapter (Ex) FDCL221-Ex A6V10367523 Installation Automatic fire detector OOH740-A9-Ex A6V10371417 Data sheet Automatic fire detector OOH740-A9-Ex A6V10414910 Technical manual Zone module, external powered FDCI723 A6V10443621 Modernizing fire detection installations with multiple protocol detectors in potentially explosive atmospheres Please also observe the documentation for your fire detection system. -
Page 12: Technical Terms, Abbreviations, And Formula Symbols
About this document Technical terms, abbreviations, and formula symbols 1.3 Technical terms, abbreviations, and formula symbols Term Explanation Alarm indicator Advanced Signal Analysis Product version C-NET Addressed detector line C-NET-Ex Addressed detector line in a potentially explosive atmosphere downstream of a line adapter (Ex) FDCL221-Ex K-MK Maximum current connection factor on a collective detector line Light-emitting diode... -
Page 13: Revision History
About this document Revision history 1.4 Revision history The reference document's version applies to all languages into which the reference document is translated. The first edition of a language version or a country variant may, for example, be version 'd' instead of 'a' if the reference document is already this version. The table below shows this document's revision history: Modification index Edition date Brief description... -
Page 14: Safety
Safety Safety instructions 2 Safety WARNING Contradictory safety instructions Risk of explosion caused by disregarding safety instructions ● Should safety instructions relating to explosion protection contradict other safety instructions, please observe the safety instructions relating to explosion protection. 2.1 Safety instructions The safety notices must be observed in order to protect people and property. -
Page 15: Safety Regulations For The Method Of Operation
2.2 Safety regulations for the method of operation National standards, regulations and legislation Siemens products are developed and produced in compliance with the relevant European and international safety standards. Should additional national or local safety standards or legislation concerning the planning, mounting, installation,... - Page 16 Safety Safety regulations for the method of operation Electrical installations WARNING Electrical voltage Electric shock ● Work on electrical installations may only be carried out by qualified electricians or by instructed persons working under the guidance and supervision of a qualified electrician, in accordance with the electrotechnical regulations.
- Page 17 Disregard of the safety regulations Before they are delivered, Siemens products are tested to ensure they function correctly when used properly. Siemens disclaims all liability for damage or injuries caused by the incorrect application of the instructions or the disregard of danger warnings contained in the documentation.
-
Page 18: Standards And Directives Complied With
We are grateful for any suggestions for improvement. 2.3 Standards and directives complied with A list of the standards and directives complied with is available from your Siemens contact. 2.4 Release Notes Limitations to the configuration or use of devices in a fire detection installation with a particular firmware version are possible. -
Page 19: Structure And Function
DC1192 or FDCIO223 or a zone module FDCI723 and a safety barrier SB2 or Area not at risk Ex area FDCL221-Ex C-NET C-NET-Ex FC72x Use of several point detectors OOH740-A9-Ex on the C-NET-Ex downstream of a line adapter (Ex) FDCL221-Ex Building Technologies A6V10367521_h_en_-- Fire Safety 2015-02-02... - Page 20 Structure and function Setup Setup of the point detector The point detector OOH740-A9-Ex has two optical and two thermal sensors. 1 Heat sensors 3 Forward scatterer 2 Backward scatterer 4 Labyrinth The detector has a sophisticated opto-electronic measuring chamber with two optical transmitters, an optical receiver, and two thermal sensors.
-
Page 21: Features Of Fire Detection Functionality
Structure and function Setup 3.1.2 Features of fire detection functionality The point detector OOH740-A9-Ex has the following features in terms of its fire detection functions: Dynamic influence on the parameter sets Pattern recognition Real time interpretation of the situation Process- and time-controlled switchover of the parameter sets Signal processing is based on ASAtechnology (ASA = Advanced Signal Analysis). -
Page 22: Features Of The 'Technical Ambient Supervision Message
Structure and function Setup Switching over the parameter set In addition to selecting the parameter set, the point detectors with ASAtechnology enable time- or process-controlled switching over of the parameter sets (Manned/Unmanned switchover). The time- or process-controlled switching over of parameter sets allows the detector to be used in places where the situation changes significantly on a regular basis (e.g. -
Page 23: Details For Ordering
2 Technical Ambient Supervision Message [➙ 42] 3.1.4 Details for ordering Type Order no. Designation OOH740-A9-Ex S54329-F8-A1 Multisensor fire detector 3.1.5 Reference to technical manual You will find this symbol on all devices designed for use in areas at risk of explosion. -
Page 24: Function
Structure and function Function Product version on the product label and the type plate Details of the product version can be found after the device order number: Example of a product label with details of the product version Depending on the product and various approvals, the product labels may differ in terms of the information type and layout. -
Page 25: Danger Levels
"response threshold"; moreover, the smoke density progression is observed over a longer period of time and assessed by the algorithms. The automatic fire detector OOH740-A9-Ex can transmit the following danger levels to the control panel: Danger level... -
Page 26: Internal Alarm Indicator
Connection for external alarm indicators An external alarm indicator FDAI9x-Ex can be connected to the point detector OOH740-A9-Ex. On the C-NET-Ex, it is possible to connect external alarm indicator to any point detector. The trigger for activating the alarm indicator can be programmed at the control panel. -
Page 27: Test Mode
Function 3.2.8 Test mode For testing purposes the point detector OOH740-A9-Ex can be set to test mode. In test mode the point detector reacts faster and with a higher sensitivity level. Physical testing: The optical function part can be tested with the test gas REF8 or REF8-S. -
Page 28: Accessories
Structure and function Accessories 3.3 Accessories 3.3.1 Addressable detector base FDB221 For the mounting of point detectors For the recess-mounted cable entry For surface-mounted cable entry, up to 6 mm cable diameter Orange terminal block Order no. FDB221: A5Q00001664 See also 2 Collective and addressable detector base FDB201/221 [➙... -
Page 29: Flat, Collective Detector Base Fdb222
Structure and function Accessories 3.3.4 Flat, collective detector base FDB222 For the mounting of point detectors For the recess-mounted cable entry Directly attached to the mounting surface Collective Gray terminal block Order no.: S54319-F3-A1 See also 2 Flat detector base FDB202/222 [➙ 48] 3.3.5 Base attachment FDB291 For the surface-mounted cable entry, as of 6 mm... -
Page 30: Sealing Element Fdbz295
Base attachment wet FDB295 Order no.: BPZ:4864330001 See also 2 Designation plate DBZ1193A [➙ 52] 3.3.10 Detector locking device FDBZ293 To protect the point detector OOH740-A9-Ex against theft Order no.: A5Q00005035 See also 2 Detector locking device FDBZ293 [➙ 51] Building Technologies... -
Page 31: Dummy Detector Fdx291
External labelling for identification Does not open the contact in the detector base Order no.: S54319-F2-A1 3.3.12 Detector dust cap FDZ291 To protect the point detector OOH740-A9-Ex from dust Order no.: A5Q00004814 See also 2 Detector dust cap FDZ291 [➙ 53] 3.3.13... -
Page 32: Line Adapter (Ex) Fdcl221-Ex
Structure and function Accessories 3.3.15 Line adapter (Ex) FDCL221-Ex For operating peripheral devices on the C-NET-Ex in areas at risk of explosion Electrical isolation of detector lines in an area at risk of explosion from detector lines in an area not at risk of explosion Mounting on a U-rail TS35 or in a separate housing For details, see document A6V10333771... -
Page 33: Planning
4 Planning 4.1 Compatibility Compatible with control panels that support the C-NET-Ex detector line. Additionally, the point detector OOH740-A9-Ex can be operated on a collective detector line. The table below shows the compatibility of the point detector with various control... - Page 34 Planning Ambient features Room geometry High ceilings, complex room shapes or well ventilated rooms have a complex room geometry. This aggravates early fire detection, as it is difficult for the fire phenomenon to reach the fire detector. An office room with normal ceiling height has a simple room geometry.
-
Page 35: Parameter Sets For Addressed Operation
'Suppression (5)' parameter set. Default (0): If no parameter set is selected, the point detector automatically uses a preset parameter set. In the case of the point detector OOH740-A9-Ex, this is the parameter set 'High Compensation (7)'. Balanced (4): The 'Balanced' parameter set reveals a balanced response behavior regarding reaction to fires and robustness to deceptive phenomena. -
Page 36: Use
Planning Parameter sets for addressed operation High Sensitive Fast (9): This parameter set is suited for applications requiring very high sensitivity levels. It reveals a significantly higher optical and thermal sensitivity than 'Fast Response'. This parameter set is also suited for applications that can otherwise only be covered with special detectors. -
Page 37: Specification
Planning Parameter sets for addressed operation 4.3.1.3 Specification The following table shows the properties of the parameter sets for the point detector in sensor mode 0: Name Optical Thermal Typ. Response Sensitivity, Sensitivity, Static Differential activation Differential time open fire smoldering fire activation temperature... -
Page 38: Sensor Mode 1 - Heat Detector
Planning Parameter sets for addressed operation 4.3.2 Sensor mode 1 – Heat detector 4.3.2.1 Description This sensor mode is especially suited for applications where the point detector should only respond thermally. Parameter set Download 1 Download 2 Default parameter set Application-specific parameter sets that can be loaded on site (depending on the control panel) Notes on the designations A1 and B... -
Page 39: Specification
Planning Parameter sets for addressed operation 4.3.2.2 Specification Name Operating temperature Static activation Differential activation Differential activation typ. / max. temperature temperature possible from: [°C] [°C] ∆T [K] [°C] 25 / 50 60 °C rate of rise 40 / 65 80 °C rate of rise 25 / 50 –... -
Page 40: Sensor Mode 2 - Smoke Detector
Planning Parameter sets for addressed operation 4.3.3 Sensor mode 2 – Smoke detector 4.3.3.1 Description This sensor mode should be selected if fast temperature changes that are not caused by fire may occur (e.g. in the case of radiant heaters, hot engines). In this sensor mode the detector only reacts optically;... -
Page 41: Parameter Sets For Collective Operation
4.4.1 Replacing existing AlgoRex point detectors The point detector OOH740-A9-Ex can replace a range of point detectors from the AlgoRex range. The following table provides an overview of which parameter set needs to be set in order to replace a particular detector type. -
Page 42: Default Settings
The detector operates in the default parameter set as long as the control panel has not assigned a valid parameter set to the detector. The following table shows the default parameter set for the point detector OOH740-A9-Ex in the various sensor modes: Fire detector Default parameter set... -
Page 43: Ambient Conditions
Planning Technical Ambient Supervision Message 4.6.1 Ambient conditions In markets where the use of the 'Technical Ambient Supervision Message' is permitted, the point detector can be positioned above or near objects which require the ambient temperature to be monitored in order to prevent damage. 'Technical Ambient Supervision Message' mode detects an increase or decrease in temperature. -
Page 44: Temperature Monitoring
Planning Technical Ambient Supervision Message 4.6.1.1 Temperature monitoring Temperature monitoring compares the current measured temperature with a preset threshold value. You can select the following comparisons: Temperature exceeded: Alarming takes place when the measured temperature exceeds the set threshold value. Temperature undershot: Alarming takes place when the measured temperature undershoots the set threshold value. -
Page 45: Mounting/Installation
Mounting/Installation Technical Ambient Supervision Message 5 Mounting/Installation WARNING Electrostatic charging when installing devices in an area at risk of explosion Risk of explosion ● Only install devices if the atmosphere in the mounting area is not at risk of explosion. ●... -
Page 46: Required Space
Mounting/Installation Required space 5.1 Required space Upon insertion of the detector, the detector base is stressed by compression, tension and torsion. The fixing must thus be designed accordingly. Detector bases must be placed flat on the ceiling. Avoid mounting on steps, concrete ribs, etc. Install the detector base directly on the recessed box, or together with a base attachment, when the supply lead is surface-mounted and the cable diameter is more than 6 mm. -
Page 47: Collective And Addressable Detector Base Fdb201/221
Mounting/Installation Collective and addressable detector base FDB201/221 5.2 Collective and addressable detector base FDB201/221 1. Route the recess-mounted cable or surface-mounted cable with an outer diameter of max. 6 mm directly into the detector base. 2. Ensure that the cables are flat on the bottom of the detector base. This way, they do not pose an obstruction when inserting the detector. -
Page 48: Flat Detector Base Fdb202/222
Mounting/Installation Flat detector base FDB202/222 5.3 Flat detector base FDB202/222 The cables are routed recess-mounted through detector base FDB202/222. The cables must be placed flat on the bottom of the detector base so that they do not hamper insertion of the detector. FDB202/FDB222 min. -
Page 49: Base Attachment Fdb291
Mounting/Installation Base attachment FDB291 5.4 Base attachment FDB291 For cable diameters > 6 mm, the base attachment FDB291 is required. The required cable entries must be broken out on the base attachment FDB291. max. Ø 21mm max. 90 min. 46 FDB291 FDB2x1 FDB2x2... -
Page 50: Sealing Element Fdbz295
FDBZ295 FDB2x1 FDB2x1-AA 4 mm FDOOT241-A9-Ex OOH740-A9-Ex Mounting of sealing element FDBZ295 Mounting w The kit is installed by hand 1. Fold the sealing lip back. 2. Insert the detector base into the sealing element. Make sure that the opening in the detector base lines up with the marking and opening on the rubber base. -
Page 51: Detector Locking Device Fdbz293
Mounting/Installation Detector locking device FDBZ293 6. Turn the point detector to the right to screw it firmly into the detector base. 7. Screw the supplied set screw into the point detector or alarm sounder until it no longer protrudes. This step is not needed when using detector locking device FDBZ293. -
Page 52: Designation Plate Fdbz291
Mounting/Installation Designation plate FDBZ291 5.7 Designation plate FDBZ291 To provide the detector with a location address, the address is inscribed on the designation plate FDBZ291 and placed on the detector base or base attachment. FDBZ291 FDB291 FDBZ291 FDB2x1 FDB2x2 Mounting of designation plate FDBZ291 1 Designation plate FDBZ291 3 Identification 2 Base attachment FDB291... -
Page 53: Detector Dust Cap Fdz291
Mounting/Installation Detector dust cap FDZ291 5.9 Detector dust cap FDZ291 During the construction phase the detector may be covered with a detector dust cap FDZ291 to protect it from dust and dirt. FDZ291 Mounting / removal of detector dust cap FDZ291 1 Detector 2 Detector dust cap 3 Remove the detector dust cap either manually by turning it to the right, or by... -
Page 54: Connecting The Detector Base
Mounting/Installation Connecting the detector base 5.10 Connecting the detector base WARNING Connecting non-approved devices in an intrinsically safe circuit Risk of explosion ● In an intrinsically safe circuit, only connect equipment that conforms to country-specific regulations and is approved for ignition protection category 'Intrinsic safety Ex ia' or 'Intrinsic safety Ex ib'. -
Page 55: Connection Terminal Dbz1190-Ab
Mounting/Installation Connecting the detector base The detector bases contain a spring clip. Permissible wire/strand cross-section 0.28...1.5 mm². 30° Cable entry in detector base 1 The conductor loops must be placed 5 Contact for test tips flat in the base bottom. 2 The conductor loops must not be 6 Turn the screwdriver 90°... -
Page 56: Connection Diagram (C-Net-Ex)
Mounting/Installation Connecting the detector base 5.10.2 Connection diagram (C-NET-Ex) WARNING Connecting cables in environments at risk of explosion Risk of explosion ● Only connect cables in an environment that is not at risk of explosion. The following applies to C-NET-Ex detector lines: Only stubs are permitted. -
Page 57: Connection Diagram (Collective)
Mounting/Installation Connecting the detector base 5.10.3 Connection diagram (collective) WARNING Connecting cables in environments at risk of explosion Risk of explosion ● Only connect cables in an environment that is not at risk of explosion. The following applies to collective detector lines: The detector line must start with a safety barrier SB2 or SB3. - Page 58 Mounting/Installation Connecting the detector base Values for the parameter set resistance R Parameter set ∞ Sensitive (when replacing a point detector DO1101-Ex) 18 kΩ A1R (when replacing a point detector DT1101A-Ex) 10 kΩ BR (when replacing a point detector DT1102A-Ex) Assignment of terminals in detector base Building Technologies A6V10367521_h_en_--...
-
Page 59: Commissioning
Commissioning 6 Commissioning WARNING Using the line tester FDUL221 during commissioning Risk of explosion ● Only operate the line tester FDUL221 in the area that is not at risk of explosion. ● If peripheral devices on an C-NET-Ex detector line are to be read into the line tester FDUL221, make sure there is a line adapter (Ex) FDCL221-Ex between the line tester and the peripheral devices. -
Page 60: Maintenance / Repair
Maintenance / Repair Performance check 7 Maintenance / Repair 7.1 Performance check The selftest automatically subjects the detectors to an extensive electrical performance check. Nonetheless, a manual function check needs to be performed on the detectors regularly. The manual function check can be undertaken using the following tools: Test gas Hot air Recommendation:... -
Page 61: Testing Detectors
Risk of explosion ● Testers RE6 and RE7T must only be operated in the area not at risk. Testing of the point detector OOH740-A9-Ex can be carried out with one or more of the following tools: Detector tester RE6 Test gas –... -
Page 62: Specifications
Specifications Technical data for OOH740-A9-Ex 8 Specifications 8.1 Technical data for OOH740-A9-Ex 8.1.1 General (irrespective of the detector line) Device labeling IECEx Scheme: Ex ia IIC T4 Ga, Ta = -35…70 °C Directive 94/9/EC: II 1 G Ex ia IIC T4 Ga, Ta = -35…70 °C... -
Page 63: Detector Lines
Specifications Technical data for OOH740-A9-Ex Ambient conditions Operating temperature -25…+70 °C Storage temperature -30…+75 °C Air humidity ≤95 % rel. Protection categories (IEC 60529): Base FDB2x1, FDB2x1-AA, FDB2x2 IP43 with base attachment FDB291 IP44 Base FDB2x1 with sealing kit FDBZ295... - Page 64 Specifications Technical data for OOH740-A9-Ex Collective detector line You will find more information in document 001204. Detector line Operating voltage DC 14...28 V Maximum current connection factor 1.25 Quiescent current at maximum current 65…125 μA connection factor Surge current at maximum current 180 μA...
- Page 65 Specifications Technical data for OOH740-A9-Ex Collective maximum current connection factor/Alarm verification The default parameter set is set in all fire detectors in their as-delivered state. Use as Installed Parameter set name K-MK Alarm verification permitted on control resistance value panel...
-
Page 66: Dimensions
Specifications Dimensions 8.2 Dimensions FDB201/FDB221 FDB202/FDB222 Dimensions with detector bases at distance or directly attached 1 Surface-mounted cable entry: 3 Detector base directly attached to cable diameter max. 6 mm the mounting surface 2 Detector base at a distance 8.3 Environmental compatibility and disposal This equipment is manufactured using materials and procedures which comply with current environmental protection standards as best as possible. -
Page 67: Annex
Annex 9 Annex PTB numbers for older safety barriers Device name PTB number Safety barrier SB2 PTB 01 ATEX 2053 X Safety barrier SB3 PTB 01 ATEX 2088 X Building Technologies A6V10367521_h_en_-- Fire Safety 2015-02-02... -
Page 68: Glossary
Glossary Glossary Associated electrical equipment Electrical equipment that contains both energy- limited and non-energy-limited circuits, and is structured in such a way that the non-energy- limited circuits cannot have a negative effect on any of the energy-limited circuits. Qualified person A qualified person is someone who, as a result of their professional training and current occupational activities, has the knowledge... -
Page 69: Index
Index Index Download Document, 7 Approvals, 62, 63 Download center, 7 ASAtechnology, 19, 21 Download center Link, 7 URL, 11 CE marking, 62 Collective behavior Degraded mode operation, 27 Environmental compatibility, 66 Collective detector lines Danger levels, 25 Product version, 23 Compatibility, 33, 59 EU directives, 62 Connection... - Page 70 Index Packaging label Product version, 23 Parameter set Detection behavior of the point detector, 24 Parameter sets Addressed, 35 Collective, 41 Product label Product version, 23 Recess-mounted supply lead Detector base FDB202/222, 48 Recycling, 66 Renovation mode Major renovation work, 26 Replacing point detectors, 41 Service Customer Support Center, 7...
- Page 71 Index Building Technologies A6V10367521_h_en_-- Fire Safety 2015-02-02...
- Page 72 Issued by © Siemens Switzerland Ltd, 2012 Siemens Switzerland Ltd Technical specifications and availability subject to change without notice. Building Technologies Division International Headquarters Gubelstrasse 22 CH-6301 Zug Tel. +41 41-724 24 24 www.siemens.com/buildingtechnologies Document ID A6V10367521_h_en_-- Manual FD720 Edition...
