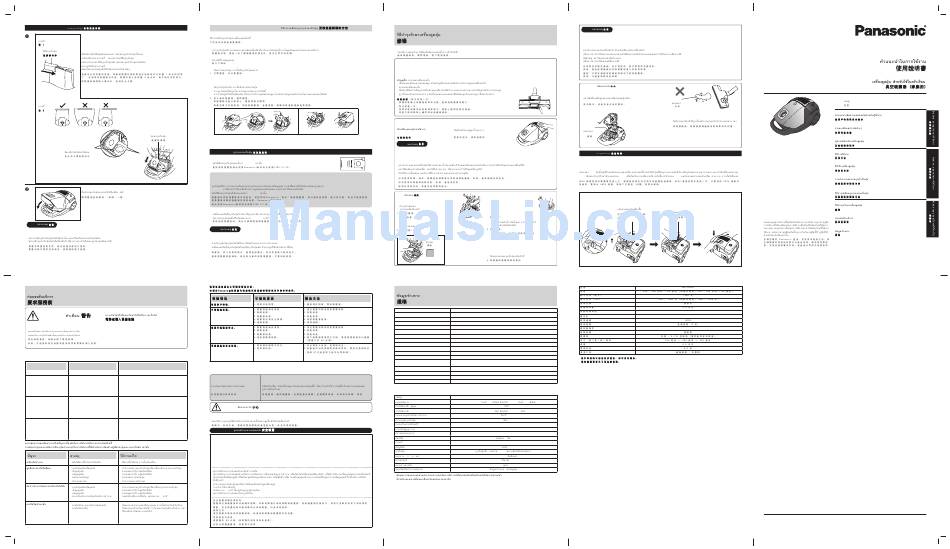

Panasonic MC-CG520 Operating Instructions

Installing the Cloth Dust Bag/ /
In order to avoid any dust leakage, please ensure that all the edges of Cloth Dust
Figure 1
Bag are aligned as shown in the Figure 1 before assembling the Bag Fastener.
1
After assembling the Bag Fastener, any opening of Cloth Dust Bag should not be
observed as shown in the Figure 2.
Bag Fastener
Insert the Bag Collar into the catches until fully locked.
1
2
Figure 2
2
Bag Collar
Fully locked to catches
Close the Dust Cover until "click" sound can be heard.
" "
NOTE/ /
• Cloth Dust Bag can be washed by hand only. Please hang it in a shady spot until it is completely dry.
Do not wash Cloth Dust Bag in washing machine. This can cause damage on Bag Collar.
•
•
12
BEFORE REQUESTING SERVICE
Electrical Shock or Personal Injury Hazard
WARNING/ /
Disconnect the electrical supply before service or clean the appliance.
Failure to do so could result in electrical shock or personal injury from the appliance if it suddenly starts.
Review this chart to find do-it-yourself solutions for minor performance problems.
Any service needed, other than those described in these Operating Instructions, should be performed by an authorised
Panasonic service representative.
PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION
The appliance is not operating. 1. Unplugged at socket outlet. 1. Plug in firmly, turn on the appliance.
Poor job of dirt pick-up. 1. Full or clogged Dust Bag. 1. Empty the Cloth Dust Bag or replace the Paper
2. Clogged nozzle. Dust Bag.
3. Clogged Hose. 2. Check for clogs.
4. Hose not inserted fully. 3. Check for clogs.
5. Dirty Filters. 4. Check Hose Connection.
5. Clean the Filter.
The appliance stops during 1. Full or clogged Dust Bag. 1. Empty the Cloth Dust Bag or replace the Paper
operation. 2. Clogged nozzle. Dust Bag.
3. Clogged Hose. 2. Check for clogs.
4. Thermal protector tripped. 3. Check for clogs.
4. Unplug the appliance, allow to cool and thermal
protector will reset itself (Wait about 60 minutes).
Mains Lead not reacting 1. Mains Lead has wound onto the 1. Pull it out two or three meters and wind it up
completely. spool unevenly. again.
2. Mains Lead is twisted. 2. Repeatedly pull out and wind up the Mains
Lead while pressing the Cord Rewind Button
(do not use excessive force when pulling the
Mains Lead out).
1. 1.
1. 1.
2. 2.
3. 3.
4. 4.
5. 5.
1. 1.
2. 2.
3. 3.
4. 4. ( 60 )
1. 1.
2. 2. (
)
16
HOW TO REPLACE YOUR PAPER DUST BAG/ /
Replace the Dust Bag with the new one in the following cases:
– When the Dust Bag is full. For more details on the VAC Gauge, see identifi cation of main parts.
–
–
– When suction power has dropped.
–
–
1. Open the Dust Cover, and then pull out the Dust Bag.
1.
2. Place a new Dust Bag, and then close the Dust Cover.
If the Dust Bag is not properly installed, the dust cover cannot be closed.
If suction power does not return, check for blockages in Hose, Metallic Wand, Nozzles and Pre-motor Filter.
2.
1. 2.
Paper dust bag/ /
■ Use only a genuine Panasonic replacement bag TYPE C-17H.
■ Panasonic TYPE C-17H
■
TYPE C-17H
The paper dust bag is a mechanical component of the vacuum cleaner. Use of a part other than a genuine Panasonic replacement
of the correct type will adversely affect the cleaning performance of the vacuum cleaner and can cause the motor to burn out.
Use only a genuine Panasonic replacement bag TYPE C-17H.
Panasonic
Panasonic TYPE C-17H
■ If you use a different dust bag Panasonic, be sure to read the instructions on the package and use it correctly.
■
Panasonic
■
NOTE/ /
• Store the paper dust bag in their package out of the reach of children and away from exposure to direct sunlight.
• Change and install a new paper dust bag whenever the paper dust bag is full. Do not re-use the old paper dust bag.
•
•
•
•
13
If the problem remains after checking. Return the appliance (with the Hose, Metallic Wand and Floor Nozzle) to the
store where you purchased it. Do not attempt to repair it by yourself.
( )
CAUTION/ /
• During operation, the temperature of the appliance body, Mains Lead and Mains Lead Plug may increase to a certain degree.
This is not abnormal.
•
•
Safety Device/ /
• When the safety device activates
The safety device trips and the motor stops in order to prevent overheating of the motor when the appliance is operated
continuously with a full Dust Bag, when garbage is clogging the nozzle or Hose or when the appliance is operated for long
periods with an obstructed intake or exhaust.
• What to do...
Empty the Cloth Dust Bag or replace the Paper Dust Bag or remove the obstruction in the nozzle or Hose.
• When to use again...
Wait about 60 minutes (depends on the surrounding temperature).
The safety device will reset and you can use the appliance again.
•
...
•
...
•
60 ( )
•
•
•
17
MAINTENANCE
■ Before starting maintenance, switch off the power and disconnect the Plug from the socket outlet.
■
■
Floor Nozzle (check once a month)
• Fiber waste and hair tend to accumulate in nozzle and reduce the suction power of the appliance.
• Inspect once a month.
Using an old toothbrush or similar tools, clean any dirt or lint from the brush, roller and etc. Cut off any carpet pile
and lint entangled at the roller shaft with a pair of scissors.
( )
•
•
•
•
Main unit and accessories • Wipe with a soft cloth that has been
moistened with water.
•
•
NOTE/ /
• Never clean the unit using chemicals such as benzene, paint, thinner or alcohol. They will result in cracking and
discoloration.
• Never dry the unit using hot air (from a hair dryer etc.). This will cause deformation.
• When using a chemically treated cloth to clean the unit, follow the instructions provided with the cloth.
•
( )
•
•
•
•
•
Filter/ /
1. Remove the Dust Bag. 3. Wash it with water.
(Refer details on page 11)
• Soak the Filter in water, squeeze
1.
the water out, then hang it in a
( 11)
shady spot until it is completely
dry.
3.
2. Remove the Filter.
•
2.
•
Filter
4. Install the Filter and Dust Bag to their original
location.
4.
14
SPECIFICATIONS
MODEL MC-CG520
POWER SOURCE 220 - 240 V ~ 50 Hz (FOR SINGAPORE: 230 - 240 V ~ 50 Hz)
INPUT POWER (MAX) 1400 W
INPUT POWER (IEC) 1100 - 1300 W (FOR SINGAPORE: 1200 - 1300 W)
POWER CONTROL DIAL
DUST BAG CAPACITY 4.0 L
AUTOMATIC CORD REWIND O
VAC GAUGE O
EXHAUST FILTER HEPA
EXTENSION WANDS METALLIC WAND (2 PCS)
BLOWER OPERATION O
FLOOR NOZZLE 2-STEP
CLOTH / PAPER BAG TYPE C-17H (ONLY FOR SINGAPORE AND
DUST BAG
HONG KONG)
DIMENSION ( H × W × L) mm 240 mm × 304 mm × 450 mm
NET WEIGHT 4.5 kg
CORD LENGTH 5.0 m
CLEANING TOOLS CREVICE NOZZLE / DUSTING BRUSH
• Design and specifications may be changed without prior notice.
• Weight and dimensions shown are approximate.
MC-CG520
220 - 240 ~ 50 ( : 230-240 ~ 50 )
( ) 1400
(IEC) 1100 - 1300 ( : 1200-1300 )
4.0
O
O
HEPA
(2 )
O
2
/ C-17H ( )
( . × . × .) . 240 × 304 × 450
4.5
5.0
/
•
•
18
NOTE/ /
• Do not wash the Filter in a washing machine, wring it out, or dry it in a clothes dryer.
This can cause the Filter to shrink and result in dirt getting into the motor and damaging it.
• IMPORTANT: Never install the Filter incorrectly when using the appliance.
Failure to do so may result in damage to the motor.
•
:
•
•
•
Precaution/ /
• Do not use the appliance to suck up liquids or wet
dust.
•
Liquid
•
• Be sure to re-install the Filter to the original location
after the Filter has been removed for cleaning, etc.
•
•
Filter
Filter Care/ /
HEPA Filter is installed on the upper rear side of the the appliance. This filter retains any small dust particles which may be
present in the expelled air. It is advisable to change the HEPA Filter every year. Do not wash the HEPA Filter to avoid it's
damage. To take out the HEPA Filter, detach body cover (as illustrated) and take it out.
HEPA
HEPA HEPA HEPA ( )
MC-CG520
Detach two tabs of body
cover from the rear side
Replace the filter with a new one.
15
O
O
O
•
•
19
Operating Instructions
Vacuum Cleaner (Household)
( )
Model No. MC-CG520
IMPORTANT SAFETY INSTRUCTIONS FOR THE USER ...................2
PARTS IDENTIFICATION .....................................................................5
MC-CG520
VACUUM CLEANER ACCESSORIES ..................................................7
HOW TO OPERATE THE APPLIANCE .................................................9
HOW TO STORE THE APPLIANCE ....................................................10
HOW TO CLEAN YOUR CLOTH DUST BAG ......................................11
HOW TO REPLACE YOUR PAPER DUST BAG .................................13
Thank you for purchasing the Panasonic product.
MAINTENANCE ..................................................................................14
Before use, please read this Operating Instructions
completely in order to use this product properly
and ensure its lasting operation. After reading this
manual, store it safely. This appliance is designed BEFORE REQUESTING SERVICE ....................................................16
for household use only.
SPECIFICATIONS ...............................................................................18
Production:
Panasonic Manufacturing Malaysia Berhad (6100-K)
No.3, Jalan Sesiku 15/2, Section 15, Shah Alam Industrial Site,
40200 Shah Alam, Selangor Darul Ehsan, Malaysia.
(http://panasonic.net/)
© Panasonic Corporation 2012
V01ZDT000
Printed in Malaysia
A0712-0
