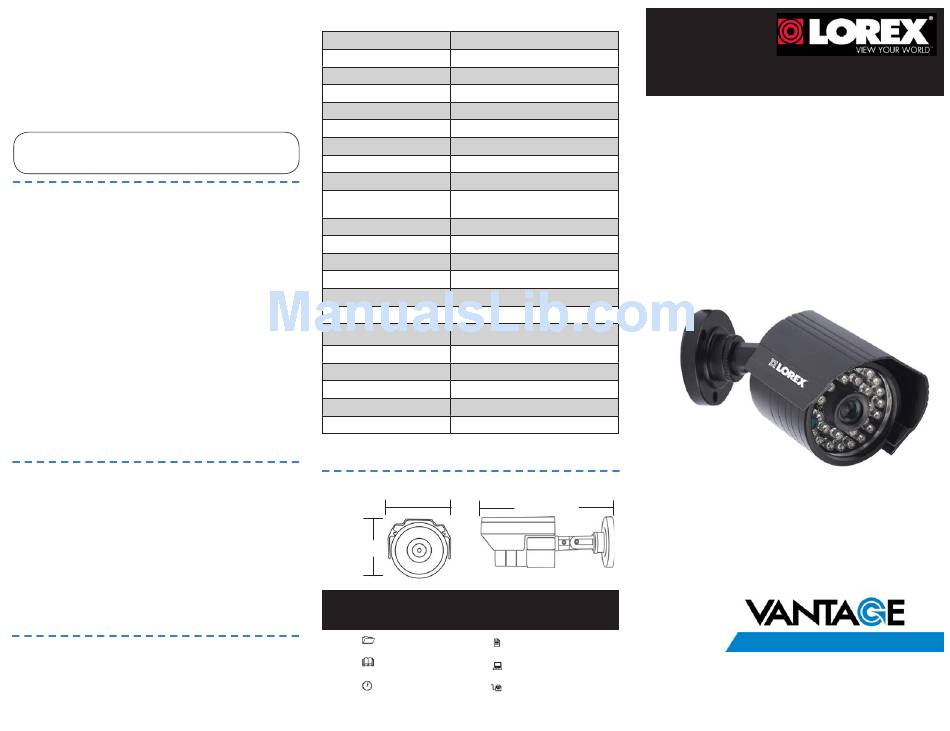

Lorex CVC6945PK4 Quick Start Manual

Contents
• IR Night Vision Camera*
• Mounting Kit / Allen Key*
• 60ft BNC / Power Extension Cable*
• Power Adapter**
• BNC-to-RCA Adapter***
*Model CVC6945PK4 is a 4-pack that includes four of the listed items.
** A "4-in-1" Power Adapter that provides power to four cameras or individual power adapters
may be provided, depending on product configuration.
*** Not included in multi-camera packs.
WARNING
- A REGULATED UL / CSA APPROVED power supply is
REQUIRED for use with this camera. Use of a non-regulated, non-conforming
power supply can damage this product and voids the warranty.
Features
• Advanced image sensor produces high resolution video
at 480 TV Lines of resolution
• Picture automatically switches to Black & White delivering
better clarity in low light conditions
• Clean & crisp night vision up to 50ft/15m away in total
darkness or up to 75ft/22m in ambient lighting*
• 30 Covert IR LED's don't glow red making it difficult to
detect the camera at night
• 4.6mm medium angle lens with a 57° diagonal of view
for improved object recognition
• Vandal resistant design with durable aluminum housing
and cable pass-through bracket
• IP66 weatherproof rated—ideal for outdoor and indoor
applications**
• Flexible mount offers wall and ceiling installation options
Disclaimers:
* Stated IR illumination range is based on ideal conditions in total darkness and in typical outdoor
night time ambient lighting. Actual range and image clarity depends on installation location,
viewing area and light reflection / absorption level of object.
** Not intended for submersion in water. Installation in a sheltered location recommended.
Warning/Caution
• Read this guide carefully and keep it for future reference
• Follow all instructions for safe use of the product and handle with care
• Use the camera within given temperature, humidity and voltage levels
noted in Camera Specifications
• Do not disassemble the camera
• Do not point the camera directly towards the sun or a source of intense
light
• Use only the supplied regulated power supply. Use of a non-regulated,
non-conforming power supply can damage this product and voids the
warranty
• Periodic cleaning may be required. Use a damp cloth only. Do not use
harsh cleaners or aerosol cleaners
• The supplied extension cable is rated for surface mounting only
• Cables for in-wall / floor-to-floor installations are sold separately

Installation Tips

• Point the camera where there is the least amount of obstructions (i.e. tree
branches)
• Install the camera in a location that is difficult for vandals to reach
• Secure cabling so that it is not exposed or easily cut
• Camera rated for outdoor use. Installation in a sheltered location
recommended

Camera Specifications

Image Sensor 1/4" Color Image Sensor
Video Format NTSC
Effective Pixels H: 668 V: 512
Resolution 480 TV Lines
Scan System 2:1 Interlace
Sync System Internal
S / N Ratio 48dB (AGC Off)
Iris AES
AES Shutter Speed 1/60 ~ 1/100,000 Sec.
Min. Illumination 0.1 Lux without IR LED
0 Lux with IR LED
Video Output Composite 1.0Vpp @ 75ohm
Lens / Lens Type 4.6mm F2.0 / Fixed
FOV (Diagonal) 57°
Termination BNC Type
IR LED Qty. / Type 30 pieces / 940nm
Night Vision Range* 50ft (15m) / 75ft (22m)
Power Requirement 12V DC ±10%
Power Consumption Max. 230mA (w / IR)
Operating Temp. Range 14° ~ 122°F / –10° ~ 50°C
Operating Humidity Range < 95% RH
Indoor/Outdoor** Both (IP66)
Weight (including stand) 0.7lbs / 0.3kg
* Stated IR illumination range is based on ideal conditions in total darkness and in typical outdoor
night time ambient lighting. Actual range and image clarity depends on installation location, viewing
area and light reflection / absorption level of object.
** Not intended for submersion in water. Installation in a sheltered location recommended.
Dimensions
78mm / 3.1"
66mm / 2.6"
FOR SUPPORT AND INFORMATION,
VISIT WWW.LOREXTECHNOLOGY.COM
Product Information
User Manuals
Quick Start Guides
Copyright © 2012 Lorex Technologies Inc.
As our products are subject to continuous improvement, Lorex reserves the right to modify product
design, specifications and prices, without notice and without incurring any obligation. E&OE

Quick Start Guide

English Version 1.0
151mm / 5.9"
Specification Sheets
Software Upgrades
Firmware Upgrades
WEATHERPROOF
NIGHT VISION SECURITY CAMERA
CVC6945 SERIES
