Summary of Contents for Axor Starck 10135XX1

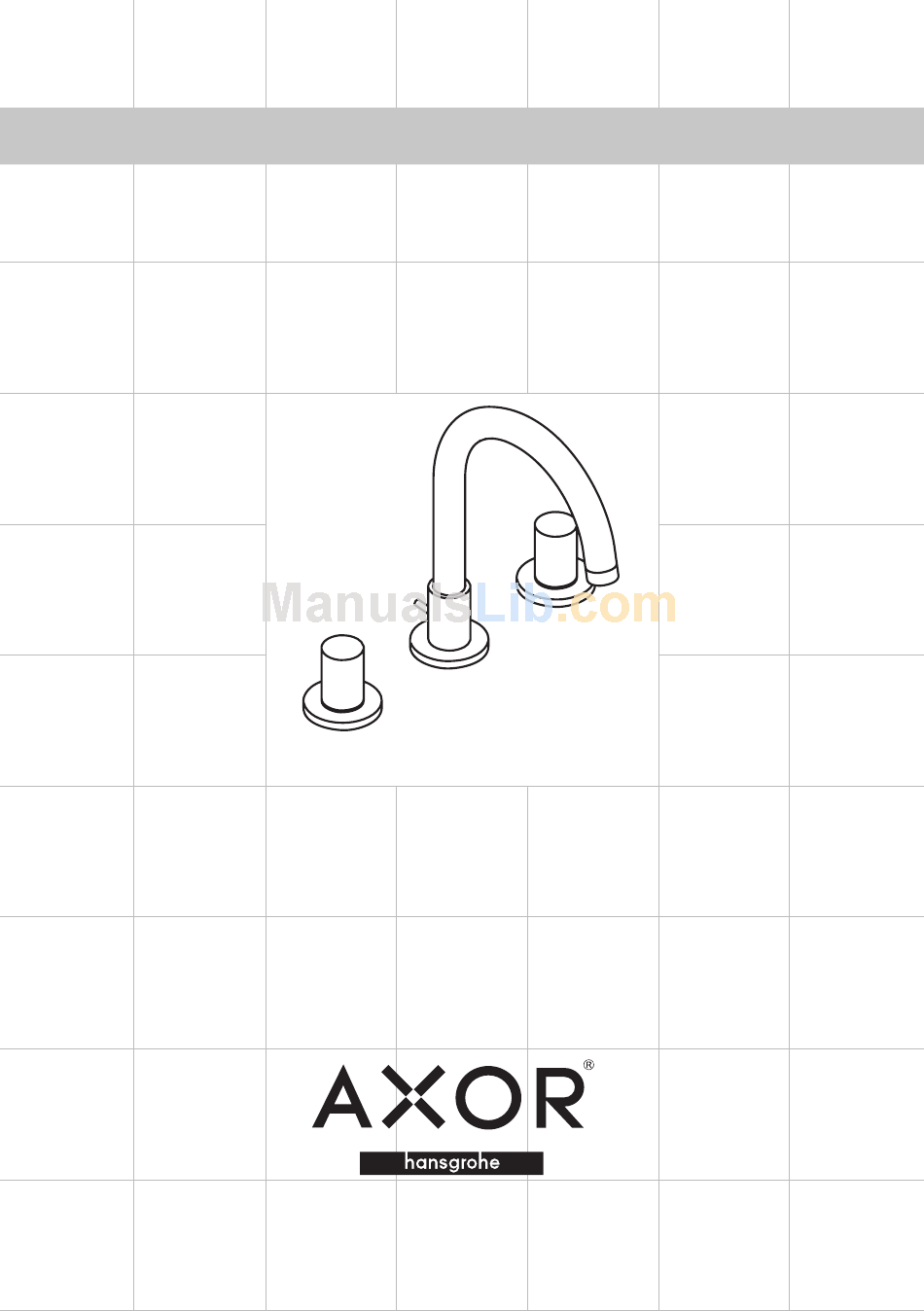

- Page 1 Installation Instructions / Warranty Axor Starck 10135XX1...
-
Page 2: Technical Information
Axor Starck Widespread Lavatory Faucet 10135XX1 Technical Information Recommended water pressure Max. water pressure Recommended hot water temp. Max. hot water temp Hole size in mounting surface Max. mounting surface depth Flow rate Requires ½" supply lines (not included) *Please know and follow all applicable local plumbing codes when setting the temperature on the water heater. -
Page 3: Installation Instructions
Installation Instructions Push the valve up through the hole in the mounting surface. Thread the mounting ring with o-ring on as far as it will go. Rest the valve on the countertop. Tighten the tensioning screws. Install the escutcheons with o-rings. Install the red and blue color rings. - Page 4 Place the spout assembly with sealing ring on the mount- ing surface. Install the fiber washer, metal washer, and mounting nut. Make sure that the spout assembly stands straight. Tighten the tensioning screws. Use the 3/8" compression fittings to install the connec- tion hoses to the valve outlets.
-
Page 5: Install The Pop-Up Drain
Install the pop-up drain Remove the plunger assembly. Unscrew the drain outlet flange from the tee. plunger Unscrew the tailpiece from the tee. Wrap height adjuster the threads with two layers of Teflon tape and replace. flange Install the white, flexible sealing gasket to the flange. -
Page 6: Replacement Parts
Replacement Parts aerator handle color ring escutcheon cold cartridge fixation set snap connector pull rod 3/8" compression fitting spout hot cartridge XX = color 00 = chrome 8 = brushed nickel 95387XX0 96318XX0 96319000 9785XX0 94008000 13961000 94184000 96657XX0 88513000 97363XX0 94009000... -
Page 7: Limited Lifetime Consumer Warranty
Cleaning Recommendation for Hansgrohe Products Modern lavatory faucets, kitchen faucets, and showers consist of very different materials to comply with the needs of the market with regard to design and functionality. To avoid damage and returns, it is necessary to consider certain criteria when cleaning. -
Page 8: Exclusions And Limitations
(i) for 1 year, with respect to Hansgrohe and Commercial products, and (ii) for 5 years, with respect to AXOR products.
