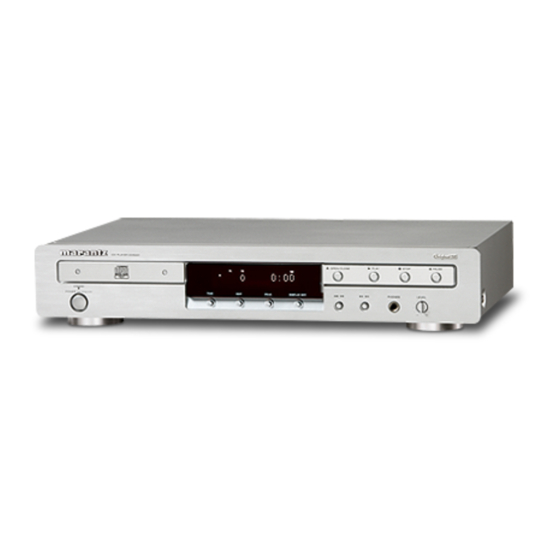

Marantz CD5001 OSE Service Manual

Hide thumbs Also See for CD5001 OSE:
Table of Contents

Advertisement

Quick Links

See also: User Manual
Service
Manual
CD5001
CD5001F
SECTION
1. TECHNICAL SPECIFICATIONS ................................................................................................... 1
2. SERVICE HINTS AND TOOLS ..................................................................................................... 2
3. WARNING AND LASER SAFETY INSTRUCTIONS ..................................................................... 3
4. SERVICE MODE AND EMERGENCY DISC EJECT .................................................................... 4
5. WIRING DIAGRAM ....................................................................................................................... 5
6. BLOCK DIAGRAM ........................................................................................................................ 7
7. SCHEMATIC DIAGRAM................................................................................................................ 9
8. PARTS LOCATION...................................................................................................................... 15
9. MICROPROCESSOR AND IC DATA........................................................................................... 21
10. EXPLODED VIEW AND PARTS LIST ......................................................................................... 31
CD5001....................................................................................................................................... 33
CD5001 OSE .............................................................................................................................. 37
CD MECHANISM........................................................................................................................ 38
11. ELECTRICAL PARTS LIST ......................................................................................................... 40
CD5001....................................................................................................................................... 41
CD5001 OSE .............................................................................................................................. 54
Please use this service manual with referring to the user guide ( D.F.U. ) without fail.
DISC
TTL
TEXT 1 2
DISC
TTL
TEXT 1 2

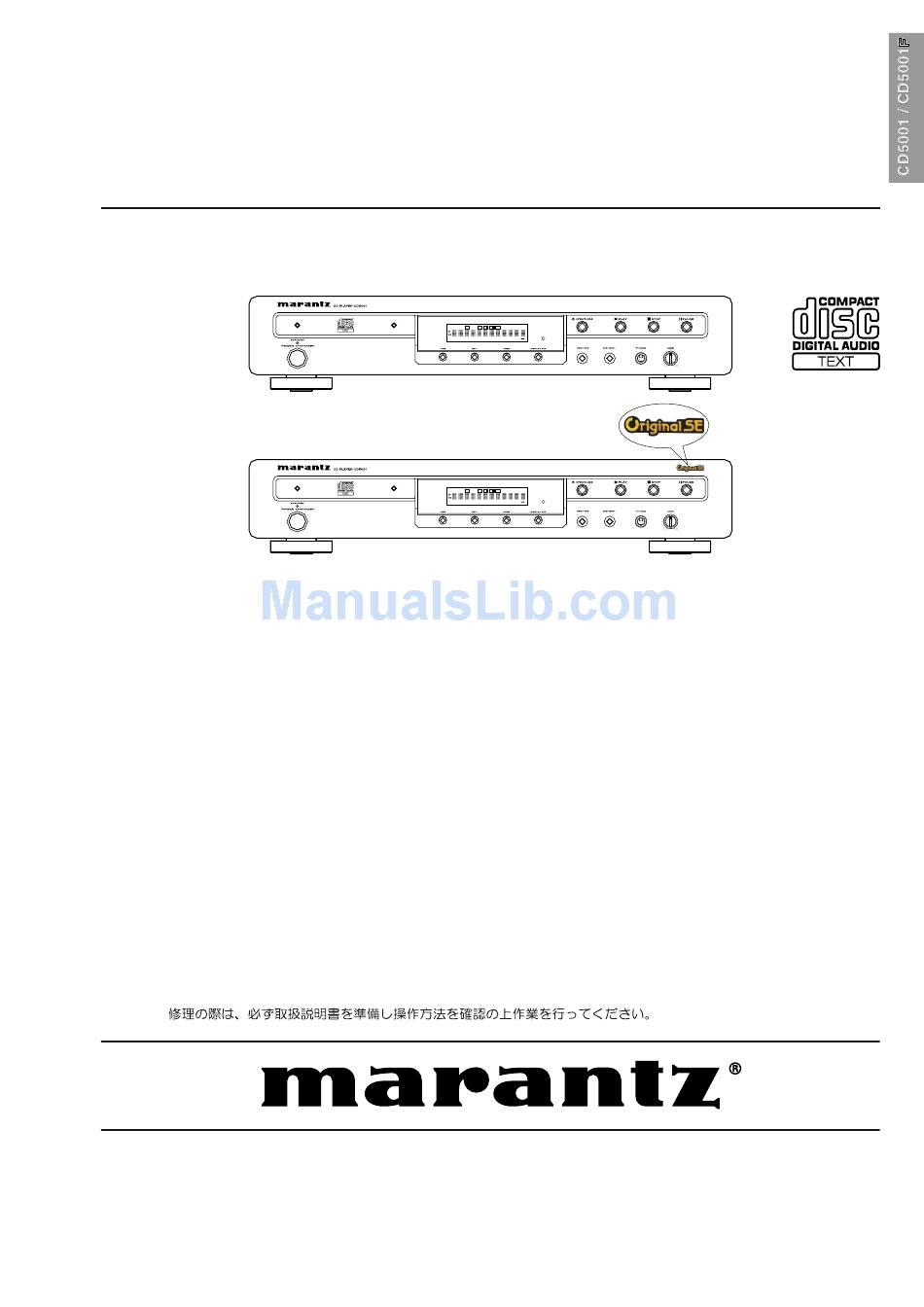

TABLE OF CONTENTS

CD5001 / CD5001 OSE
CD5001 /
RNDM
TRK
PROG
A Ð B
RPT 1 PITCH
EDIT
PEAK
TTL
TIME
3 4
5 6
7 8
9 10 11 12 13 14 15 16 17 18 19 20
Original SE badge
RNDM
TRK
PROG
A Ð B
RPT 1 PITCH
EDIT
PEAK
TTL
TIME
3 4
5 6
7 8
9 10 11 12 13 14 15 16 17 18 19 20
F N/K1G/L1G/N1G
/F B/N1B/U1B/N1S
CD5001F /
N1B/N1S
CD Player
PAGE
Part no. 90M45BW855010
First Issue 2005.07
MZ
