D-Link DES-105 Quick Installation Manual

Quick Installation Guide
5 / 8-Port 10/100 Mbps Fast Ethernet Switch
Check Your Package Contents
These are the items included with your DES-105/DES-108 purchase:
DES-105/DES-108
Note :
Using a power supply with a different
voltage rating will damage and void the
warranty of this product.
Notice Before Setting Up the DES-105/DES-108
The setup of the Switch can be performed using the following steps:
A.
Install the DES-105/DES-108 in a fairly cool and dry place. See Technical
Specification for the acceptable operation temperature and humidity ranges.
B. Install the Switch in a site free from strong electromagnetic source, vibration, dust,
and direct sunlight.
C. Leave at least 10cm of space at the left and right hand side of the Switch for
ventilation.

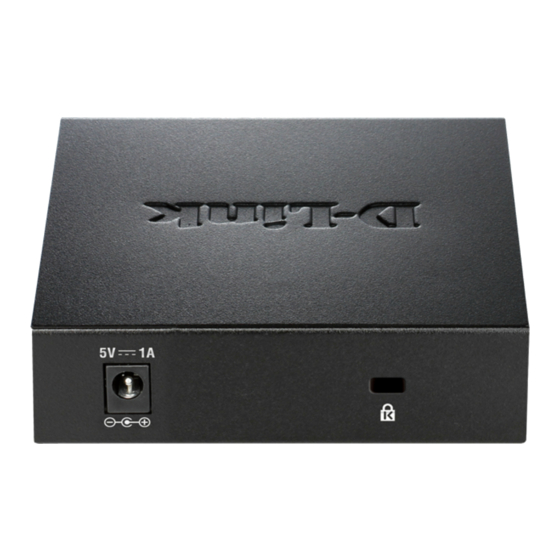

D. Visually inspect the DC power jack and make sure that it is fully secured to the
power adapter.
Do not stack any device on top of the Switch.
DES-105/DES-108
1
Quick Installation
Guide
DC Power Adapter
