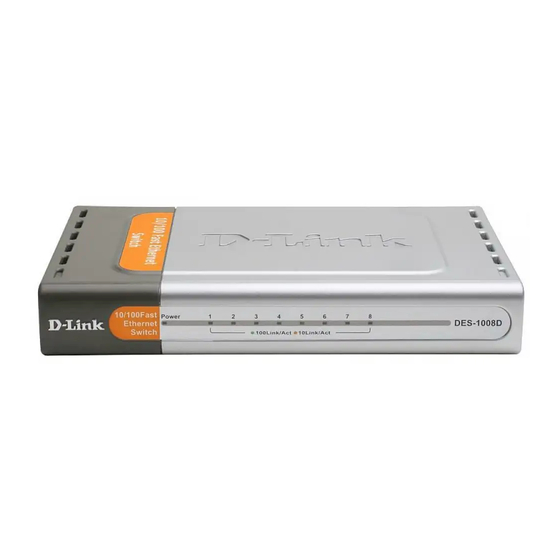

D-Link DES-1008D Manual
8-port 10/100mbps switch
Hide thumbs
Also See for DES-1008D:
- User manual (48 pages) ,
- Quick installation manual (14 pages) ,
- Quick installation manual (83 pages)
Related Manuals for D-Link DES-1008D
Summary of Contents for D-Link DES-1008D
- Page 1 DES-1008D/ DSS-8+ 8-Port 10/100Mbps Switch Manual RECYCLABLE (Sep., 2006) Rev.1.04 6DES1008D.07G...
-
Page 2: Table Of Contents
ETUP IDENTIFYING EXTERNAL COMPONENTS ......7 ..................7 RONT ANEL LED I .................7 NDICATORS ..................8 ANEL CONNECTING THE DES-1008D/ DSS-8+ ....... 9 DES-1008D/ DSS-8+...........9 OMPUTER TO DES-1008D/ DSS-8+ .............9 UB TO DES-1008D/ DSS-8+ ..........9 TO OTHER DEVICES & D ............10 PEED UPLEX MOUNTING THE SWITCH ON A WALL ........ -
Page 3: About This Guide
Switch and guide you through the installation process. Conventions For simplicity, this documentation uses the term “Switch” (first letter upper case) to refer to the DES-1008D/ DSS-8+ Ethernet Switch, and “switch” (first letter lower case) to refer to other Ethernet switches. -
Page 4: Introduction
NTRODUCTION Fast Ethernet Technology The growing importance of LANs and the increasing complexity of desktop computing applications are fueling the need for high performance networks. 100BASE-T (Fast Ethernet) provides a cost- effective and high-performance solution for small workgroups, SMBs (Small to Medium Businesses), and any network supporting bandwidth-intensive applications. - Page 5 A switch increases capacity and decreases network loading by dividing a local area network into different LAN segments. Dividing a LAN into multiple segments is one of the most common ways of increasing available bandwidth. If segmented correctly, most network traffic will remain within a single segment, enjoying the full- line speed bandwidth of that segment.
-
Page 6: Features
200Mbps, any one of its eight ports may be used to cascade to an additional switch to open a Full-Duplex Fast Ethernet pipe. The DES-1008D/ DSS-8+ is the perfect choice for a department or office planning to upgrade to Fast Ethernet. The DES-1008D/ DSS- 8+ can accommodate 10Mbps or 100Mbps devices, providing a flexible solution for existing (10Mbps) Ethernet workgroups. - Page 7 complete frame checking and error frame filtering, this scheme prevents error packages from transmitting among segments. Auto-MDI/MDI-X. Detects the type of cable you are using, Crossover or Straight-Through, and automatically adjusts per port, allowing you to also use any port as an uplink port—the choice is yours.
-
Page 8: Unpacking And Setup
If any item is missing or damaged, please contact your local reseller for a replacement. Setup The setup of the DES-1008D/ DSS-8+ can be performed using the following steps: The power outlet should be within 1.82 meters (6 feet) of the Switch. -
Page 9: Identifying External Components
DENTIFYING XTERNAL OMPONENTS Front Panel The figure below shows the front panel of the DES-1008D/ DSS-8+. Front Panel LED Indicators LED Indicators Power Indicator This green indicator light is on when the DES-1008D/ DSS-8+ is receiving power; otherwise, it is off. -
Page 10: Rear Panel
Power is supplied through an external DC power adapter. Check the technical specification section for information about the DC power input voltage. Since the DES-1008D/ DSS-8+ does not include a power button, plugging its power adapter into a power outlet will immediately power it on. -
Page 11: Connecting The Des-1008D/ Dss-8
Straight-Through or Crossover cable. For 100Mbps operation a Category 5 cable must be used. The connection is accomplished from any port of the hub to any port of the DES-1008D/ DSS-8+. DES-1008D/ DSS-8+ to other devices The DES-1008D/ DSS-8+ can be connected to another switch or other devices (routers, bridges, etc.) via a two-pair Category 3, 4, 5... -
Page 12: Port Speed & Duplex Mode
Port Speed & Duplex Mode After plugging the selected cable to a specific port, the system uses auto-negotiation to determine the transmission mode, auto- detecting the network speed (10Mbps or 100Mbps) for any new twisted-pair connection. If the attached device does not support auto-negotiation or has auto-negotiation disabled, an auto-sensing process is initiated to select the speed and half-duplex mode is selected. -
Page 13: Mounting The Switch On A Wall
OUNTING THE WITCH ON A The DES-1008D/ DSS-8+ can also be mounted on a wall. Two mounting slots are provided on the bottom of the switch for this purpose. Please make sure that the front panel is exposed in order to view the LEDs. -
Page 14: Technical Specifications
ECHNICAL PECIFIC ATIONS General Standards IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3x Flow Control Protocol CSMA/CD Data Transfer Rate Ethernet: 10Mbps , 20Mbps (half duplex) (full-duplex) Fast Ethernet: 100Mbps , 200Mbps (half duplex) (full- duplex) Topology Star Network Cables 10BASET: 2-pair UTP Cat. - Page 15 Performance Transmission Method: Store-and-forward RAM Buffer 64KBytes per device Filtering Address 1K entries per device Table Packet Filtering / 10Mbps Ethernet: 14,880/pps Forwarding Rate: 100Mbps Fast Ethernet: 148,800/pps MAC Address Automatic update Learning:...
-
Page 16: Pin Specification
RJ-45 P PECIFICATION The following diagram and tables show the standard RJ-45 receptacle/connector and their pin assignments. RJ-45 Connector pin assignment Contact Media Direct Interface Signal Tx + (transmit) Tx - (transmit) Rx + (receive) Not used Not used Rx - (receive) Not used Not used RJ-45 pin assignment...
