- Page 1 Owner’s Manual Xeo Hub / Extender / Link / Dynaudio Connect English...
- Page 2 Other trademarks and trade names are those of their respective owners. An update to this manual may be necessary due to product improvements and new functions. The latest version of this manual is available on the Internet at www.dynaudio.com/support/manuals Dynaudio...
-
Page 3: About This Manual
Thank you for choosing Dynaudio Xeo. Xeo combines the latest wireless technology with impressive sound quality and makes listening to music truly comfortable and easy. The next few pages contain important information on connecting the system and its operation to ensure perfect function and the best-possible sound quality. -
Page 4: Table Of Contents
Connection Packaging material Division into audio zones Disposal Malfunctions Scope of delivery Technical data Xeo Hub / Dynaudio Connect Annex Xeo Extender Connection options for Hub/Connect Xeo Link Declaration of Conformity (EU only) The Xeo system Reminding (USA and Canada only) -
Page 5: Important Safety Instructions
Important Safety Instructions Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer‘s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. - Page 6 If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. ► If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention. Dynaudio...
-
Page 7: Unpacking
Transport damage may be expected if the packaging is already severely harmed. Do not attempt to commission a damaged device. If the contents are incomplete or damaged, please contact your Dynaudio Xeo distributor. Distributor addresses can be found in the Internet at www. dynaudio.com. -
Page 8: Scope Of Delivery
Scope of delivery Xeo Hub / Dynaudio Connect 1 Xeo Hub or Dynaudio Connect 1 Xeo power supply unit (country-specific version), Hub: micro USB, Connect: DC jack 1 stereo analog cable (jack 3.5 mm – 3.5 mm, length: 1.5 m) ... -
Page 9: Xeo Extender
Xeo Extender 1 Xeo Extender 1 Xeo power supply unit with micro USB cable (country-specific version) 1 Xeo first time setup manual (quick guide for installation, not shown) Xeo Link 1 Xeo Link 1 Xeo power supply unit with micro USB cable (country-specific version) ... -

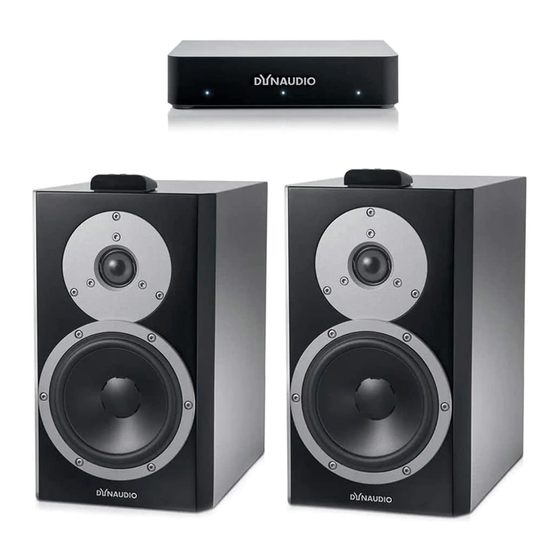

Page 10: The Xeo System
Components Xeo Hub The Xeo Hub is the control center for the Xeo system. Signal sources such as tuners, receivers, CD players, TVs, streaming clients, network players, MP3 players, or computers are connected to it. Signals are sent via radio from the Hub to the speakers (or Xeo Link) where they are then played back. -
Page 11: Combination Examples
Combination examples Below you will find several examples of Xeo component combinations. The high level of flexibility in the Xeo system enables even more variants. Ask your Dynaudio distributor to find the perfect solution for your needs. With Hub or Connect:... -
Page 12: Connection And Operation
Connection and operation This section describes the connections and control elements for the Xeo components. Please contact your Dynaudio Xeo distributor if you have any problems with connection and start-up. Distributor addresses can be found in the Internet at www.dynaudio.com. -
Page 13: Connections And Control Elements
Xeo Hub Connections and control elements Front plate Operational = connection to a speaker, Extender, or Link state = searching for a connection, = no connection Rear plate – inputs Aux In Input for cable with stereo jack (3.5 mm stereo) Connect devices here that have an output for the stereo jack. -
Page 14: Connection
Do not use a different power supply unit! NOTE: If you connect Xeo Hub via a USB cable to a computer (that is switched on), you do not need an additional mains connection. ► Connect your signal source to the appropriate input on the Hub. -
Page 15: Dynaudio Connect
Dynaudio Connect Connections and control elements Front plate Bluetooth = not connected, = connected, = pairing mode Operational = connection to a speaker, Extender, or Link state = searching for a connection, = no connection WiFi = not connected, = connected,... -
Page 16: Basic Setup
Xeo 4 and Xeo 6 speakers do not support hi-res broadcast. Focus XD speakers will need the latest firmware upgrade to support 24 Bit/96 kHz broadcast. When changing broadcast mode of Dynaudio Connect, speakers will need to reboot by disconnecting mains power to enable new broadcast mode. Reboot can also be done by press and hold A, B or C button on the remote control. -
Page 17: Connection
Connection 1. Connect your signal source to the appropriate input on the Connect. For a selection of signal sources and options for connecting to the Connect see “Connection options for Hub/Connect” on page 26. 2. Connect the Connect to the mains voltage using the POWER connection and the Xeo power supply unit. -
Page 18: Wifi Setup
3. Enter http://192.168.1.1 into the address window of your internet browser and follow the setup WiFi Setup wizard to connect to your home network. 4. From now on just select Dynaudio Connect A, B or C from the list of Bluetooth devices (if not Coax In USB In... -
Page 19: Xeo Extender
Xeo Extender Connections and control elements Front plate Reception = connected to a Hub/Connect, = no connection possible status Transmission = connected to a speaker or Link, = no connection possible status Id error = The same ID was selected for Hub Id In and Extender Id Out. This is not permitted. -
Page 20: Connection
Only one Extender may be deployed if using two Hubs/Connects. Select e.g. the following ID settings: • Hub/Connect 1: Id = A • Hub/Connect 2: Id = B → Extender: Hub Id In = B, Extender Id Out = C Dynaudio... -
Page 21: Xeo Link
Xeo Link Connections and control elements Front plate Operational = an audio signal is played back, = connection but no audio signal, state = no connection to a Hub/Connect or Extender, = standby mode Rear plate Coax Out Output for electrical digital cable ►... -
Page 22: Connection
2. Select an audio zone: Red, Green, or Blue. Use one of the outputs to connect Xeo Link with one of the active components, e.g. the active subwoofer Dynaudio Sub 600. 3. Select the desired signal source with the remote control and control the volume. -
Page 23: Division Into Audio Zones
Division into audio zones Xeo Link (as well as the Xeo speakers) can be assigned to audio zones using the Zone selector switch. All components assigned to the same zone can be operated together via the remote control. Green Green Blue Zone Green... -
Page 24: Malfunctions
Do not operate such electrical devices near Xeo components. You can ask your Dynaudio Xeo distributor for assistance at any time. Or go to www.dynaudio.com/support to read the FAQ or to contact the Customer Support Team. Further information can also be found on the Xeo website at www.dynaudio.com/xeo... -
Page 25: Technical Data
Technical data Technical specifications Dynaudio Connect Xeo Hub Xeo Extender Xeo Link Signal frequencies A: 5.2 Ghz (Low), B: 5.2 Ghz (High), C: 5.8 Ghz (if available) Sampling rate for digital inputs up to 24 bit/96 kHz 16 bit/48 kHz –... -
Page 26: Annex
Annex Connection options for Hub/Connect Below you will find a selection of signal sources and options for connecting to the Xeo Hub or Connect. Your signal source Signal source Xeo Hub Cable Notes output input (source – Hub) Notebook, Mac™, PC... - Page 27 Your signal source Signal source Xeo Hub Cable Notes output input (source – Hub) Analog radio, digital radio Line out 1: Line in RCA – RCA * If available Optical* 2: Optical In Toslink – Toslink Analog record player Line out* 1: Line in RCA –...
-
Page 28: Declaration Of Conformity (Eu Only)
Declaration of Conformity (EU only) Dynaudio A/S hereby declares, that the products Xeo Hub, Xeo Extender, Xeo Link, and Dynaudio Connect are in conformity with the following directives: • 2001/95/EF (Product Safety) • 2004/108/EF (EMC) • 1999/5/EC (R&TTE) • 2011/65/EU (ROHS) The Declaration of Conformity is available on the Internet at www.dynaudio.com/support/manuals... -
Page 29: Reminding (Usa And Canada Only)
Reminding (USA and Canada only) A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. -
Page 30: Ic Notice
(ii) Les radars à forte puissance sont désignés comme les utilisateurs principaux (c‘est-à-dire qu‘ils sont prioritaires) des bandes 5250 – 5350 MHz et (iii) 5650 – 5850 MHz. IIs peuvent provoquer des perturbations electromagnetiques sur les appareils de type LELAN (réseau de communication local sans licence) ou les endommager. Dynaudio... - Page 32 Sales & Marketing: Dynaudio International GmbH, Ohepark 2, 21224 Rosengarten, Germany, Phone: +49 4108 - 41 80 - 0 www.dynaudio.com © Dynaudio International GmbH, Xeo Owner’s Manual 1215 EN. All text and image copyrights reserved. Subject to change without notice.
