Congratulations on choosing the ﬂagship SVS PB16-Ultra, our most powerful and advanced

subwoofer. We know you're anxious to get it cranking, so the following steps will guide you

through the quick and easy set-up process.

For more detailed information about set-up and optimization for your new subwoofer, please

reference the full owner's manual included. We strongly recommend reading the manual to

get the best possible performance out of your new subwoofer.

Unbox It

If you followed the PB16-Ultra Subwoofer unboxing instructions properly you

will have the following items in front of you. Please conﬁrm all pieces are

available before continuing.

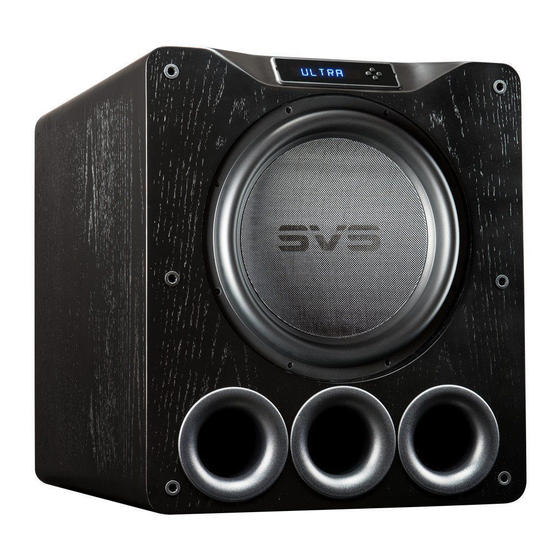

[PB16-Ultra Subwoofer]

[Detachable Power Cord]

Quick Start Guide

PB16-Ultra

[Removable Metal Grille]

[Port Plugs]

[IR Remote Control]

Page 1 Quick Start Guide PB16-Ultra Congratulations on choosing the ﬂagship SVS PB16-Ultra, our most powerful and advanced subwoofer. We know you’re anxious to get it cranking, so the following steps will guide you through the quick and easy set-up process. For more detailed information about set-up and optimization for your new subwoofer, please reference the full owner’s manual included.
Page 2 Hook It Up For most set-ups, a single RCA subwoofer interconnect cable running from the AV Receiver’s “SUB 1” output to the PB16-Ultra’s “LFE” line level input is all that’s required to connect the subwoofer into your system. If you run separate Preampliﬁer and Power Ampliﬁers, follow the “Line Level Connection –...
Page 3 Get Calibrated Set the PB16-Ultra volume to -10, then run auto-set-up in the AV receiver/proces- sor. It is important to re-run your receiver’s calibration set-up if you are upgrad- ing from another subwoofer and each time you move the subwoofer.
