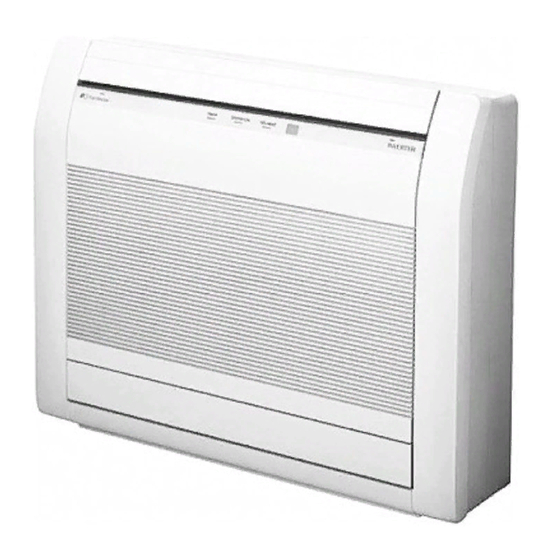

Split type room air conditioner floor type
Hide thumbs Also See for AGYG14LVCB:

Advertisement

SPLIT TYPE
ROOM AIR CONDITIONER
FLOOR TYPE
Indoor unit
AGYG14LVCB
CONTENTS
SPECIFICATIONS. . . . . . . . . . . . . . . . . . .
DIMENSIONS . . . . . . . . . . . . . . . . . . . . . .
CIRCUIT DIAGRAM . . . . . . . . . . . . . . . . .
ERROR DETECTION . . . . . . . . . . . . . . .
PARTS (INDOOR UNIT) . . . . . . . . . . . . .
PARTS (OUTDOOR UNIT) . . . . . . . . . . .
ACCESSORIES . . . . . . . . . . . . . . . . . . .
Outdoor unit
AOYG14LVCN
1
2
3
4
5
8
12
14
19
22

Advertisement

Table of Contents
loading

Summary of Contents for Fujitsu AGYG14LVCB

  • Page 1: Table Of Contents

    ROOM AIR CONDITIONER FLOOR TYPE Indoor unit Outdoor unit AGYG14LVCB AOYG14LVCN CONTENTS SPECIFICATIONS....DIMENSIONS ..... .
  • Page 2: Specifications

    SPECIFICATIONS ELECTRICAL DATA NOISE LEVEL TYPE Cool & heat inverter High 44 dB INDOOR UNIT AGYG14LVCB Medium 38 dB INDOOR UNIT Cooling OUTDOOR UNIT AOYG14LVCN 31 dB COOLING CAPACITY 4.20 kW Quiet 22 dB HEATING CAPACITY High 43 dB 5.20 kW...
  • Page 3: Dimensions

    DIMENSIONS unit : mm Drain hose length : 600 mm Drain pipe diameter INDOOR UNIT Inside : 14.2 mm Outside : 16.2 mm OUTDOOR UNIT 2011.10.18...
  • Page 4: Refrigerant System Diagram

    REFRIGERANT SYSTEM DIAGRAM Heat exchanger (indoor unit) Muffler 2-Way valve 3-Way valve Compressor Muffler Strainer 4-Way valve Expansion valve Heat exchanger (outdoor unit) Strainer Refrigerant direction Cooling Heating Refrigerant pipe diameter Liquid : 1/4" (6.35 mm) Gas : 1/2" (12.7 mm) 2011.10.04...
  • Page 5: Circuit Diagram

    CONTROLLER PCB ASSY ( MAIN PCB ) INDICATOR CN203 PCB ASSY 6 5 4 3 2 1 FAN MOTOR 1 2 3 4 5 6 BLACK ( UPPER ) CN202 WHITE WHITE YELLOW INDOOR UNIT WHITE BLUE WHITE WHITE SWITCH WHITE PCB ASSY FAN MOTOR...
  • Page 6: Indoor Pcb Circuit Diagram

    INDOOR PCB INDICATOR PCB ASSEMBLY CIRCUIT DIAGRAM ( SWITCH + DISPLAY ) K06DD-0801HSE-F0 CONTROL UNIT EZ-0121BHSE SWITCH PCB ASSEMBLY THERMAL L I N FUSE 102 CN11-9 3A 250V 22007 CN11-8 AC250V 3.15A WHITE BLACK BLACK CN11-7 WHITE POWER SOURCE N I N CN11-6 WHITE AC230V...
  • Page 7 INDOOR UNIT CONTROLLER PCB ASSEMBLY R60 - R62 ( MAIN PCB ) 10k <1/10W> RF201L2S K09DD-1205HSE-C1 R53 - R56 MY064 330 <1/10W> 1000p CN11 1SS355 0.01 340V 1000/ <R> B09B-PAEK-1 <ECQE> I C1-24 WHITE RF201L2S I C1-23 100k 1SS355 I C1-22 <RS-2W>...
  • Page 8 INDOOR UNIT INDICATOR PCB ASSEMBLY K06DD-0801HSE-F0 06 JB20 / JB20 09 PAP / JB20 1061 L60 1061 L550 D201 SLR-343DC CN201 ORANGE CN203 CN202 D202, D203 SLR-343MC GREEN R201 <1/4W> I C201 SW201 C201 GP1UM261 KSHC611BT + C202 <F> SW202 SSSS213000 2011.08.31...
  • Page 9: Outdoor Pcb Circuit Diagram

    OUTDOOR PCB CIRCUIT DIAGRAM INVERTER ASSEMBLY EZ-01111HUE EARTH UL1015 AWG14 EMI FILTER UL1015 WHITE ZCAT2132-1130 AWG14 UL1015 BLACK AC230V AWG14 BLACK 50Hz UL1015 UL1015 AWG14 TM101 AWG20 ORANGE 250V UL1015 AWG20 F100 WHITE I NDOOR UNIT UL1015 UL1015 250V AWG20 AWG14 TM102 BLACK...
  • Page 10 CN200 1-1747052-2 TP00351-31 x 2 FH200 FH201 1SS355 DC VOLT I N R601 F201 OUTDOOR UNIT 1.0k R603 250V 3.15A I C5 <1/10W> 150k 2200p 220/ CT600 7818 <1/10W> <2W> <E> D1FL20U CONTROLLER PCB ASSEMBLY CT-1B C211 P-AN-CT TM601 C601 560k 450V 0.1 <F>...
  • Page 11 OUTDOOR UNIT TRANSISTOR PCB ASSEMBLY ( I P M ) K10AY-100AHUE-TR0 R360 C209 - C211 C221 C222 C332 C302 0.1 <F> 100/ L300 <1/2W> <F> <B> <F> BL02Rn1 TM303 TM101 D303, D302, D301 D307 ORANGE US1J x 3 RD24FM TM102 TM304 BROWN BLACK...
  • Page 12 OUTDOOR UNIT CAPACITOR PCB ASSY K05DG-0700HUD-P0 WHITE YELLOW C201 C202 660/ 660/ 450V 450V BLUE VIOLET POWER_G OUTDOOR UNIT FILTER PCB ASSEMBLY K10CI-1100HUE-FL0 R100 CT OUT ZPR0RCH400 BLACK GRAY H-0017-2 x 2 R101 ZPR0RCH400 W100 BLACK L101 K101 L100 L102 250V DW12D1 RCH3818-022PF07...
  • Page 13: Error Detection

    ER R OR D ETEC TION If you use a wireless remote control, the lamp on the photo detector unit will output error codes by way of blinking patterns. If you use a wired remote control, error codes will appear on the remote control display.
  • Page 14 OUTDOOR UNIT ERROR Discharge temperature abnormal 0.5 second on / 0.5 second off IPM overcurrent protection 0.1 second on / 0.1 second off Thermistor abnormal CT abnormal 2.0 second on / 2.0 second off 0.1 second on / 2.0 second off Compressor location abnormal 5.0 second on / 5.0 second off Fan abnormal...
  • Page 15: Parts (Indoor Unit)

    PARTS INDOOR UNIT Description Parts number Intake Grille Assy 9316418059 Rope Assy 9316458017 Air Filter 9316189010 Front Panel 9316185012 Front Panel L 9316187016 Front Panel R 9316186019 Air Clean Filter Assy 9316474017 Bracket Panel 9316272019 Remote control 9379219006 Remote Control Holder 9305642045 2011.10.05...
  • Page 16 INDOOR UNIT Description Parts number Description Parts number Control Cover 9316201019 Display Cover 9316191013 Controller PCB Assy 9708532127 Thermistor Holder 9316192010 Control Box 9316200012 Motor Holder 9316195011 Terminal 9900385026 Bearing C Assy 9306628017 Terminal Bracket 9316269019 Crossflow Fan Assy 9312004034 Terminal Cover 9316307018 Fan Motor, MFD-14TXN...
  • Page 17 INDOOR UNIT Description Parts number Evaporator Total Assy 9316091023 Evaporator Holder 9316199019 Water Seal 9316271012 2011.10.05...
  • Page 18 INDOOR UNIT Casing assy Description Parts number Top Cover 9316207011 R and L Louver U 9316208018 Fan Guard 9316211018 Casing 9316204010 Gear Case 9316213012 Gear A 9309994003 Step Motor (up / down) 9900384043 Louver U 9316205017 Louver Z 9316206014 Reinforcement 9316378018 2011.10.05...
  • Page 19 INDOOR UNIT Drain pan assy Description Parts number Motor Step (Damper) 9900384050 Micro Switch (Limit Switch) 9900424015 Motor Step (Damper Lock Left) 9900384067 Drain Cap 9316177017 Drain Pan U 9316214019 Drain Hose Assy 9314147029 Step Motor (Damper Lock Right) 9900384074 Damper 9316216013 R and L Louver Z...
  • Page 20: Parts (Outdoor Unit)

    PARTS OUTDOOR UNIT Ref. Description Part number 1 Thermistor Holder 9313954031 2 Protective Net 9332492002 3 Top Panel Assy 9318464023 4 Front Panel Assy 9318463033 Cabinet Left Assy 9318461015 6 Cabinet Right Assy 9318462005 7 Grip 9317588003 Switch Cover Assy 9318499001 9 Base Assy 9316885059...
  • Page 21 OUTDOOR UNIT Ref. Description Part number Heater Unit Assy 9900616014 Heater Holder A 9318631005 Heater Holder B 9318651003 Condenser Total Assy 9317089104 Compressor Assy 9318334005 Valve Bracket 9331649001 2-way Valve Assy 9317171014 3-way Valve Sub Assy 9317109062 4-way Valve Assy 9318457018 Solenoid 9970110023...
  • Page 22 OUTDOOR UNIT Ref. Description Part number 41 Case Cover Assy 9315781048 Inverter Case Assy 9315040039 43 PCB Holder 9315050021 Controller PCB Assy 9707667844 45 Transistor PCB Assy 9708647111 Power Supply PCB Assy 9708765051 Capacitor PCB Assy 9707129113 48 ACTPM 9707592016 49 Choke Coil 9900223014 50 Terminal Bracket...
  • Page 23: Accessories

    ACCESSORIES INDOOR UNIT Name and Shape Q'ty Part No. Bracket panel For indoor unit installation 9316272019 Remote control Use for air conditioner 9379219006 operation Battery (penlight) For remote control 0600185541 Remote control holder Hold a remote control 9305642045 Cloth tape For indoor unit installation 9310519004 Tapping screw (big)
  • Page 24 1109G3975...
