Shure SE215m+ SPE User Manual

Sound Isolating™
Earphones
Shure Sound Isolating™ Earphones, deliver a detailed
soundstage free from outside noise. The powerful and
stylish Shure SE earphones come with a detachable
cable, adapters, a durable carrying case, and inter-
changeable Sound Isolating sleeves for a comfortable
and personalized fit.

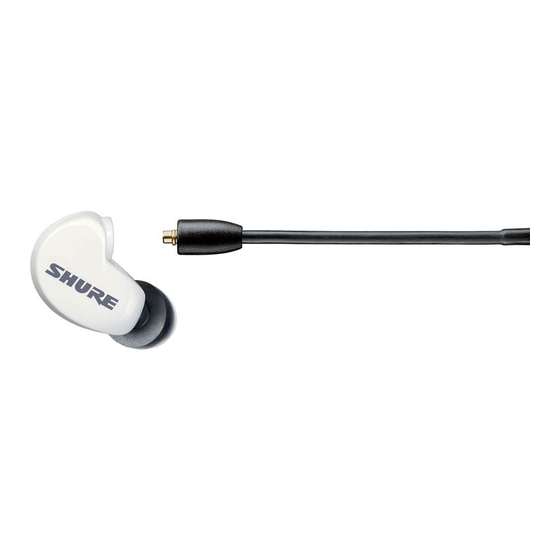

Detachable Cable

You may need to detach the cable from the earphones
to attach optional components or to replace the cable
if it becomes damaged. To prevent accidental separa-
tion, the connector has a snug fit. Take special care to
prevent damage to the earphone and connector.
• Do not use pliers or other tools.
• Grasp the connector and the earphone as close as
possible to where they join.
• Pull straight apart—do not twist. Cable is a snap fit,
not threaded.
Note: If you pull at an angle, the connector will not
detach.
• Do not pull on the cable or put any pressure on the
earphone nozzle.
• Listen for a click when connecting.
• When reattaching the cable, match the "L" and "R"
markings. For clear cables and earphones, match
the color dots (Red=Right, Blue=Left).
Wearing the Earphones
The following are some suggested ways of wearing the
earphones.
Over the ear in back
Wear the cable over the ear and secure it behind the
head to help keep the earphones in place during phys-
ical activity.
Tighten the cable and take up slack by raising the
cable cinch.
©2016 Shure Incorporated
27A32516 (Rev. 1)
Printed in U.S.A
SE215m+ Special Edition Sound Isolating™ Earphones
Inserting the Earphones
Insert the earphones so they form a tight seal. The fit of
the earphone can greatly affect sound quality.
Important: If there seems to be a lack of low frequency
response (bass), this means that the earphone sleeve
is not forming a tight seal. Gently push the earphone
deeper into the ear canal or try a different sleeve.
Warning: Do not push the earphone sleeve beyond the
ear canal opening.
Changing Sleeves
• Twist and pull to remove the sleeve from the nozzle.
• Slide on a new sleeve so that it completely covers
the barb and the nozzle.
Caution: If the barb or any of the nozzle is exposed,
the sleeve is not properly installed. Replace sleeves if
they do not tightly grip the nozzle. To ensure proper fit
and performance, use only sleeves supplied by Shure
(unless using custom molded sleeves).
Removing the Earphones
Grasp the body of earphone and gently twist to
remove.
Note: Do not pull on cable to remove earphone.
Choosing a Sleeve
Select an earphone sleeve that provides the best fit
and sound isolation. It should be easy to insert, fit com-
fortably, and easy to remove.
Soft Flex Sleeves: In small,
medium, and large sizes.
Made from pliable rubber.
Soft Foam Sleeves:
Compress the foam sleeve
between your fingers and
insert into the ear canal.
Hold in place for about ten
seconds while the foam
expands.
Triple-Flange Sleeves: If
desired, use scissors to trim
the stem on the sleeve.
Using the Remote
Use the remote to control compatible media phone
players.
• Answer/End Call: Click the center button once.
• When answering calls speak in a normal manner.
• Answer/end calls on most phones by pressing the
center button once.
Please read your mobile device's user guide for more
information on how to use the answer/end button,
check for additional features, or to troubleshoot usage
problems.
NOTE: On some phones it might be necessary to
adjust the volume when switching from phone call to
music.
For more information about compatible models go to:
www.shure.com
