2D Chart Enhancements
Note:

Specifying the overlay area

You can specify whether the overlay is displayed for land areas only or for land and sea
areas, via the Cartography Setup menu.

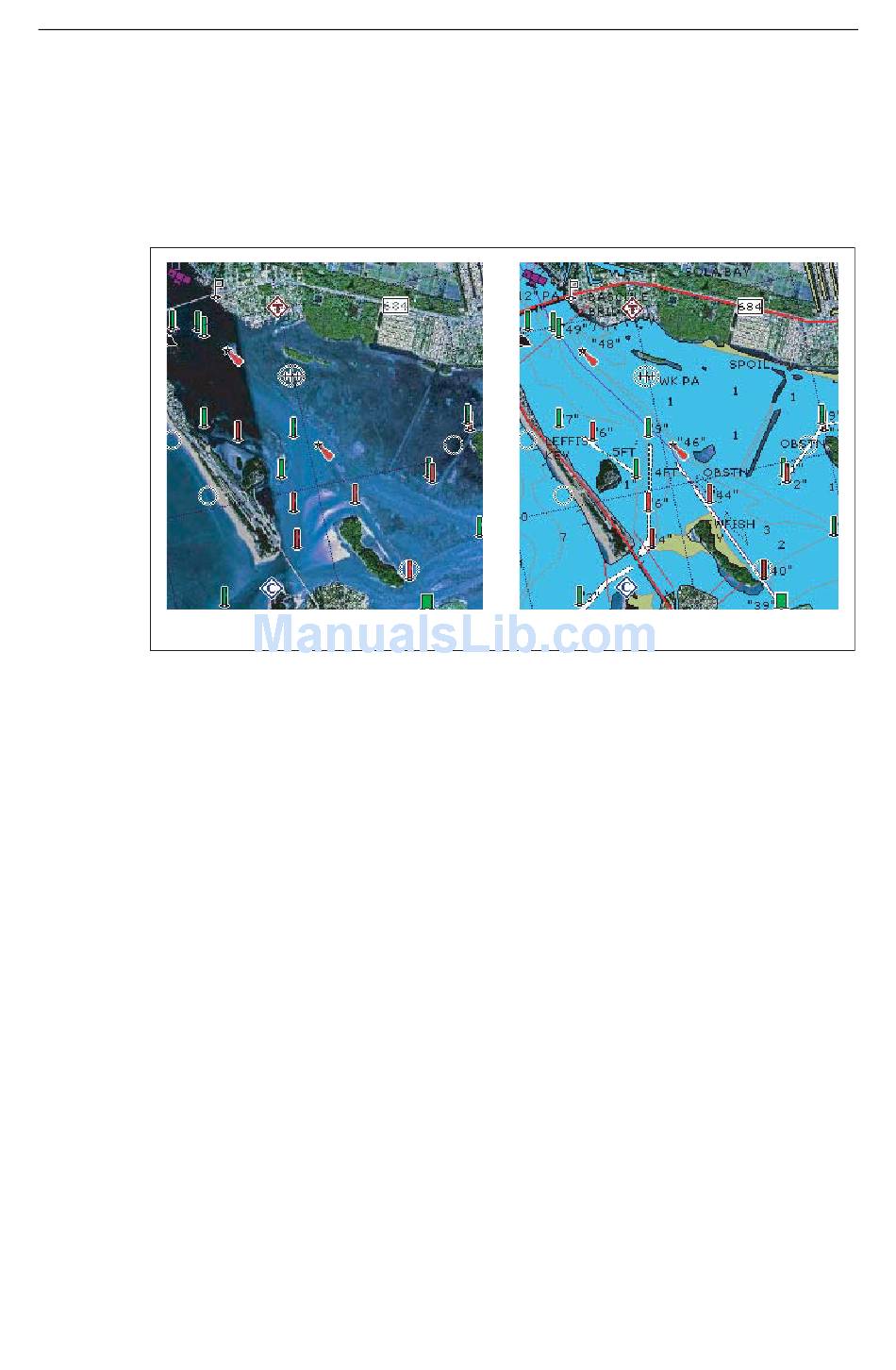

Land and sea overlay

Increased coverage

In addition to coastal regions, the Platinum chart card also covers US lakes and inland
waterways.

Changed control

• Radar Overlay - Now controlled via the
keys.
• Radar/chart synchronization - Now controlled via the
CHART MODE & ORIENTATION - CHART SYNC - RDR
Note:
but not both.

Additional menu items

The Cartography Setup Menu now includes controls to switch Business Services, Roads
and Additional Wrecks on/off, and to select either land or land and sea for the Aerial
Photo Overlay.
Any changes that you make will affect all displays in your system.
The 2D chart can be synchronised with either the radar or the 3D chart (see page 21),
Land only overlay
PRESENTATION and
PRESENTATION
soft keys.
11
D7921_1
