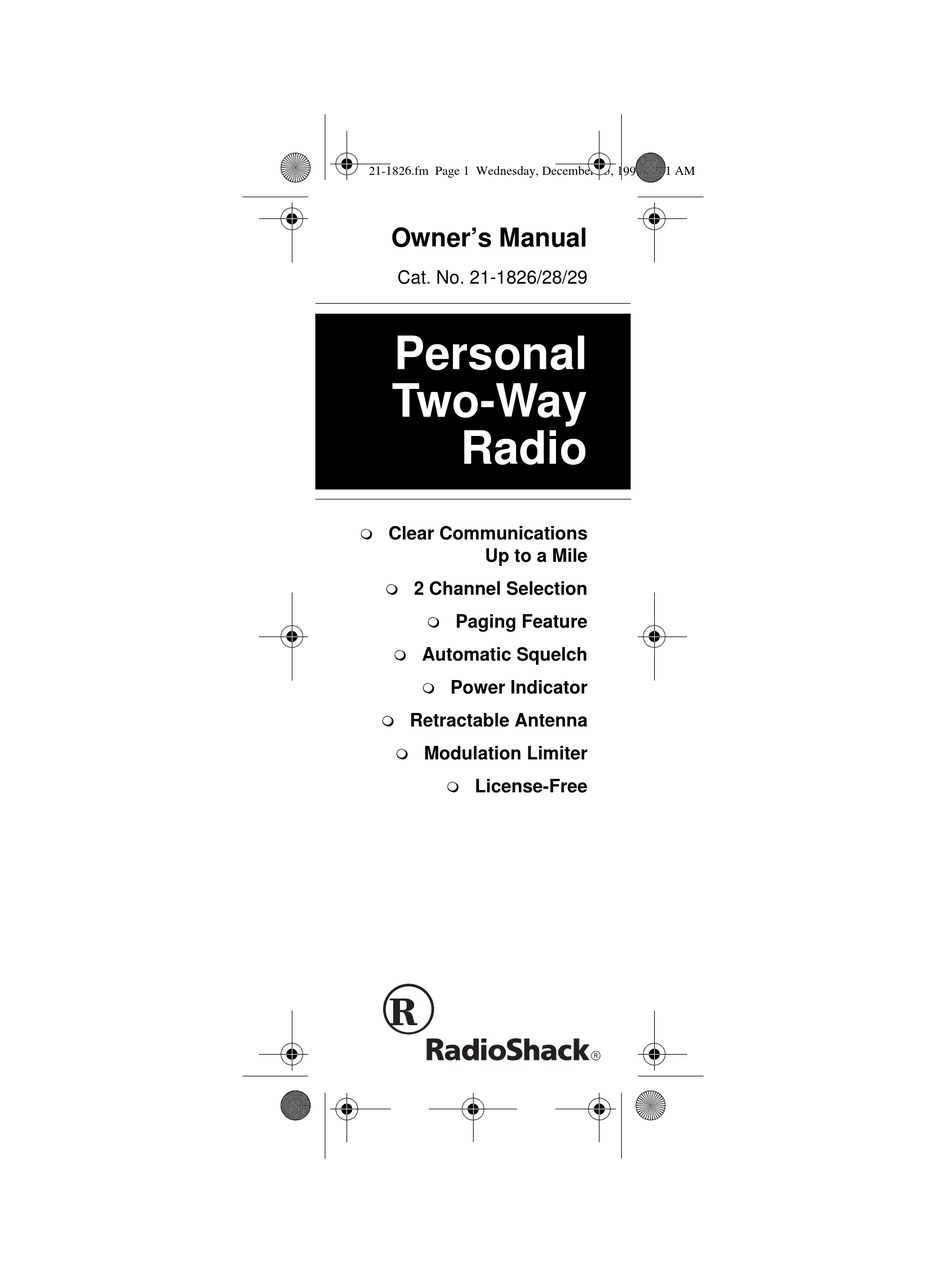

- Page 1 21-1826.fm Page 1 Wednesday, December 15, 1999 9:41 AM Owner’s Manual Cat. No. 21-1826/28/29 Personal Two-Way Radio • Clear Communications Up to a Mile • 2 Channel Selection • Paging Feature • Automatic Squelch • Power Indicator • Retractable Antenna •...
- Page 2 21-1826.fm Page 2 Wednesday, December 15, 1999 9:41 AM INTRODUCTION RadioShack welcomes you to the next generation of personal commu- nication — the Family Radio Ser- vice (FRS). FRS is a new license- free, two-way, short-range voice ra- dio service that lets families and groups keep in touch with each oth- er on specific reserved channels.
-
Page 3: Installing Batteries
21-1826.fm Page 3 Wednesday, December 15, 1999 9:41 AM PREPARATION INSTALLING BATTERIES Your radio requires four AAA batter- ies (not supplied) for power. For the best performance and longest life, we recommend RadioShack alka- line batteries. You can also use Ra-... - Page 4 21-1826.fm Page 4 Wednesday, December 15, 1999 9:41 AM 2. To remove the battery com- partment cover, press the raised dots on the cover and slide it down. 3. Install the batteries, according to the polarity symbols (+ and –) inside.
-
Page 5: Selecting A Channel
21-1826.fm Page 5 Wednesday, December 15, 1999 9:41 AM SELECTING A CHANNEL 1. Remove the battery compart- ment cover. 2. To set the radio to transmit on Channel 1 , use a pointed object (such as a straightened paper clip) to slide the switch... -
Page 6: Operation
21-1826.fm Page 6 Wednesday, December 15, 1999 9:41 AM OPERATION Antenna On/Off/ Volume Control On/Off/Volume — rotate to turn the radio on and off and adjust the vol- ume. Warbling tones sound when you turn the radio on. Antenna — extend when receiving and transmitting. -
Page 7: Attaching The Belt Clip
21-1826.fm Page 7 Wednesday, December 15, 1999 9:41 AM ATTACHING THE BELT CLIP Slide the belt clip onto the tab at the back of the radio until it clicks. Then slide the clip over your belt. To re- move the clip, pull up on the middle tab of the clip and slide the clip down. - Page 8 21-1826.fm Page 8 Wednesday, December 15, 1999 9:41 AM CARE To enjoy your Personal Two-Way Radio for a long time: • Keep the radio dry. If it gets wet, wipe it dry immediately. • Use and store the radio only in normal temperature environ- ments.
-
Page 9: Fcc Notice
21-1826.fm Page 9 Wednesday, December 15, 1999 9:41 AM FCC NOTICE Important: Do not open your radio to make any internal adjustments. Your radio is set to transmit a regu- lated signal on an assigned fre- quency. It is against the law to alter or adjust the settings inside the ra- dio to exceed those limitations. - Page 10 21-1826.fm Page 10 Wednesday, December 15, 1999 9:41 AM Using your radio as described in this manual exposes you to RF energy well below the FCC’s recommended limits. This device complies with Part 15 of the FCC Rules . Operation...
-
Page 11: Specifications
21-1826.fm Page 11 Wednesday, December 15, 1999 9:41 AM SPECIFICATIONS Channel ... 2 : 1 and 8 Power Output ... 100 mW Frequency ... 462.5625 MHz or 467.5625 MHz Battery Life: Alkaline ... 22 Hours (1050 mAh) Ni-Cd ... 7 Hours... - Page 12 21-1826.fm Page 12 Wednesday, December 15, 1999 9:41 AM Limited Ninety-Day Warranty This product is warranted by RadioShack against manufacturing defects in material and workman- ship under normal use for ninety (90) days from the date of purchase from RadioShack company- owned stores and authorized RadioShack franchi- sees and dealers.
