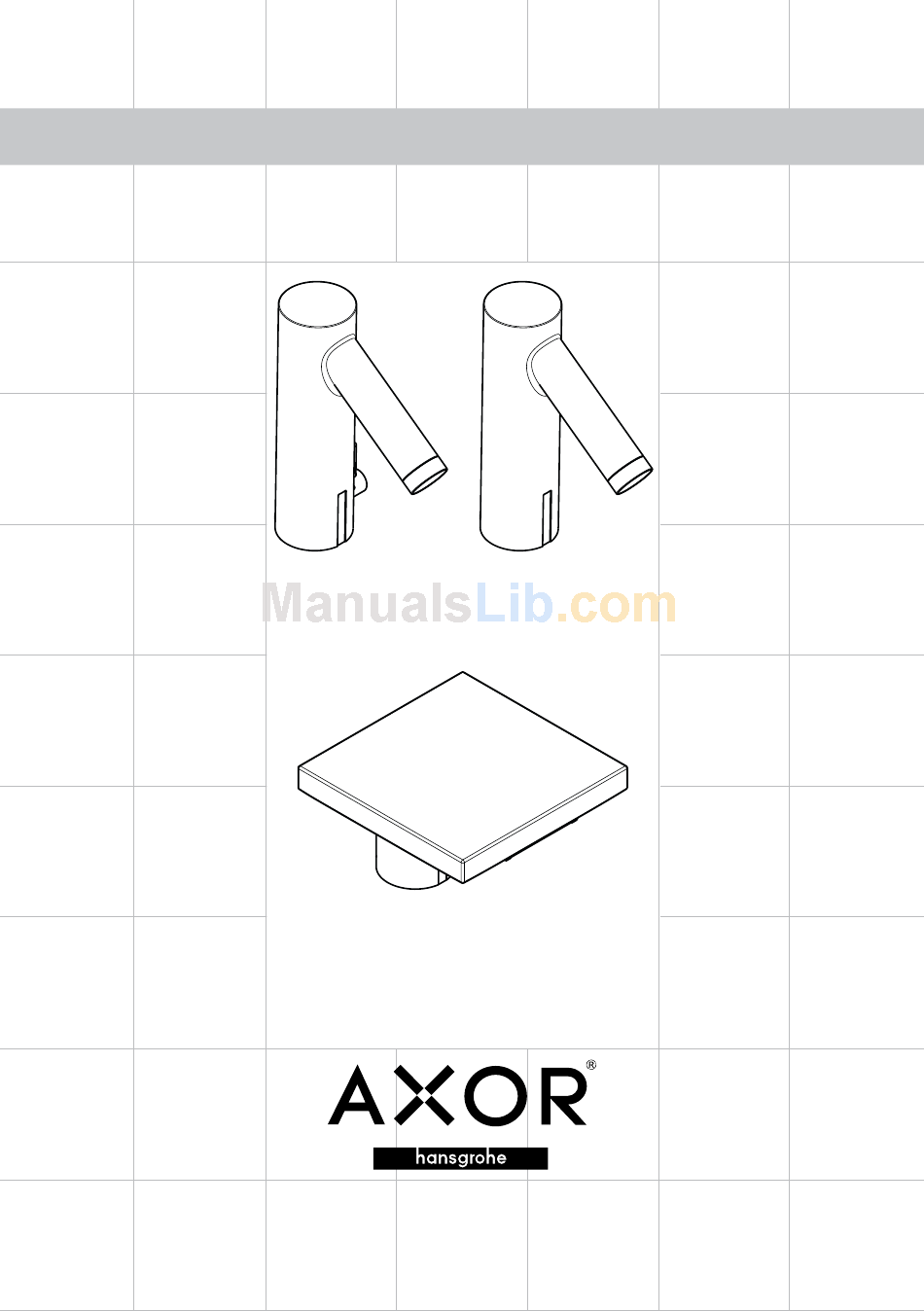

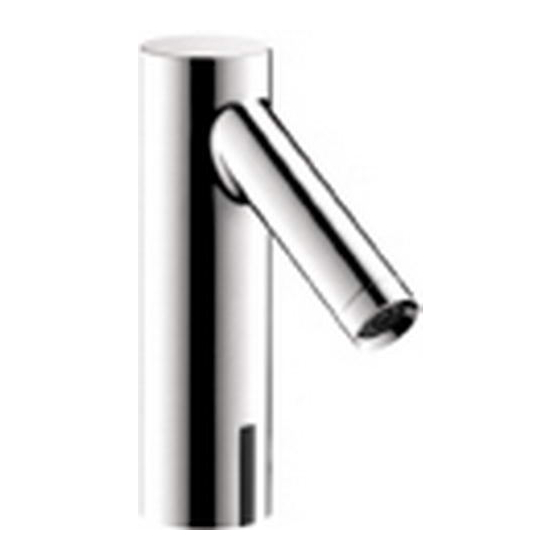

- Page 1 Installation Instructions / Warranty Starck 10101XX1 10140XX1 Starck 10106XX1 10145XX1 Starck X 10170001 10175001 10180001 10185001...
- Page 2 Starck 10101XX1/10106XX1 Starck X 10170001/10175001 Starck 10140XX1/10145XX1 Starck X 10180001/10185001...
-
Page 3: Technical Information
Starck 10101XX1/10106XX1/10140XX1/10145XX1 Do not install this faucet on a sink with a raised lip. Technical Information Recommended water pressure Max. water pressure Max. hot water temp. Recommended hot water temp. Max. flow rate Battery Automatic shutoff *Please know and follow all local plumbing codes when setting the temperature on the water heater. **This is the maximum amount of time the faucet will run while a hand is within range of the sensor. -
Page 4: Installation Notes
Installation notes • Flush the hot and cold supplies thoroughly before installing the faucet. Damage to the faucet caused by debris is not covered under the warranty. • The hot and cold supplies should be of equal pressure. The faucet should not be used with a con- •... -
Page 5: Installation
Installation Position the faucet on the sink or countertop (1). Install and tighten the mounting nut (). Tighten the tensioning screws (). Connect the /8” adapters to the stops (4). Connect the hoses to the adapters (5). Tighten the hoses with two wrenches, as shown, to prevent the hoses from twisting. - Page 6 Connect the faucet power cable to the battery pack or AC power pack (1). Plug the AC power pack in. Turn the hot and cold supplies on (). Remove the protective film from the sensor window (). Wait 0 seconds before attempting to use the faucet (4).
- Page 7 Remove the faucet body (1). Turn the temperature screw forward to make the water cooler, backward to make it warmer (). Dry any drops of water from the faucet or mounting surface. Replace the faucet body (1). Replace the screw (). Turn the water supplies on ().
- Page 8 Battery Replacement -- models 10101XX1/ 10106XX1/10170001/10175001 only If the LED in the sensor window flashes, the battery is low, but the faucet can still be used. If the LED lights continuously, the battery must be changed before the faucet can be used. Remove the four screws and the battery pack cover.
- Page 9 Clean the aerator and filters -- all models If the water flow is reduced over time, clean the aerator (a) and the filters (b). Turn the water supplies off (1). Disconnect the power cable (). Starck 10101/10106/10140/10145 -- unscrew and remove the aerator (a).
- Page 10 Turn the water on (1). Reconnect the power cable (). Wait 30 seconds (1). Place a hand in front of the sensor to turn the faucet on ().
- Page 11 Cleaning The faucet may be turned off temporarily so that the sink may be cleaned. Cover the sensor window with a hand for approximately 10 seconds. The faucet will turn off for approximately 60 seconds, so that the sink may be cleaned. The LED in the sensor window will flash.
- Page 12 Change the Spray Former -- Starck X 10170 / 10175 / 10180 / 10185 only The waterfall spray former is installed on the faucet at the fac- tory. A round monospray spray former is included with the faucet. The spray former may be changed easily, if desired. Use a mm Allen wrench to remove the spray former screws.
- Page 13 Reduce the Sensor Range The sensor is set for maximum range at the factory. If the faucet is used on a very small or highly reflective lavatory, the sensor range may be reduced by ap- proximately ”. Disconnect the power cable for approximately 10 seconds (1).
-
Page 14: Replacement Parts
Replacement Parts battery, lithium connection hose spray former aerator, Starck fixing set electronics, Starck electronics, Starck X AC adapter battery box check valve aerator, Starck X CR-P / 6V XX = color 880000 00 = chrome 8867000 80 = Steel 57XX0 161000 87000... -
Page 15: Limited Lifetime Consumer Warranty
Cleaning Recommendation for Hansgrohe Products Modern lavatory faucets, kitchen faucets, and showers consist of very different materials to comply with the needs of the market with regard to design and functionality. To avoid damage and returns, it is necessary to consider certain criteria when cleaning. - Page 16 (i) for 1 year, with respect to Hansgrohe and Commercial products, and (ii) for 5 years, with respect to AXOR products. THIS WARRANTY DOES NOT COVER, AND HANSGROHE WILL NOT PAY FOR: Conditions, malfunctions or damage not resulting from defects in material or workmanship.
