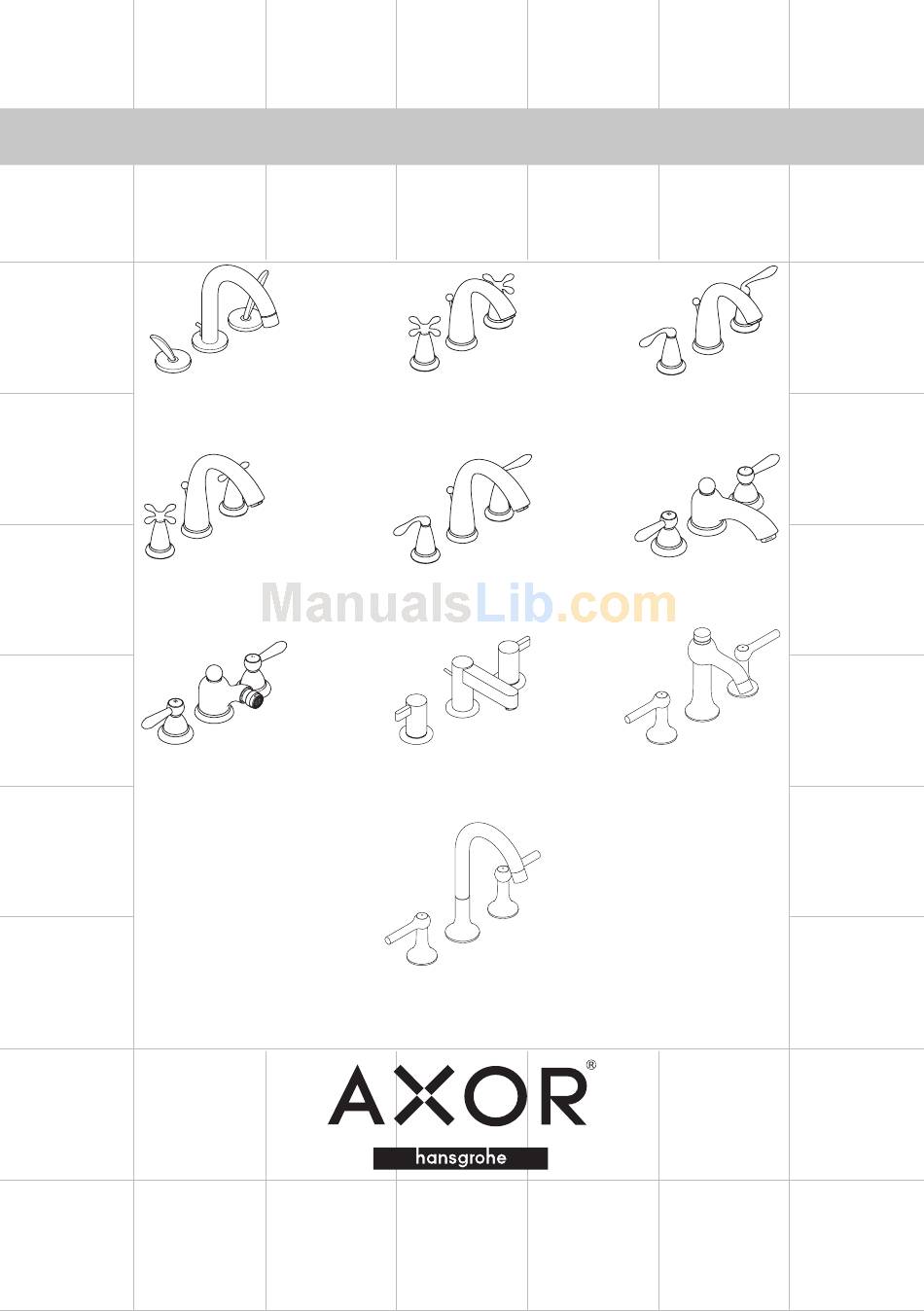

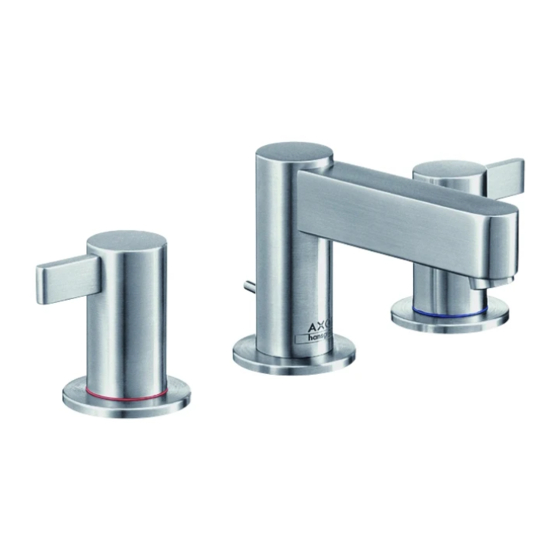

- Page 1 Installation Instructions / Warranty Starck 10133XX1 Phoenix 17114XX1 Carlton 17235XX1 Phoenix 17104XX1 Phoenix 17115XX1 Steel 35033801 Terrano 37136XX1 Phoenix 17105XX1 Carlton 17135XX1 Terrano 37135XX1...
- Page 2 Starck 10133XX1 Phoenix 17105XX1 Phoenix 17104XX1 Phoenix 17114XX1...
- Page 3 Phoenix 17115XX1 Carlton 17235XX1 Carlton 17135XX1 Steel 35033801...
-
Page 4: Technical Information
Terrano 37136XX1 Technical Information Recommended water pressure Max. water pressure Recommended hot water temp. Max. hot water temp Hole size - spout Hole size - valve Max. mounting surface depth Flow rate -- 17104/17105 only Flow rate -- all other models Requires 1/2"... - Page 5 Installation Starck only Remove the valve mounting nuts from the valves. Push the valves up into the holes. Install the mounting nuts on the valves. Tighten the tensioning screws. Place the handles over the valve mounting nuts. Tighten the handles by rotating the escutcheons clockwise. The handles should be parallel to the basin.
- Page 6 Screw the connection hoses into the mounting angle. Connect the mounting angle to the spout tube using the 10 mm compression fitting. The metal side of the compression ferrule must face up toward the spout. Turn to page 10 to continue the installation.
- Page 7 Installation – Carlton, Phoenix, Terrano, and Steel Install the hot and cold valves Install the mounting nut, metal washer and the fiber washer on the valve. Insert the valve through the hole in the deck. Install the stop ring on the valve. Install the mounting flange.
- Page 8 Steel only Install the color rings: red on the left and blue on the right. Install the handle snap connectors. Position the handle over the valve. Push it firmly into place on the snap connector. Install the spout Carlton only Place the spout and sealing ring on the mounting surface.
- Page 9 Steel only Position the spout, escutcheon and sealing ring on the mounting surface. Install the mounting flange. Thread the collar onto the stud and tighten. Terrano 37136XX1, Phoenix only Position the spout and sealing ring on the mounting surface. Install the mounting flange. Thread the collar onto the stud and tighten.
-
Page 10: All Models
All models Install the drain pull rod Install the connecting hoses Push a 3/8" compression nut and ferrule over the end of the connecting hose. Push the end of the hose into the valve outlet. Tighten the compression nut wrench tight. Use two wrenches. -
Page 11: Install The Pop-Up Drain
Install the pop-up drain Remove the plunger assembly. Unscrew the drain outlet flange from the tee. Unscrew the tailpiece from the tee. Wrap the threads with Teflon tape and replace. Install the flexible white sealing gasket on the flange. Place it in the sink outlet. Install the black mack gasket, white friction ring and retainer nut on the flange. -
Page 13: Replacement Parts
Replacement Parts Starck handle cold cartridge hot cartridge aerator drain pull rod spout connection hose fixing set Carlton lever, cold Carlton lever, hot aerator -- 17104/17105 13185XX0 other models drain pull rod fixing set Terrano lever, cold Terrano lever, hot aerator 1001XX0 4008000... - Page 14 Replacement parts – Axor Steel aerator cpl. 6683800 Steel handle 3523800 color-ring cold/hot water 7127000 escutcheon 7128800 connection hose 4071001 cold cartridge 4008000 Fixation cpl. 6016000 Lift rod 6657800 hot cartridge 400000...
-
Page 15: Limited Lifetime Consumer Warranty
Cleaning Recommendation for Hansgrohe Products Modern lavatory faucets, kitchen faucets, and showers consist of very different materials to comply with the needs of the market with regard to design and functionality. To avoid damage and returns, it is necessary to consider certain criteria when cleaning. - Page 16 (i) for 1 year, with respect to Hansgrohe and Commercial products, and (ii) for 5 years, with respect to AXOR products.
