TABLE OF CONTENTS
Location of PC Boards .................................................... 1-1
Electronic Specification ................................................... 1-2
Measurement Setup ....................................................... 1-3
Service Aids ................................................................... 1-4
Items Of Safety Attention ......................................1-5 to 1-6
Instruction On CD Playability .................................1-7 to 1-8
Software Version Check & Upgrade .............................. 2-1
Malfuction Check Chart .................................................. 2-2
...................................................3-1
Block Diagram ................................................................. 4-1
Wiring Diagram................................................................. 4-2
USB Board ..........................................................................5
Circuit diagram ........................................................... 5-1
Layout diagram ........................................................... 5-1
LED Display Board .............................................................6
Circuit diagram ...........................................................
Layout diagram ...........................................................
Power Board .......................................................................7
Circuit diagram ............................................................ 7-1
Layout diagram ...........................................................7-2
2008
XL 0911
Decoder Board ....................................................................8
Circuit Diagram ................................................ 8-1 to 8-6
Layout Diagram .......................................................... 8-7
Exploded View ................................................................ 9-1
Service Parts List .......................................................... 10-1
Factory Parts List .............................................. 11-1 to 11-2
.
6-1
.
6-2
MCD110
3141 785 32520
Advertisement
Table of Contents
Related Manuals for Philips MCD110
Summary of Contents for Philips MCD110
-

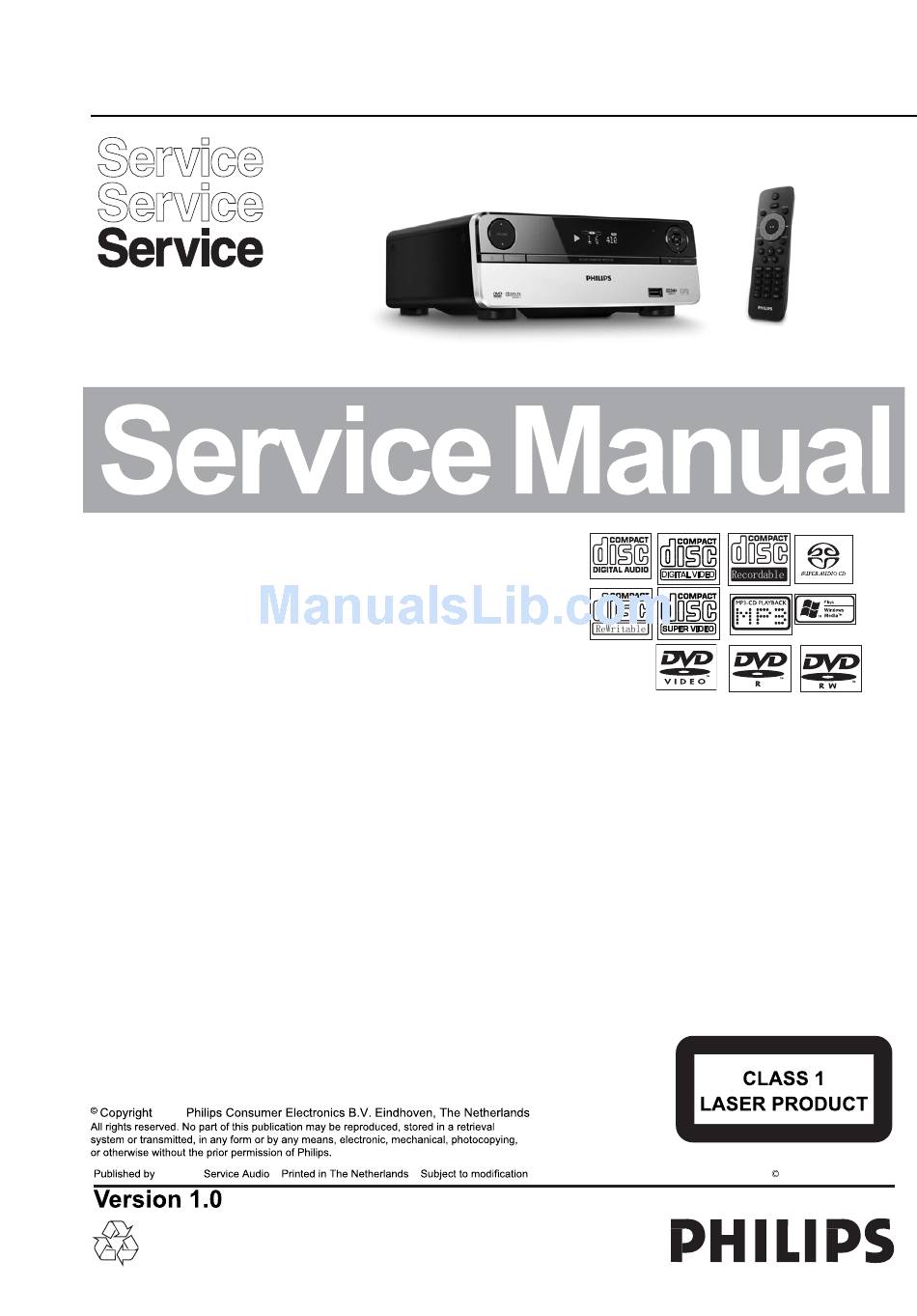

Page 1: Table Of Contents
MCD110 DVD Micro System TABLE OF CONTENTS Location of PC Boards ............ 1-1 Electronic Specification ........... 1-2 Measurement Setup ............1-3 Decoder Board ..............8 Service Aids ..............1-4 Circuit Diagram ..........8-1 to 8-6 Items Of Safety Attention ........1-5 to 1-6 Layout Diagram ............ -
Page 2: Location Of Pc Boards
Location of PC Boards LED Display Board Power Board USB Board Decoder Board VERSION VARIATIONS : Type /Versions: MCD110 Service policy Board in used: LED DISPLAY BOARD USB BOARD POWER BOARD DECODER BOARD Type /Versions: MCD110 Features Feature diffrence VOLTAGE SELECTOR ECO STANDBY - DARK * TIPS : C -- Component Lever Repair. -
Page 3: Electronic Specification
Electronic Specification AMPLIFIER SPEAKERS Rated Output Power ......... NA Speaker Impedance ........... NA Signal-to-noise ratio ......... NA Speaker Driver, base ..........NA Frequency response ......... NA Speaker Driver, tweeter ..........NA Aux Input ............NA Frequency Response ..........NA DISC GENERAL INFORMATION Laser Type ........ -
Page 4: Measurement Setup
Measurement Setup Tuner FM Bandpass LF Voltmeter 250Hz-15kHz e.g. PM2534 e.g. 7122 707 48001 RF Generator e.g. PM5326 S/N and distortion meter e.g. Sound Technology ST1700B Use a bandpass filter to eliminate hum (50Hz, 100Hz) and disturbance from the pilottone (19kHz, 38kHz). Tuner AM (MW,LW) Bandpass LF Voltmeter... -
Page 5: Service Aids
LASER PRODUCT be used Safety components are marked by the symbol INFORMATION ABOUT LEAD-FREE SOLDERING Philips CE is producing lead-free sets from 1.1.2005 onwards. IDENTIFICATION: onwards,according next rules: Regardless of special logo(not always indicated) one must treat all sets from... - Page 6 tems of Safety Attention Maintenance Attention Common Soldering Rules Use only grounded low-voltage soldering iron, and proper size and Attention: Please read tems of Safty Attention carefully. f shape which can sustain the temperature of soldering horn to there are une pected conflicts between safefy attention and range from 350 to 390.
-
Page 7: Items Of Safety Attention
Items of Safety Attention After unsoldering the unusable diode, nip its body and take it out. Bend the two pins and the diode is vertical to circuit board. Check the polarity of the diode, then place its pins to the correct location. -
Page 10: Software Version Check & Upgrade
Software Version Check & Upgrade Upgrade software 1.Download the software from Philips support website: http://www.philips.com/support 2. Load the CD Disc or USB device with software,Software upgrade procedure starts automatically TV Screen Display: Upgrade file detected Upgrade? Press Play to start Press”Play”on the main set... - Page 11 Malfunction Follow Check Chart Not power Not sound Time/Clock does not work No display Check if the Power Cord Adjust the volume Plug in the power cord Check the files or folders in is connected USB or others devices has not exceeded the certain limit Check the speakers Switch on the Timer...
-
Page 12: Disassembly Diagram
Disassembly Diagram A.Open the DVD Door and loose 2 clipps B.Remove the Top-cabinet C. Loose 1pc screw(3 x 8 BA) to remove to remove the door B1.Loose 2pcs screws(3 x 6 KB) of both side the Power Board near to the back side. B2.Loose 2pcs screws(3 x 8 Km) of both side near to the front cabinet. -
Page 13: Block Diagram
Block Diagram M3.3V M1.8V OP/CL LOAD+ LOAD+ STBY/ECO PWER LOAD- LOAD- Main chipset AISHANG Pick Up DVD Loader RESET USB ON AISHANG DVD LOADER 27MHZ MTL1389DE-LESL YUV/RGB CVBS USB VCC AUDIO L/ROUT USB I2C MUTE DATA/ CLK /STB/IR VFD Driver DATA/CLK/STB POWER BOARD TM1628... -
Page 14: Wiring Diagram
Wiring Diagram Display Board DVD Mechanism Driver Power Board Decoder Board USB Board... -
Page 15: Circuit Diagram
Small Board -- Layout & Circuit Diagram... - Page 16 LED Display Board -- Circuit Diagram LED101 U101 TM1628 R101 LED1 ULX-3661CY DATA S101 SENSOR R106 C101 R105 C103 220uF/16V LED102 R108 C102 2.2k R107 C104 4.7K 100uF Q101 ECO POWER R109 1.2K 8050 CN102 ECO POWER open/close |<< >> play <<...
-
Page 17: Layout Diagram
LED Display Board -- Layout Diagram... -
Page 18: Power Board
Power Board -- Circuit Diagram 102/400V 330uH/0.5A 1MR 1206 102/100V 1MR 1206 10uH/1.5A CON2 YT1604 SB340 07561 330R/0805 PC817C 104/0805 24K/0805 104/280V TL431A CON1... - Page 19 Power Board -- Layout Diagram...
- Page 20 Decoder Board -- Circuit Diagram Name Card+MIC(ADC) Card+VGA Card+Scart * Card+MIC(ADC)+VGA * Card+MIC(ADC)+Scart MIC(ADC)+Scart+VGA Card+MIC(ADC)+Scart DVD Player Main Board FG/GPIO2 TRIN TRIN TRIN TRIN TRIN TRIN TRIN GPIO3/INT# VSTB VSTB VSTB VSTB VSTB VSTB VSTB (TXD for 89R Defau lt) (MT1389 L/MT1389 R &...
- Page 21 Decoder Board -- Circuit Diagram +5VA D203 D204 D205 L201 LD-DVD 10uH 1N4001 1N4001 1N4001 R208 R209 Q201 LDO_DVD ADJ_18 Q203 Q204 2SB1132 2SC8550D 2SC8550D CE201 R201 47uF/6.3V R202 Vout CE202 CE203 R210 R212 Q202 LDO_CD LDO_CD 2SB1132 47uF/6.3V LDO_CD 100 uF/6.3V 4.7K;1% FBI_18...
- Page 22 Decoder Board --Circuit Diagram GPIO7 GPIO7 R301 FB312 FB311 FB310 ADACVDD APLLVDD3 AADVDD GPIO8 GPIO8 GPIO9 100K GPIO9 C332 CE306 C327 CE305 C326 CE304 GPIO10 Y301 GPIO10 FB301 FB302 0.1uF 470 uF/16V 0.1uF 100 uF/6.3V 6800 pF 470 uF/16V GPIO11 GPIO11 GPIO19 GPIO19...
- Page 23 Decoder Board -- Circuit Diagram SF_CK SF_CK SF_CS SF_CS SDV33 SF_DO SF_DO FB401 SF_DI SF_DI C401 CE401 C402 C403 C404 C405 C406 C407 0.1uF 100uF/16V 0.1uF 0.1uF 0.1uF 0.1uF 0.1uF 0.1uF S-FLASH I/F DQM0 DQM0 DQM1 DQM1 SDV33 DCLK DCLK U401 DQ10 R401...
- Page 24 Decoder Board -- Circuit Diagram R514 -12VA R502 C502 # mute: ASP DIF ASP DIF 100pF unmute: L R512 R513 MUTE MUTE R515 U501A 10K/NC Q504 CE501 R501 R503 2N3906 LSCH 4558 LSCH R504 R511 MUTE Q503 RSCH 5.1K RSCH 10uF/16V 2N3904 C501...
- Page 25 Decoder Board -- Circuit Diagram -12VA +12VA C610 C611 C612 C613 C614 C615 0.1uF 0.1uF 0.1uF 0.1uF 0.1uF 0.1uF -12VA R602 C602 A_MUTE A_MUTE 100pF MUTE MUTE U601A CON601 CE601 R601 R603 4558 SCART SETTING AND OUTPUT R604 LSCH RGB-SW ScartPin8 ScartPin16 5.1K...
-
Page 26: Decoder Board
Decoder Board... -
