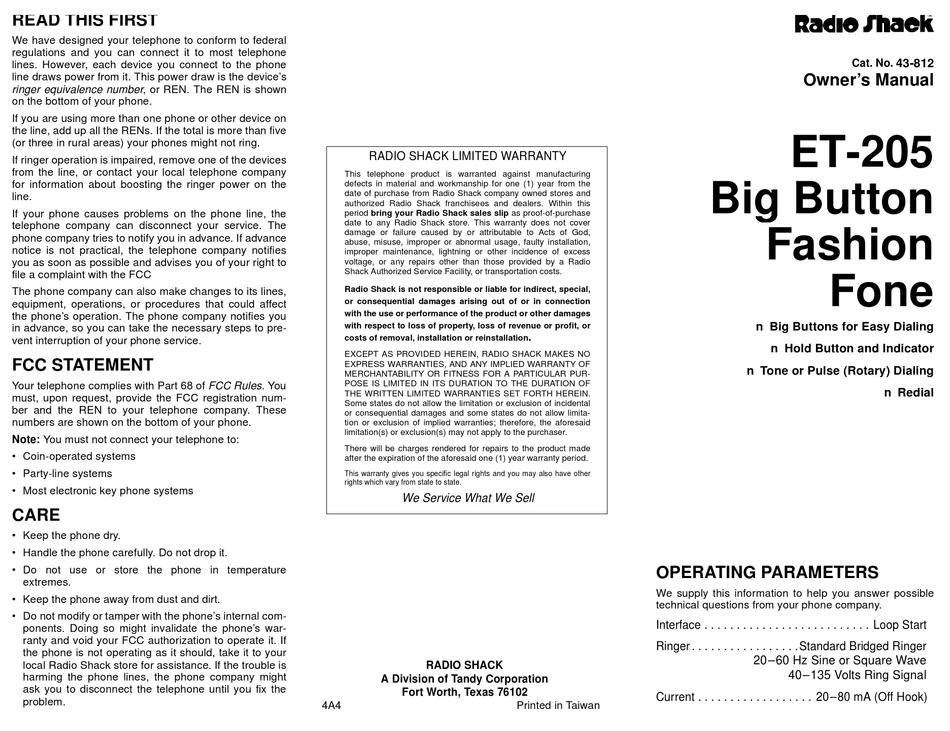

Radio Shack ET-205 Owner's Manual

READ THIS FIRST Resistance . . . . . . . . . . . . . . . . . 5 MOhm (On Hook)
140– 300 Ohms (Off Hook)
We have designed your telephone to conform to federal
This telephone is hearing aid compatible. regulations and you can connect it to most telephone
lines. However, each device you connect to the phone
line draws power from it. This power draw is the device's
ringer equivalence number , or REN. The REN is shown
on the bottom of your phone.
If you are using more than one phone or other device on
the line, add up all the RENs. If the total is more than five
(or three in rural areas) your phones might not ring.
If ringer operation is impaired, remove one of the devices
from the line, or contact your local telephone company
for information about boosting the ringer power on the
line.
If your phone causes problems on the phone line, the
telephone company can disconnect your service. The
phone company tries to notify you in advance. If advance
notice is not practical, the telephone company notifies
you as soon as possible and advises you of your right to
file a complaint with the FCC
The phone company can also make changes to its lines,
equipment, operations, or procedures that could affect
the phone's operation. The phone company notifies you
in advance, so you can take the necessary steps to pre-
vent interruption of your phone service.

FCC STATEMENT

Your telephone complies with Part 68 of FCC Rules . You
must, upon request, provide the FCC registration num-
ber and the REN to your telephone company. These
numbers are shown on the bottom of your phone.
Note: You must not connect your telephone to:
• Coin-operated systems
• Party-line systems
• Most electronic key phone systems
CARE
• Keep the phone dry.
• Handle the phone carefully. Do not drop it.
• Do not use or store the phone in temperature
extremes.
• Keep the phone away from dust and dirt.
• Do not modify or tamper with the phone's internal com-
ponents. Doing so might invalidate the phone's war-
ranty and void your FCC authorization to operate it. If
the phone is not operating as it should, take it to your
local Radio Shack store for assistance. If the trouble is
harming the phone lines, the phone company might
ask you to disconnect the telephone until you fix the
problem.
RADIO SHACK LIMITED WARRANTY
This telephone product is warranted against manufacturing
defects in material and workmanship for one (1) year from the
date of purchase from Radio Shack company owned stores and
authorized Radio Shack franchisees and dealers. Within this
period bring your Radio Shack sales slip as proof-of-purchase
date to any Radio Shack store. This warranty does not cover
damage or failure caused by or attributable to Acts of God,
abuse, misuse, improper or abnormal usage, faulty installation,
improper maintenance, lightning or other incidence of excess
voltage, or any repairs other than those provided by a Radio
Shack Authorized Service Facility, or transportation costs.
Radio Shack is not responsible or liable for indirect, special,
or consequential damages arising out of or in connection
with the use or performance of the product or other damages
with respect to loss of property, loss of revenue or profit, or
costs of removal, installation or reinstallation
EXCEPT AS PROVIDED HEREIN, RADIO SHACK MAKES NO
EXPRESS WARRANTIES, AND ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PUR-
POSE IS LIMITED IN ITS DURATION TO THE DURATION OF
THE WRITTEN LIMITED WARRANTIES SET FORTH HEREIN.
Some states do not allow the limitation or exclusion of incidental
or consequential damages and some states do not allow limita-
tion or exclusion of implied warranties; therefore, the aforesaid
limitation(s) or exclusion(s) may not apply to the purchaser.
There will be charges rendered for repairs to the product made
after the expiration of the aforesaid one (1) year warranty period.
This warranty gives you specific legal rights and you may also have other
rights which vary from state to state.
We Service What We Sell
RADIO SHACK
A Division of Tandy Corporation
Fort Worth, Texas 76102
4A4
.

OPERATING PARAMETERS

We supply this information to help you answer possible
technical questions from your phone company.
Interface . . . . . . . . . . . . . . . . . . . . . . . . . . Loop Start
Ringer . . . . . . . . . . . . . . . . . Standard Bridged Ringer
Current . . . . . . . . . . . . . . . . . . 20 –80 mA (Off Hook)
Printed in Taiwan
Cat. No.
Owner's Manual
ET-205
Big Button
Fashion
Fone
n Big Buttons for Easy Dialing
n Hold Button and Indicator
n Tone or Pulse (Rotary) Dialing
n Redial
20 –60 Hz Sine or Square Wave
40– 135 Volts Ring Signal
43-812
