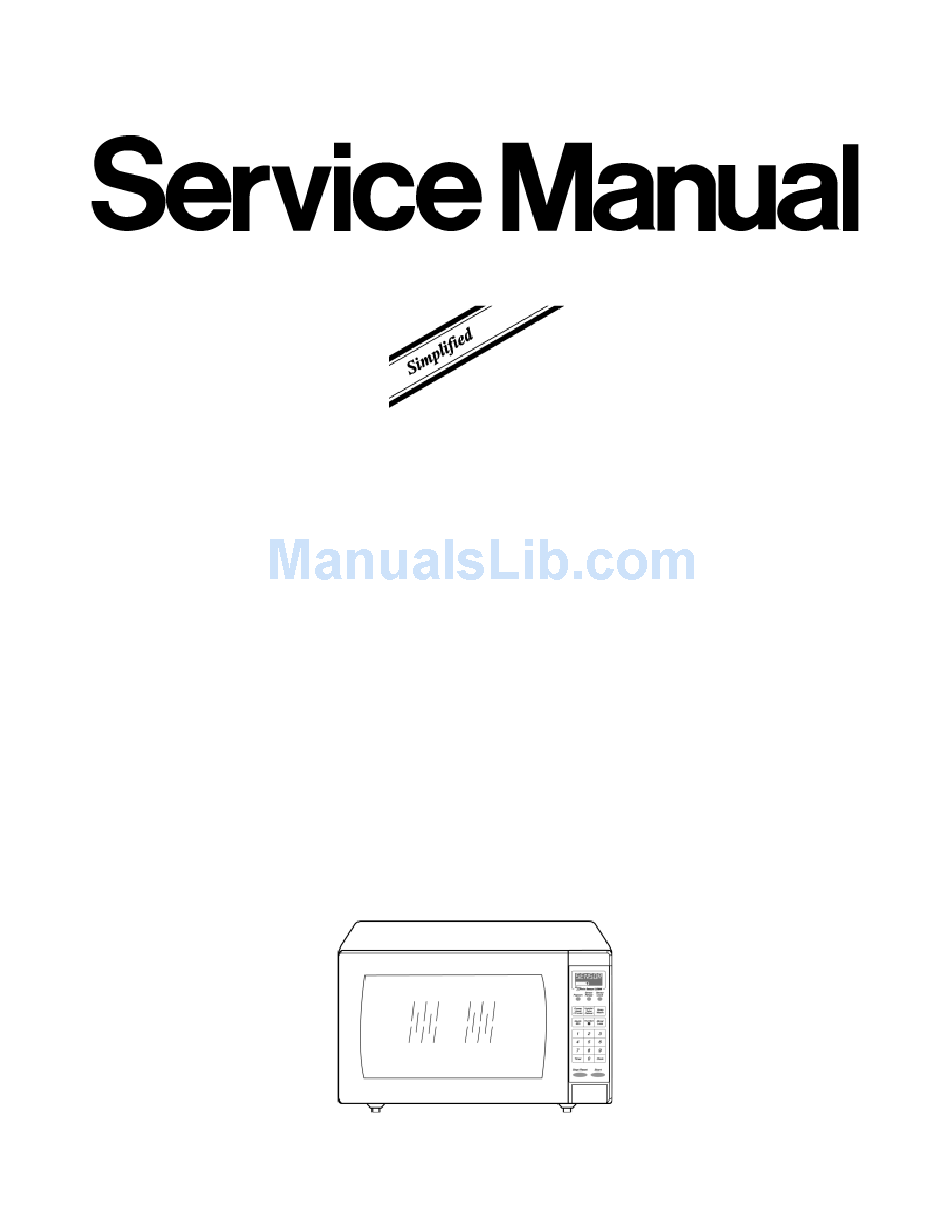

Page 1 of 23
ORDER NO.PHAMOS0501005A7
E1
Microwave Oven
NN-P994SFR
NN-P994BFR
NN-P994WFR NN-T995
NN-T985SF NN-T975SF
NN-T965SF NN-T955SF
NN-T945SF NN-T935SF
NN-T994SFR NN-T964SFR
NN-H965 NN-S955
NN-H935 NN-S935
NN-S954BFR NN-S954WFR
NN-S934BFR NN-S934WFR
APH(USA)
CPH(CANADA)
RPH(Mexico/Latin American)
Please file and use this specified manual together with the service manual for Model NN-T695 (ORDER NO.
PHAMOS0501001C1).
http://tsn.pstc.panasonic.com/viewing/NAOT/NN-P994SFR/SIMP/PHAMOS0501005A7/...
8/29/2011
Advertisement
Table of Contents
Related Manuals for Panasonic NN-P994BFR
Summary of Contents for Panasonic NN-P994BFR
-
Page 1: Microwave Oven
Page 1 of 23 ORDER NO.PHAMOS0501005A7 Microwave Oven NN-P994SFR NN-P994BFR NN-P994WFR NN-T995 NN-T985SF NN-T975SF NN-T965SF NN-T955SF NN-T945SF NN-T935SF NN-T994SFR NN-T964SFR NN-H965 NN-S955 NN-H935 NN-S935 NN-S954BFR NN-S954WFR NN-S934BFR NN-S934WFR APH(USA) CPH(CANADA) RPH(Mexico/Latin American) Please file and use this specified manual together with the service manual for Model NN-T695 (ORDER NO. - Page 2 Page 2 of 23 © 2005 Panasonic Home Appliances Microwave Oven (Shanghai) Co., Ltd. All rights reserved. Unauthorized copying and distribution is a violation of law. http://tsn.pstc.panasonic.com/viewing/NAOT/NN-P994SFR/SIMP/PHAMOS0501005A7/... 8/29/2011...
- Page 3 Page 3 of 23 http://tsn.pstc.panasonic.com/viewing/NAOT/NN-P994SFR/SIMP/PHAMOS0501005A7/... 8/29/2011...
-
Page 4: Schematic Diagram
Page 4 of 23 1 SCHEMATIC DIAGRAM 1.1 APH 1.2 CPH 1.3 RPH http://tsn.pstc.panasonic.com/viewing/NAOT/NN-P994SFR/SIMP/PHAMOS0501005A7/... 8/29/2011... -
Page 5: Measurements And Adjustments
Make sure that the latch keys move smoothly after adjustment is completed. Completely tighten the screws holding the door hook assembly to the oven assembly. Reconnect the short switch and check the continuity of the monitor circuit and all latch switches again by following the component test procedures. http://tsn.pstc.panasonic.com/viewing/NAOT/NN-P994SFR/SIMP/PHAMOS0501005A7/... 8/29/2011... -
Page 6: Measurement Of Microwave Output
The normal temperature rise at High power level for each model is as shown in table. TABLE (1L-1min.test) RATED OUTPUT TEMPERATURE RISE 1200W Min. 18.5° F(10.3° C) 1300W Min. 19.8° F(11.1° C) 3 PROCEDURE FOR MEASURING MICROWAVE ENERGY LEAKAGE http://tsn.pstc.panasonic.com/viewing/NAOT/NN-P994SFR/SIMP/PHAMOS0501005A7/... 8/29/2011... -
Page 7: Procedure For Measuring Radiation Leakage
A copy of this repair ticket and the microwave leakage reading should be kept by repair facility. Should the radiation leakage be more than 2 mW/cm (1mW/cm for Canada) after determining that all parts are in http://tsn.pstc.panasonic.com/viewing/NAOT/NN-P994SFR/SIMP/PHAMOS0501005A7/... 8/29/2011... -
Page 8: At Least Once A Year, Have The Radiation Monitor Checked For Calibration By Its Manufacturer
1. Between 0.5A Check and repair open Open magnetron wiring between Inverter and and 1.0A. magnetron circuit magnetron terminal. 2. Between 1.0A Check continuity of D702 in and 2.0A. Inverter PCB. Shut off in 23 seconds after http://tsn.pstc.panasonic.com/viewing/NAOT/NN-P994SFR/SIMP/PHAMOS0501005A7/... 8/29/2011... -
Page 9: Exploded View And Parts List
F00077B40HAP NAME PLATE S935WF APH F00077B10BAP NAME PLATE S954BFR APH F00077B10HAP NAME PLATE S954WFR APH F00077E40BAP NAME PLATE S934BFR APH F00077E40HAP NAME PLATE S934WFR APH F00077B30HRP NAME PLATE S955WF RPH F00337D00AP FUSE LABEL APH,CPH F00337D00RP FUSE LABEL F10016G10AP BASE http://tsn.pstc.panasonic.com/viewing/NAOT/NN-P994SFR/SIMP/PHAMOS0501005A7/... 8/29/2011... - Page 10 H9*5 APH,S9*5 APH,S954*FR APH,S934*FR APH, F900C4T00AP AC CORD W/PLUG T995 RPH,S955 RPH F900C4W10CP AC CORD W/PLUG F66626G10AP GROUNDING PLATE XTWFA4+12T SCREW FOR MAGNETRON F90804W00AP CANOE CLIP FOR COVER XTTANE4T12A0 SCREW FOR CABINET BODY FOR CABINET BODY SIDE XTTFA4+8BFZ SCREW (P994BFR,H9*5BF,S9*5BF,S9*4BFR) http://tsn.pstc.panasonic.com/viewing/NAOT/NN-P994SFR/SIMP/PHAMOS0501005A7/... 8/29/2011...
-
Page 11: Wiring Materials
P994SFR CPH F800L6G00SAP ESCUTCHEON BASE (U) P994SFR APH F800L6G00BAP ESCUTCHEON BASE (U) P994BFR APH F800L6G00HAP ESCUTCHEON BASE (U) P994WFR APH F800L6G00SCP ESCUTCHEON BASE (U) P994SFR CPH F66164W20AP FLAT CABLE P994*FR APH/CPH F82986G00SAP BUTTON P994SFR APH/CPH F82986G00BAP BUTTON P994BFR APH http://tsn.pstc.panasonic.com/viewing/NAOT/NN-P994SFR/SIMP/PHAMOS0501005A7/... 8/29/2011... - Page 12 F82985W00AP BUTTON T955SF APH,T994SFR APH F80724M60SCP DOOR OPENING BUTTON T9*5SF/SM,T9*4SFR APH F82565W00AP DOOR OPENING LEVER T955SF APH,T994SFR APH F80375K00AP COOK BUTTON SPRING F83377A60SAP MEMBRANE SHEET T955SF APH F83376G10SAP MEMBRANE SHEET T994SFR APH F90095X00AP GROUNDING PANEL T955SF APH,T994SFR APH http://tsn.pstc.panasonic.com/viewing/NAOT/NN-P994SFR/SIMP/PHAMOS0501005A7/... 8/29/2011...
- Page 13 H965BF APH,H935BF APH F630Y7B00HAP MEMBRANE SWITCH (U) H965WF APH,H935WF APH F630Y7B00BCP MEMBRANE SWITCH (U) H965BF CPH F630Y7B00HCP MEMBRANE SWITCH (U) H965WF CPH F630Y7B40BAP MEMBRANE SWITCH (U) S935BF APH F630Y7B40HAP MEMBRANE SWITCH (U) S935WF APH F00077B00BCP NAME PLATE H965BF CPH http://tsn.pstc.panasonic.com/viewing/NAOT/NN-P994SFR/SIMP/PHAMOS0501005A7/... 8/29/2011...
-
Page 14: Packing And Accessories
H965BF/WF APH,H935BF/WF APH MANUAL INSTRUCTION F00037C50CP H965BF/WF CPH MANUAL INSTRUCTION F00036J30AP S955BF/WF APH,S954BFR/S954WFR APH MANUAL INSTRUCTION F00037E20AP S935BF/WF APH MANUAL INSTRUCTION F00036J60AP S934BFR/WFR APH MANUAL INSTRUCTION F00037G50RP S955WF/WM RPH MANUAL PACKING F01027A00SAP P994SFR APH CASE,PAPER PACKING F01027A00BAP P994BFR APH CASE,PAPER http://tsn.pstc.panasonic.com/viewing/NAOT/NN-P994SFR/SIMP/PHAMOS0501005A7/... 8/29/2011... - Page 15 S935BF APH CASE,PAPER PACKING F01027B40HAP S935WF APH CASE,PAPER PACKING F01027B10BAP S954BFR APH CASE,PAPER PACKING F01027B10HAP S954WFR APH CASE,PAPER PACKING F01027E40BAP S934BFR APH CASE,PAPER PACKING F01027E40HAP S934WFR APH CASE,PAPER PACKING F01027B30HRP S955WF RPH CASE,PAPER PACKING F01027G10HRP S955WM RPH CASE,PAPER http://tsn.pstc.panasonic.com/viewing/NAOT/NN-P994SFR/SIMP/PHAMOS0501005A7/... 8/29/2011...
-
Page 16: Door Assembly
F31467B00HAP DOOR SCREEN B H9*5WF,S935WF APH,S9*4WFR F31466G40BAP DOOR SCREEN B S955BF APH F31466G40HAP DOOR SCREEN B S955WF APH,S955WF/WM RPH P994*FR APH,T9*5SF APH,T9*4SFR APH,T995SF/SM F02459660AP DHHS LABEL F04114180CP HC LABEL P994SFR CPH,T995SF CPH 6 DIGITAL PROGRAMMER CIRCUIT 6.1 P994*FR APH/CPH http://tsn.pstc.panasonic.com/viewing/NAOT/NN-P994SFR/SIMP/PHAMOS0501005A7/... 8/29/2011... - Page 17 Page 17 of 23 6.2 NN-T995SF APH/CPH, T995SF/SM RPH, T985SF 6.3 NN-T955SF APH, T994SFR APH 6.4 NN-T975SF/T965SF/T945SF/T935SF APH, T964SFR APH 6.5 NN-H965 APH/CPH, H935 APH 6.6 NN-S935 APH 6.7 NN-S955 RPH, S934*FR APH http://tsn.pstc.panasonic.com/viewing/NAOT/NN-P994SFR/SIMP/PHAMOS0501005A7/... 8/29/2011...
- Page 18 B1GDCFJJ0002 CHIP DIGI-TRANSISTOR Q182,Q223,Q224 B1GBCFEL0002 CHIP DIGI-TRANSISTOR Q10,Q180 B1BAAJ000003 TRANSISTOR D180-D189 AESQPY1112CK CHIP-LED D40,D220,D221,D223,D225 B0AACK000004 DIODE D226,D227 B0AACK000004 DIODE (P994*FR APH/CPH) D10,D11,D12,D13 AESSRCT1A6-E DIODE AERZ271KD10A VARISTOR 270V D26,D27 AERZ102KD10A VARISTOR 1100V (CPH) R10,R11,R311 AERDY2TJ102T CARBON FILM RESISTOR 1K ,1/4W,5% http://tsn.pstc.panasonic.com/viewing/NAOT/NN-P994SFR/SIMP/PHAMOS0501005A7/... 8/29/2011...
- Page 19 AESSRCT1A6-E DIODE AERZ271KD10A VARISTOR 270V D26,D27 AERZ102KD10A VARISTOR 1000V (CPH,RPH) R11,R16,R311 AERDY2TJ102T CARBON FILM RESISTOR 1K ,1/4W,5% R12,R180 AERDY2TJ103T CARBON FILM RESISTOR 10K ,1/4W,5% R290 AERDY2TJ104T CARBON FILM RESISTOR 100K ,1/4W,5% ZD10 B0BA5R600016 ZENER DIODE AEBGJQC25F18 POWER RELAY http://tsn.pstc.panasonic.com/viewing/NAOT/NN-P994SFR/SIMP/PHAMOS0501005A7/... 8/29/2011...
- Page 20 1K ,1/4W,5% R12,R180 AERDY2TJ103T CARBON FILM RESISTOR 10K ,1/4W,5% R290 AERDY2TJ104T CARBON FILM RESISTOR 100K ,1/4W,5% ZD10 B0BA5R600016 ZENER DIODE AEBGJQC25F18 POWER RELAY K6B1AZA00011 POWER RELAY LOW VOLTAGE AETP284T0AP 120V TRANSFORMER VZ340 AEVNNV6TL103 VARISTOR 6.9.4 NN-H965 APH/CPH, H935 APH http://tsn.pstc.panasonic.com/viewing/NAOT/NN-P994SFR/SIMP/PHAMOS0501005A7/... 8/29/2011...
- Page 21 SWITCH 6.9.5 NN-S935 APH Ref. No. Part No. Part Name & Description Pcs/Set Remarks BZ310 AEFBAT2001WQ BUZZER 2.0KHz C352 AECUU06C101J CHIP CAPACITOR 100PF/50V C330 AECUU06R102K CHIP CAPACITOR 1000PF/50V C222 AECUU06F103Z CHIP CAPACITOR 0.01µF/50V C15,C223,C350,C440 AECUT06F104Z CHIP CAPACITOR 0.1µF/25V http://tsn.pstc.panasonic.com/viewing/NAOT/NN-P994SFR/SIMP/PHAMOS0501005A7/... 8/29/2011...
- Page 22 AECUN06F105Z CHIP CAPACITOR 1µF/10V AECETK1V471B AL CHEM CAPACITOR 470µF/35V C13,C16 AECETS1C220B AL CHEM CAPACITOR 22µF/16V K1KA03AA0108 CONNECTOR F03524U50AP INV. HARNESS (U) K1KA04AA0086 CONNECTOR K1MN09AA0040 CONNECTOR CX320 EFOEC8004A4 CERAMIC RESONATOR 8MHz MN101C78ADE L.S.I. IC350 C0EBE0000401 IC DISP110 AEDDHJ7D40AP LCD http://tsn.pstc.panasonic.com/viewing/NAOT/NN-P994SFR/SIMP/PHAMOS0501005A7/... 8/29/2011...
- Page 23 B0BA4R400002 ZENER DIODE AEBGJQC25F18 POWER RELAY K6B1AZA00011 POWER RELAY AETP284T0AP LOW VOLTAGE TRANSFORMER VZ490 AEVNNV6TL103 VARISTOR 01/05 S-7A0, S-7A1 S-7A2, S-7A3 S-7A4, S-7A5 S-7A6, S-7A7 S-7A8, S-7A9 S-7B0, S-7B1 S-7B2, S-7B3 S-7B4, S-7E3 S-7E4, S-7G0 S-7G1 Printed in China http://tsn.pstc.panasonic.com/viewing/NAOT/NN-P994SFR/SIMP/PHAMOS0501005A7/... 8/29/2011...
