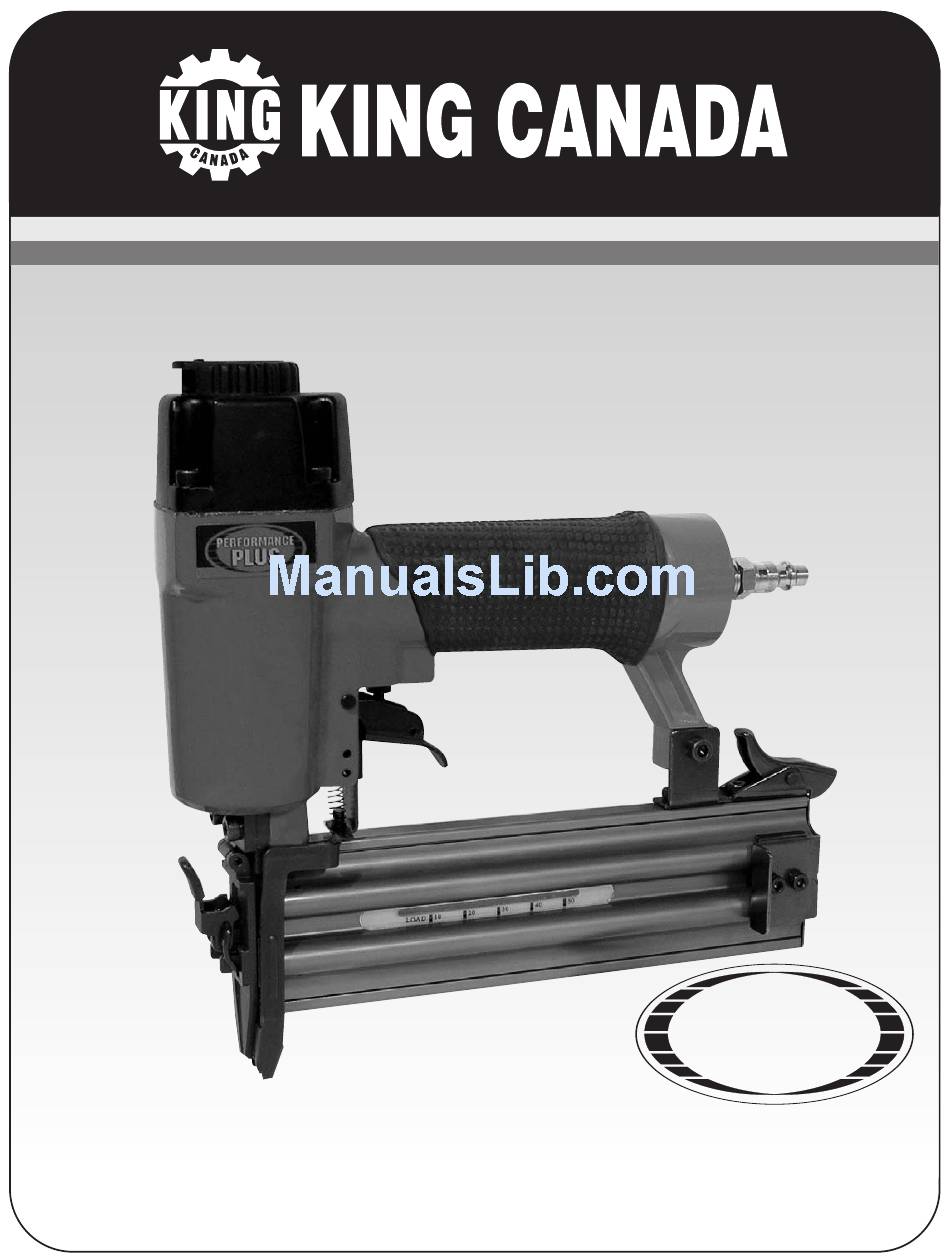

- Page 1 18GA. X 2” BRAD NAILER KIT performance performance plus plus MODEL: 8201N INSTRUCTION MANUAL COPYRIGHT © 2005 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.
-
Page 2: Proof Of Purchase
Warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence or accidents, repairs or alterations and lack of maintenance. KING CANADA shall in no event be liable for death, injuries to persons or property or for incidental, special or consequential damages arising from the use of our products. -
Page 3: Specifications
Nail view finder Nail discharge area Nail loading area Safety release SPECIFICATIONS Model......................................8201N Air inlet ......................................1/4” NPT Compressed air: Maximum permissible operating pressure ........................120 PSIG (8.3 bar) Recommended operating pressure range ..........................60-100 PSI Nail range ............................3/4” to 2” 18ga. brad head finish nails Width ......................................1.25mm... -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS • Read and understand this manual and all the safety instructions before operating this nailer. If you have any questions, please contact our authorized service centres or retailers for help. • Never allow the use of flammable gases as a power source for the nailer. Use filtered, lubricated and regulated compressed air only. -
Page 5: Lubrication And Maintenance
LUBRICATION AIR SUPPLY AND CONNECTIONS LUBRICATION AND MAINTENANCE • Your nailer needs to be lubicated before and after the first time you use it. • Disconnect the air supply from the nailer before lubricating. • Turn the nailer so that the inlet is facing up and put ONE DROP of high speed spindle oil or oil without detergent into the air inlet. - Page 6 CONTACT SAFETY TRIP MECHANISM OPERATING A CONTACT SAFETY TRIP TOOL: • The operator is required to have the finger off the trigger and the nose of the nailer to be placed on the workpiece. • The contact safety trip mechanism is then depressed against the workpiece and the trigger is pulled to drive the nail.
-
Page 7: Clearing Jams
LOADING NAILER & CLEARING JAMS LOADING NAILER MAGAZINE • Disconnect the air hose from the nailer air inlet. • Depress the magazine latch, pull back on the magazine cover. • Insert a stick of nails into the magazine. Make sure the pointed ends of the nails are as close to the bottom edge of the magazine as possible, ensuring the head of the nail is aligned with the appropriate machined groove in the magazine. - Page 8 OPERATING YOUR NAILER OPERATING YOUR NAILER WARNING! protect your eyes and ears. Wear Z87 safety glasses with side shields. Wear hearing protection. Employers are responsible for ensuring the user or anyone near the nailer wears the above mentioned safety protection. WARNING! Check and replace any damaged or worn components.
-
Page 9: Maintenance And Troubleshooting
Kit is available for your Nailer (model: KW-079). Contact your local King Canada distributor for more information. PARTS DIAGRAM & PARTS LISTS Refer to the Parts section of the King Canada web site for the most updated parts diagram and parts list. KW-079... - Page 10 18GA. X 1/4” NARROW CROWN STAPLER performance performance plus plus MODEL: 8101S INSTRUCTION MANUAL COPYRIGHT © 2005 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.
- Page 11 Warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence or accidents, repairs or alterations and lack of maintenance. KING CANADA shall in no event be liable for death, injuries to persons or property or for incidental, special or consequential damages arising from the use of our products.
- Page 12 GETTING TO KNOW YOUR STAPLER Trigger Air deflector Air inlet Magazine Latch Quick clear latch Magazine Staple view finder Staple loading area Safety release Staple discharge area SPECIFICATIONS Model ......................................8101S Air inlet ......................................1/4” NPT Compressed air: Maximum permissible operating pressure ........................120 PSIG (8.3 bar) Recommended operating pressure range ..........................60-100 PSI Staple range ........................3/8”...
- Page 13 SAFETY INSTRUCTIONS • Read and understand this manual and all the safety instructions before operating this stapler. If you have any questions, please contact our authorized service centres or retailers for help. • Never allow the use of flammable gases as a power source for the stapler. Use filtered, lubricated and regulated compressed air only.
- Page 14 LUBRICATION AIR SUPPLY AND CONNECTIONS LUBRICATION AND MAINTENANCE • Your stapler needs to be lubicated before and after the first time you use it. • Disconnect the air supply from the stapler before lubricating. • Turn the stapler so that the inlet is facing up and put ONE DROP of high speed spindle oil or oil without detergent into the air inlet.
- Page 15 CONTACT SAFETY TRIP MECHANISM OPERATING A CONTACT SAFETY TRIP TOOL: • The operator is required to have the finger off the trigger and the nose of the stapler to be placed on the workpiece. • The contact safety trip mechanism is then depressed against the workpiece and the trigger is pulled to drive the staple.
- Page 16 LOADING STAPLER & CLEARING JAMS LOADING STAPLER MAGAZINE • Disconnect the air hose from the stapler air inlet. • Depress the magazine latch, pull back on the magazine cover. • Place a stick of staples over the hanging rail of the magazine so that the legs of the staples straddle. •...
- Page 17 OPERATING YOUR STAPLER OPERATING YOUR STAPLER WARNING! protect your eyes and ears. Wear Z87 safety glasses with side shields. Wear hearing protection. Employers are responsible for ensuring the user or anyone near the stapler wears the above mentioned safety protection. WARNING! Check and replace any damaged or worn components.
- Page 18 Accessory Kit is available for your Stapler (model: KW-078). Contact your local King Canada distributor for more information. PARTS DIAGRAM & PARTS LISTS Refer to the Parts section of the King Canada web site for the most updated parts diagram and parts list. KW-078...
