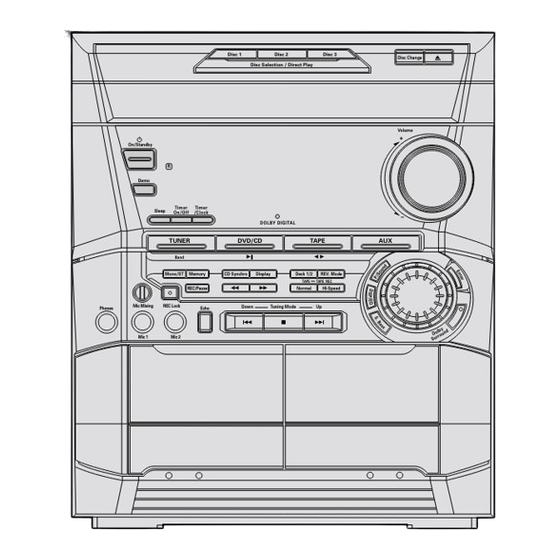

3 CD DVD CHANGER MINI MINI COMPONENT MAX-DN55/65/67 SERVICE Manual MINI MINI COMPONENT SYSTEM CONTENTS 1. Alignment and Adjustments Disc 1 Disc 2 Disc 3 Disc Change Disc Selection / Direct Play 2. Exploded Views and Parts List Volume On/Standby Demo 3.
Page 5
Reference Information Samsung Electronics...
Page 6
Reference Information 9-1-3 SIC1 (KS1452 ; Digital Servo) DIRC SSTOP /PSO SMON LOCK DFCT FOKB MIRR TZCA PHI1 XOUT TEST RSTB TILTO TILTI Samsung Electronics...
Page 7
Reference Information Samsung Electronics...
Page 8
Reference Information 9-1-4 DIC1 (KS1453 ; DVD Data Processor) Samsung Electronics...
Page 9
Reference Information Samsung Electronics...
Page 10
D a t a O u t p u t E n a b l e P o w e r ( + 5 V ) P o w e r ( + 3 . 3 V ) N . C No Connection Samsung Electronics...
Page 11
D V D - D A T A 7 / C D G - S C L K Global VREQUEST I n t e r f a c e VSTROBE A_VSS Signals ERROR A_VDD P10[10:0] V-DACK/ASTROBE AREQUEST R E S E T A-DACK ZiVA Decoder Samsung Electronics...
Page 12
Raster Contral 1 for video port. This pin receives/provides a VS/FS/FSEQ signal. RCV1 Raster Contral 2 for video port. This pin provides an HS pulse of programmable length or receives I / O RCV2 an HS pulse. 9-10 Samsung Electronics...
Page 13
The 12C-bus receiver waits for the START condition. S C L 12C serial clock input S D A I / O 12C serial data input/output TTXRQ Teletext Request output, indicating when text bits are requested T T X Teletext bit stream input Samsung Electronics 9-11...
Page 15
Reference Information Samsung Electronics 9-13...
Page 16
Chip Enable and Output Buffers Prog Logic Gating Decoder A0-A19 Address 2,097,152-Bit Inputs Cell Matrix Decoder TOP VIEW NAME FUNCTION A0-A19 Address Inputs Chip Enable Input Data Input/Outputs DQ0-DQ7 Output Enable Input Vcc Syply Voltage OE/VPP Ground 9-14 Samsung Electronics...
Page 17
2. Remove the Cabinet-Top and Turn the Gear the clockwise using the hand as shown in figure 3-1-1. Open the Door-CD and pull the Tray in the direction of arrow @ as shown in figure 3-1-1. TRAY Figure 3-1-1 Figure 3-1 Samsung Electronics...
Page 18
Diassembly and Reassembly 3-2 CD-Mecha, Door-CD 1. Remove 2 screws of # . 2. Lift the back of the CD-Mecha to remove. Figure 3-2 Samsung Electronics...
Page 19
Slide it to the front by releasing two hooks in the direction of arrow E,F on the bottom of Cabinet-Front to remove. 3. Remove 1 screws of & and slide the PRO-LOGIC PCB to the top to remove . Figure 3-4 Samsung Electronics...
Page 20
( Inserted into Main PCB CN6. See Fig. 1-4) 3) Disassemble the deck. 4) Disassemble the deck PCB. Note : If the assembly and disassembly are not done in correct sequence, the Pick-up may be damaged. Fig. 1-4 Samsung Electronics...
SSG FREQ. 450 kHz Frequency 522 kHz AM ANT OUTPUT Adjustment AM I.F COIL point Speaker Terminal AM SSG (TL2) 450KHZ Maximum output (Figure 1-3) OUTPUT INPUT VTVM Oscilloscope * Adjustment Location of LW Band Figure1-3 AM I.F Adjustment Samsung Electronics...
Page 22
1.0V±0.1V at the low. 7.3MHz Check for 8.5V±1.0V at the high. 3.5MHz 3.5MHz SW1 ANT Maximum out Fig 1-3 9.5MHz SW2 OSC Aduust for 1.5V±0.1V at the low. 26.1MHz Check for 8.0V±1.0V at the high. 10MHz 10MHz SW2 ANT Maximum out Samsung Electronics...
Page 23
1)Press PLAY button. connected to REGION the scope) LOCK. Oscilloscope VTVM Check level See the PLAY MTT-150 No Adjustment and same as PlayBack Same as diagram for Deck1 level on Deck 2. out Level above adjustment locations. JCW3 Figure 1-7 Samsung Electronics...
ADR241AMW1 AH81-00140A ASS.Y RP HEAD ADR2400-RP(SANKYO) MT91-11011P AH81-00141A HEAD PB TC881CB MT59-00044A AH81-00142A ASS,Y MOTOR ADR2400-SHU2L MT91-11013D AH81-00143A BELT MAIN1 ADR2400-MAIN 76.2 6602-001038 AH81-00144A BELT MAIN2 ADR2400-MAIN 64.6 6602-001050 AH81-00101A BELT SUB ADR2400-FR 6602-001055 AH81-00102A SOLENOID ADR2400-1 MT75-00049A Samsung Electronics...
Page 25
ADR241FTW AH81-00140A RP HEAD ADR2400-RP(SANKYO),- MT91-11011P AH81-00329A ASS’Y HEAD PB MK10PAA2N3, MT59-00041V AH81-00142A ASSY MOTOR ADR2400-SHU2L,- MT91-11013D AH81-00143A BELT MAIN1 ADR2400-MAIN 76.2,- 6602-001038 AH81-00330A BELT MAIN2 ADR2400-MAIN 93, 6602-001066 AH81-00101A BELT FR ADR2400S-FR,- 6602-001055 AH81-00102A SOLENOID ADR2400-1,- MT75-00049A Samsung Electronics...
Page 26
2-2 Total Exploded View and Parts List 2-2-1 Total Exploded : MAX-DN55 Samsung Electronics...
Page 27
* Parts List of Total Exploded view ; MAX-DN55 Code No. Description ; Specification Q’ty Use Model Code No. Description ; Specification Q’ty Remarks AH64-00577B WINDOW-CD:PMMA,VIOLET, AH64-00582C KNOB-RECORD:ABS 94HB AH64-70003H BADGE-BRAND AH67-00053A LENS-REC;PMMA MILKY AH64-00573B DOOR—CD;ABS L/GRAY, AH31-10020A FAN-DC;12VDC/0.16A AH67-00071B LENS-DVD;PMMA MILKY...
Page 28
2-2-2 Total Exploded : MAX-DN65/67 Samsung Electronics...
Page 32
2-5 SPEAKER Exploded View and Parts list * CAUSION : It is used the bonding, connet NET FRAME(or FRONT PANEL ASS’Y) to CABINET ASS’Y. So when the disassembly, take extreme care not to demage the SPEAKER. 2-5-1 MAX-DN55 * PSR11E : ASS’Y SPK(AH81-00342A) Description...
Page 33
ITEM AH81-00347A PSDN65E AH81-00347F AH81-00347E FRONT PANEL AH81-00347S Unit T/W Semishied AH81-00347K Unit W/F shied AH81-00347G W/F Ring AH81-00347J Wooden Cabinet Code No ITEM AH81-00341D PS C12E AH81-00358A AH81-00341B FRONT PANEL AH81-00341K UNIT WOOFER AH81-00341N WOODEN CABINET 2-10 Samsung Electronics...
Page 34
ITEM AH81-00347C PSDN67E AH81-00347F AH81-00347E FRONT PANEL AH81-00347S Unit T/W Semishied AH81-00347K Unit W/F shied AH81-00347G W/F Ring AH81-00347J Wooden Cabinet Code No ITEM AH81-00341D PS C12E AH81-00358A AH81-00341B FRONT PANEL AH81-00341K UNIT WOOFER AH81-00341N WOODEN CABINET Samsung Electronics 2-11...
