Summary of Contents for Zotac ZBOX pico PI225

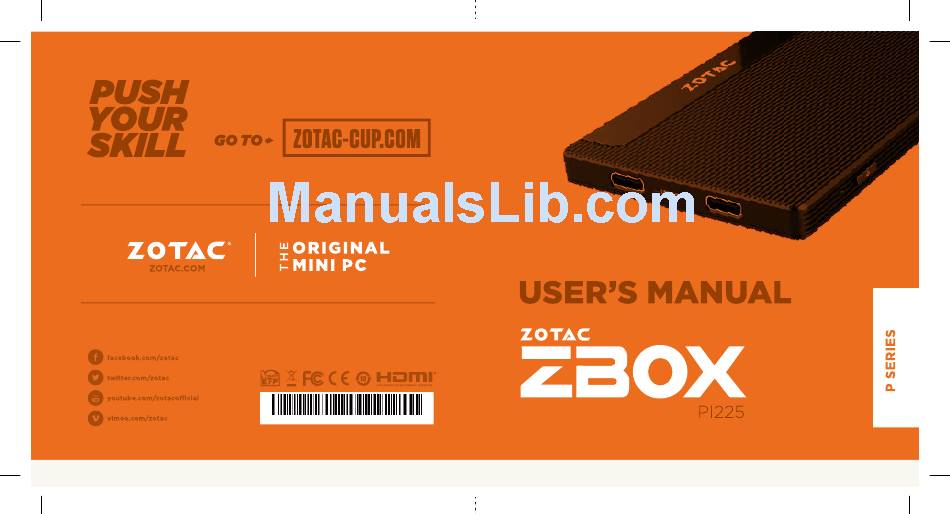

- Page 1 291-MB366-01Q7F...
- Page 2 ZOTAC ZBOX pico User’s Manual No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except by the purchaser for backup purposes, without the express written permission of ZOTAC.
-
Page 3: Table Of Contents
Welcome ------------------------------------------------------------------------------------------------ 5 Package contents --------------------------------------------------------------------------------- 5 Port Layout --------------------------------------------------------------------------------------------- 6 Mounting the ZOTAC ZBOX pico to a flat panel display -------------------------------- 7 Getting started with Windows 10 Home 64-bit --------------------------------------------- 9 Waking up from USB KB/MS under S5 -------------------------------------------------------13... -
Page 4: Product Specifications
57°C during continuous video playback / digital signage use. We highly recommend not to make physical contact with the unit while the system is running as it may cause severe discomfort or burning sensation. ZOTAC ZBOX pico... -
Page 5: Safety Information
Safety information Your ZOTAC ZBOX pico is designed and tested to meet the latest standards of safety for information technology equipment. However, to ensure your safety, it is important that you read the following safety instructions. Setting up your system Read and follow all instructions in the documentation before you operate your system. -
Page 6: Welcome
Welcome Congratulations on your purchase of the ZOTAC ZBOX pico. The following illustration displays the package contents of your new ZOTAC ZBOX pico. Please contact your retailer if any of the below items are damaged or missed. Package contents • 1 x ZOTAC ZBOX pico •... -
Page 7: Port Layout
SuperSpeed USB 3.0 devices. 4. MicroSD memory card slot The built-in memory card reader supports Micro SDHC/SDXC cards to expand the storage capabilities of the ZOTAC ZBOX pico. 5. Power button The power button turns the system ON and OFF. -
Page 8: Mounting The Zotac Zbox Pico To A Flat Panel Display
Mounting the ZOTAC ZBOX pico to a flat panel display You can attach the ZOTAC ZBOX pico to the back of a compliant display. Secure the mounting bracket to the LCD monitor using 1 screw. Disclaimer: ZOTAC is not liable for damages resulting from an improper installation. - Page 9 Connect the ZOTAC ZBOX pico to the LCD monitor. Note: You can also mount the ZOTAC ZBOX pico vertically as shown in the picture below. ZOTAC ZBOX pico...
-
Page 10: Getting Started With Windows 10 Home 64-Bit
Please follow the steps below to begin using your ZBOX pico with Windows 10 Home 64-bit. 1. Power on the system. 2. Connect to the Internet via Ethernet or Wi-Fi. (optional) 3. Select the language and region. ZOTAC ZBOX pico... - Page 11 4. Read and accept the license terms. 5. We recommend using the express settings. ZOTAC ZBOX pico...
- Page 12 6. Create a Microsoft new account if you don’t have one. Otherwise, select “Sign in”. 7. Setup your account. ZOTAC ZBOX pico...
- Page 13 8. Wait for the initial system setup to complete. ZOTAC ZBOX pico...
-
Page 14: Waking Up From Usb Kb/Ms Under S5
Users can wake up the system from USB keyboard/mouse under S5. Please follow the steps below to configure before waking up the system. 1. Click the “Start” icon at the bottom left corner of desktop, and select “Windows System > Control Panel” ZOTAC ZBOX pico... - Page 15 2. When the Control Panel interface displays, select “Hardware and Sound > Power Options”. ZOTAC ZBOX pico...
- Page 16 3. Click “Choose what the power buttons do”. ZOTAC ZBOX pico...
- Page 17 4. Click “Change settings that are currently unavailable”. ZOTAC ZBOX pico...
- Page 18 5. Uncheck the option: “Turn on fast startup (recommended)”, and click “Save changes”. ZOTAC ZBOX pico...
- Page 19 6. Now you can wake up the system by clicking the USB keyboard/mouse under S5. ZOTAC ZBOX pico...
-
Page 20: Using Your Zotac Zbox Pico
Using your ZOTAC ZBOX pico Configuring a wireless connection Please follow the instructions below to connect to a wireless network: Double-click the wireless network icon (pic) in the notification area. Select the wireless network you want to connect to from the list and click Connect. -
Page 21: Configuring Audio Output Via An Hdmi Device
Configuring audio output via an HDMI device Follow the steps below to enable audio output via HDMI when connecting the ZOTAC ZBOX pico to a TV or receiver via HDMI. Access the Sound settings via the system Control Panel. Under Playback devices, click the display...
