1
ACCESSORIES

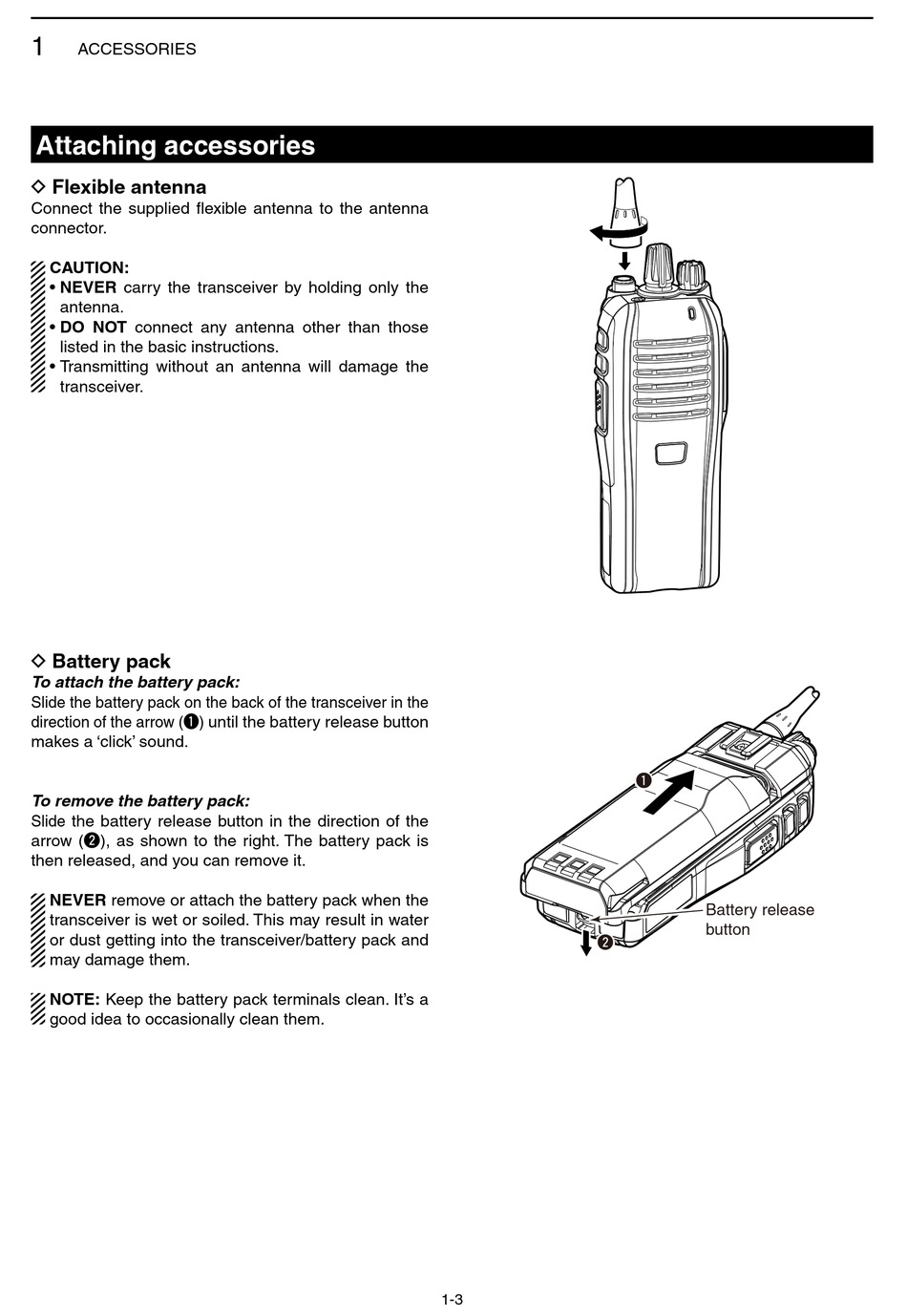

Attaching accessories

D

Flexible antenna

Connect the supplied flexible antenna to the antenna
connector.
CAUTION:
• NEVER carry the transceiver by holding only the
antenna.
• DO NOT connect any antenna other than those
listed in the basic instructions.
• Transmitting without an antenna will damage the
transceiver.
D Battery pack
To attach the battery pack:
Slide the battery pack on the back of the transceiver in the
direction of the arrow (q) until the battery release button
makes a 'click' sound.
To remove the battery pack:
Slide the battery release button in the direction of the
arrow (w), as shown to the right. The battery pack is
then released, and you can remove it.
NEVER remove or attach the battery pack when the
transceiver is wet or soiled. This may result in water
or dust getting into the transceiver/battery pack and
may damage them.
NOTE: Keep the battery pack terminals clean. It's a
good idea to occasionally clean them.
w
1-3
q
Battery release
button
