INSTALLATION AND MAINTENANCE INSTRUCTIONS

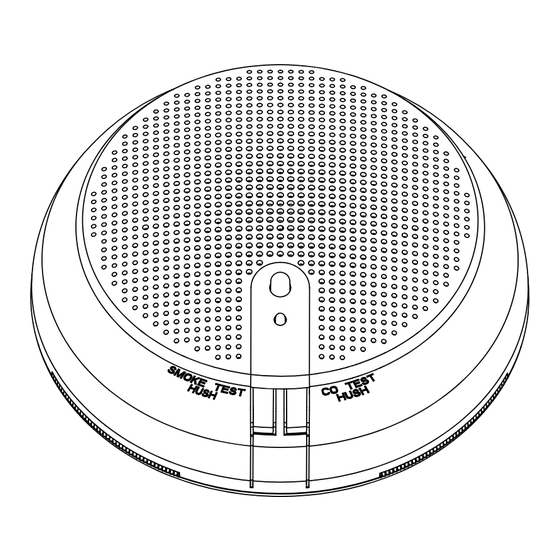

W4-IC Combination Smoke/
Carbon Monoxide (CO) Detector
with Built-in Wireless Transmitter
SPECIFICATIONS
Electrical Specifications
Voltage:
Battery Type:
Battery Manufacturer:
Number of Batteries:
Sensitivity
Audible Signal:
Physical Specifications
Diameter:
Height:
Weight:
Operating Temperature Range:
Storage Temperature Range:
Operating Humidity Range:
This product is compatible with iControl Technicolor TCA203 control panels
*NFPA requires a UL listed sounder on the NAC circuit.
Notice: This manual shall be left with the owner/user of this equipment.
BEFORE INSTALLATION
Please read this manual thoroughly along with the Application Guides for Sys-
tem Sensor Smoke (A05-1003) and CO Detectors (A05-1099), which provide
detailed information on detector spacing, placement, zoning and special ap-
plications. Copies of these manuals are available at systemsensor.com.
IMPORTANT: This detector must be tested and maintained regularly following
NFPA 72/NFPA 720 requirements.
GENERAL DESCRIPTION
The W4 series is a battery-operated, system-connected, combination carbon
monoxide/smoke detector with a built-in wireless transmitter for use with
iControl wireless control panel models. It will report maintenance, tamper and
independent smoke alarm or CO alarm signals to a compatible wireless con-
trol panel. It has a speaker for vocal feedback, multi-criteria smoke detection,
and integrated side LED windows that are viewable from 360 degrees when
the detector is in an alarm condition.
FEATURES
Smoke Features
• Multi-criteria smoke sensing using a combination of photoelectric, heat,
flame flicker and carbon monoxide sensing.
• Drift compensation and noise rejection algorithms.
• Smoke test button.
• 360 degree, side viewable red LED smoke indication.
CO Features
• 10 year electrochemical CO sensor.
• Sensor end-of-life notification.
• CO test button.
• RealTest® functional gas entry test capable.
• 360 degree, side viewable blue LED CO indication.
Audible Annunciation
• Local integral sounder.
• Voice speaker provides supplemental instructions during alarm, installa-
tion and maintenance feedback.
Installation and Maintenance
• Universal mounting base.
• Audible maintenance information including smoke sensitivity.
Other Features
• Ships with 4 CR-123 lithium batteries.
• UL/ULC listed to standards 268 and 2075.
3 volts DC
CR-123 lithium
Duracell DL123A or Panasonic CR123A
Use of a different battery may have a detrimental effect on device operation
4
0.9 to 2.64/ft. (.27 to .80/m)
85dBA
5.95 inches (15.113 cm)
2.03 inches (5.1562cm)
13.92oz (383 g)
0 - 38° C (32 - 100°F)
-10 - 70° C (14 - 158° F)
20-95% RH
3825 Ohio Avenue, St. Charles, Illinois 60174
VISIBLE ANNUNCIATON
The W4 series detector has a multi-color top LED; Green, Red, and Amber.
The LED is green for supervisory indication; it blinks during power on, reset,
and during normal operation. The LED is amber to signal maintenance and
trouble events. W4 utilizes the side LED windows to indicate alarm events;
red for smoke and blue for CO.
INSTALLATION GUIDELINES
Ceiling: Detector should be at least 12 inches (30 cm) from any wall.
Wall: Detector should be no closer than 6 inches (15 cm) from ceiling.
• Do not install outdoors or in any environment that does not comply with
the detector's environmental specifications.
• Install in accordance with NFPA 72 and 720 standards. NFPA 72 and
720 define standards for both commercial and residential installation of
smoke and CO detectors. Local laws involving CO detection should also
be considered.
• If the installation can be interpreted as residential, consult the section
of NFPA 720 that outlines residential applications. Chapter 9.4.1.1, for
example, states that carbon monoxide alarms or detectors shall be in-
stalled as follows:
• Outside each separate dwelling unit sleeping area in the immediate
vicinity of the bedroom.
• On every level of a dwelling unit, including basements.
• Consult NFPA 72, the local Authority Having Jurisdiction (AHJ), and/
or applicable codes for specific information regarding the spacing and
placement of smoke detectors.
FIGURE 1: ALARM LOCATION DIAGRAM FOR RESIDENTIAL APPLICATION
BEDROOM
BEDROOM
LIVING
ROOM
BASEMENT
–
CARBON MONOXIDE/SMOKE ALARM
LOCATION FOR MULTI-LEVEL RESIDENCE
1
1-800-SENSOR2, FAX: 630-377-6583
www.systemsensor.com
Global 2.4 Ghz wireless use
ZigBee® Certified is a registered
trademark of the Zigbee Alliance.
TO
BR
BEDROOM
KITCHEN
GARAGE
CLOSED
DOOR
