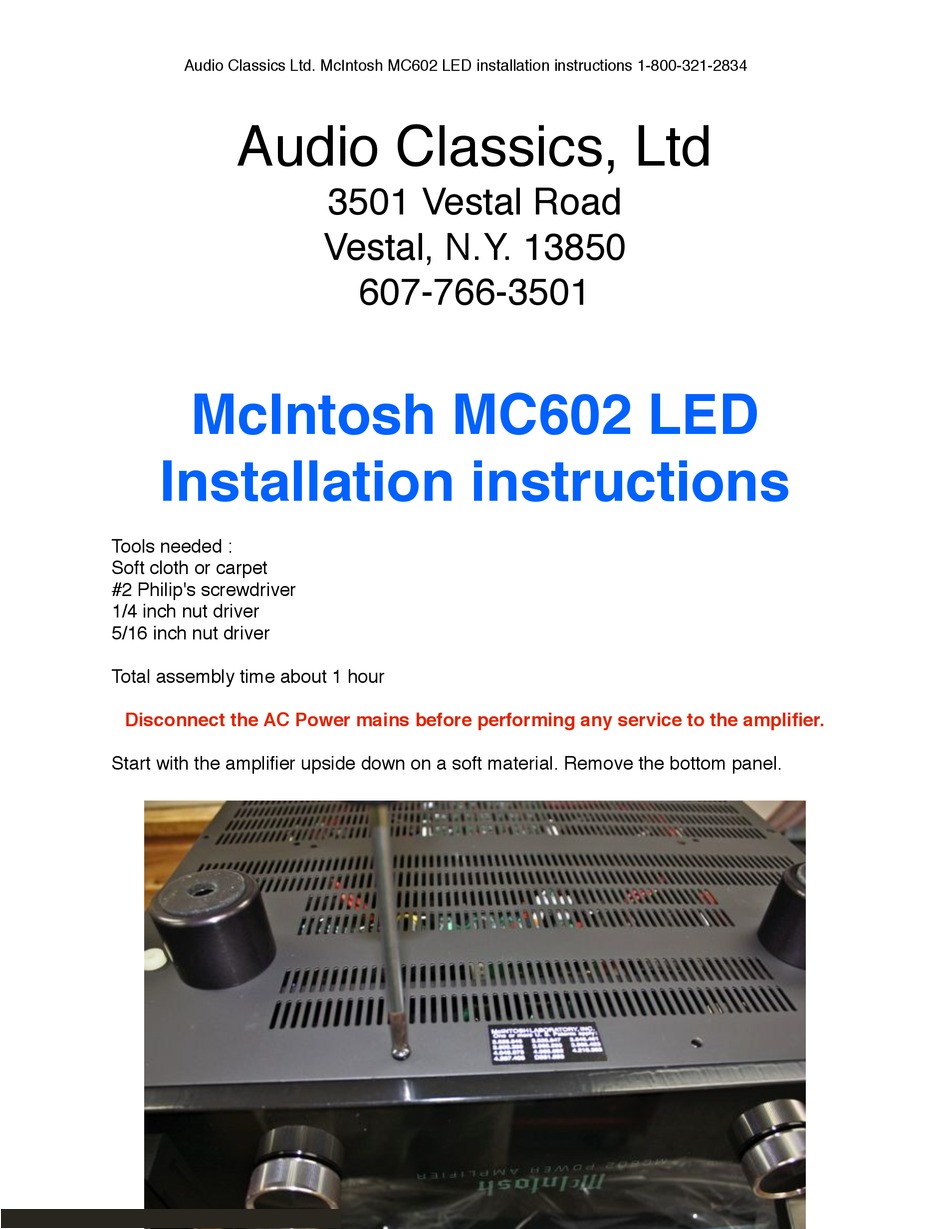

Audio Classics Ltd. McIntosh MC602 LED installation instructions 1-800-321-2834
Audio Classics, Ltd!
McIntosh MC602 LED!
Installation instructions!
!
Tools needed :!
Soft cloth or carpet!
#2 Philip's screwdriver!
1/4 inch nut driver!
5/16 inch nut driver!
!
Total assembly time about 1 hour!
!
Disconnect the AC Power mains before performing any service to the amplifier.!
Start with the amplifier upside down on a soft material. Remove the bottom panel.!
3501 Vestal Road!
Vestal, N.Y. 13850!
607-766-3501!
!
!
Advertisement
Related Manuals for McIntosh MC602 LED
Summary of Contents for McIntosh MC602 LED
-
Page 1: Installation Instructions
Audio Classics Ltd. McIntosh MC602 LED installation instructions 1-800-321-2834 Audio Classics, Ltd! 3501 Vestal Road! Vestal, N.Y. 13850! 607-766-3501! McIntosh MC602 LED! Installation instructions! Tools needed :! Soft cloth or carpet! #2 Philip's screwdriver! 1/4 inch nut driver! 5/16 inch nut driver! Total assembly time about 1 hour! Disconnect the AC Power mains before performing any service to the amplifier.! - Page 2 Audio Classics Ltd. McIntosh MC602 LED installation instructions 1-800-321-2834 Once the bottom cover is removed you will find the white connectors that run from the PC board to the front panel. There are 4 as I have pointed out in the photos below.
- Page 3 Audio Classics Ltd. McIntosh MC602 LED installation instructions 1-800-321-2834...
- Page 4 Audio Classics Ltd. McIntosh MC602 LED installation instructions 1-800-321-2834 Next locate the 5 black screws that attach the panel to the stainless chassis on each side and remove them (total 10).!
- Page 5 Audio Classics Ltd. McIntosh MC602 LED installation instructions 1-800-321-2834 Locate this screw on each lower side of the front panel and remove. The panel should now be free from the chassis. ...
- Page 6 Audio Classics Ltd. McIntosh MC602 LED installation instructions 1-800-321-2834 Now you can remove the panel rear shroud by removing the two screws on top and the two on each side. ...
- Page 7 Audio Classics Ltd. McIntosh MC602 LED installation instructions 1-800-321-2834 Locate the original meter illumination PC board and remove. It is held in place with 4 small white push clips. You can pop this loose with your finger. Discard this board. ...
- Page 8 Audio Classics Ltd. McIntosh MC602 LED installation instructions 1-800-321-2834 Next step is to install the meter illumination. Locate the assembly from our kit that has 4 LED’s and resistors. It will look like the one I am holding in my hand. Install this assembly in the right meter (left side as your working on it).
- Page 9 Audio Classics Ltd. McIntosh MC602 LED installation instructions 1-800-321-2834 Now install the left meter LED board and wire as shown. ...
- Page 10 Audio Classics Ltd. McIntosh MC602 LED installation instructions 1-800-321-2834 Below the meters you will see the PC board for nomenclature illumination. Using the 1/4 inch nut driver, remove this board and discard. Replace it with the new board that has the same appearance and snug the nuts into place. Do not over tighten. ...
- Page 11 Audio Classics Ltd. McIntosh MC602 LED installation instructions 1-800-321-2834 Now locate the meter hold down bar and remove the two 5/16 nuts. Pull the bar from the studs and set aside. ...
- Page 12 Audio Classics Ltd. McIntosh MC602 LED installation instructions 1-800-321-2834 Remove the two 5/16 nuts per meter housing. Remove both white plastic meter housings and set aside. Remove the original blue film filters and replace with ours supplied in the kit. Reassemble this section. ...
- Page 13 Audio Classics Ltd. McIntosh MC602 LED installation instructions 1-800-321-2834 This is what the finished panel should look like. Reassemble and enjoy!
