Stepper S9i – HSD1000000
General Assembly
Polar Receiver
Assembly
Pedal
Assembly
Alternator
Main Drive
Pulley/Clutch
Operation Manual
Service Manual
Console Overlay
Bezel Assembly
Crossover
Pulley
M051-00K20-A317
M051-00K47-A013
Frame
Components
Cables
Guide Rollers
Clutch Assembly LT
Shrouds
PCB/Resistor
rev 11 Dec 2007
Advertisement
Table of Contents
Related Manuals for Life Fitness HSD1000000
Summary of Contents for Life Fitness HSD1000000

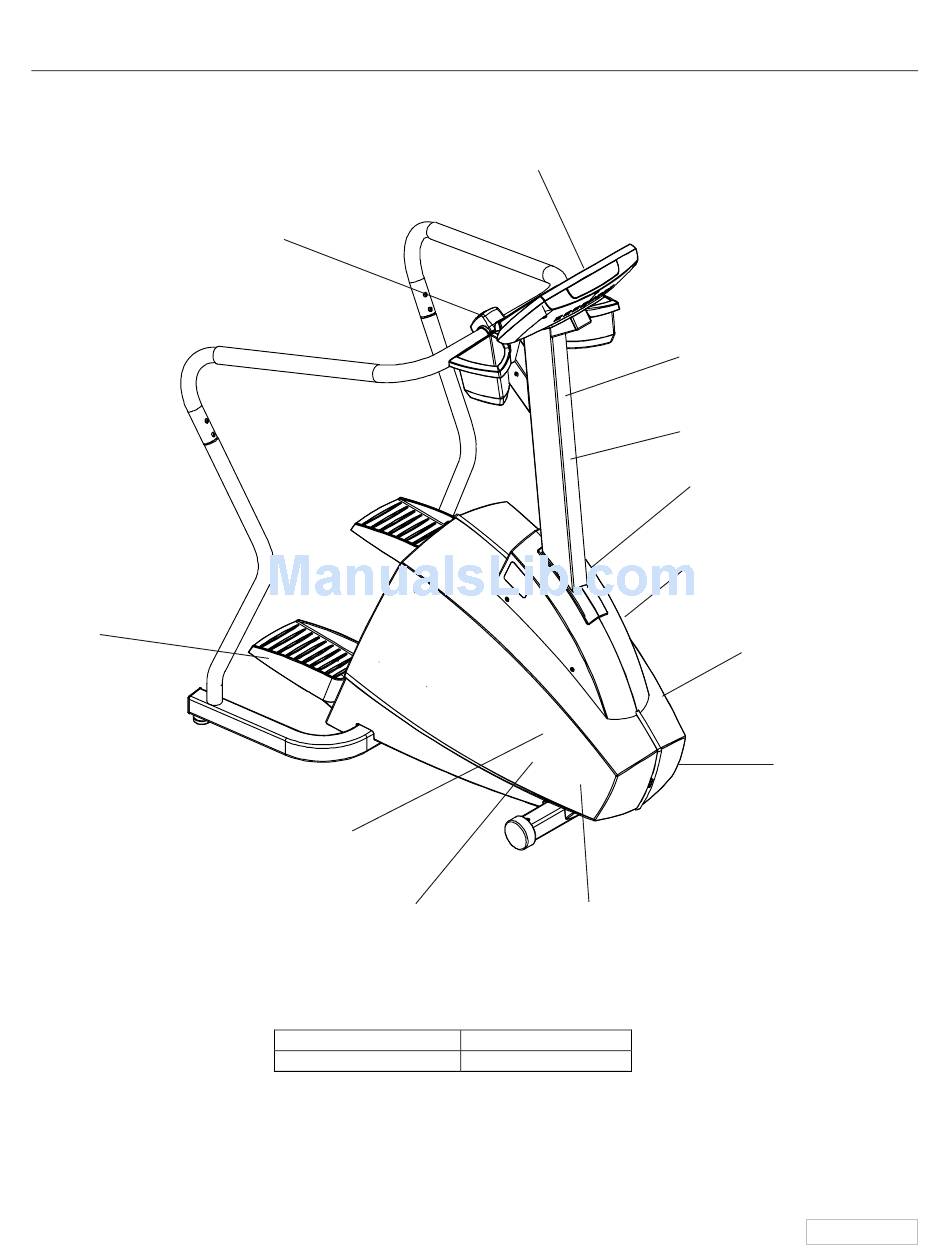

- Page 1 Stepper S9i – HSD1000000 General Assembly Console Overlay Bezel Assembly Polar Receiver Assembly Frame Components Cables Guide Rollers Clutch Assembly LT Pedal Shrouds Assembly PCB/Resistor Alternator Main Drive Crossover Pulley/Clutch Pulley Operation Manual M051-00K20-A317 Service Manual M051-00K47-A013 rev 11 Dec 2007...
-
Page 2: Switch Membrane
Stepper S9i Console Overlay Bezel Assembly Bezel/Switch Assembly Switch Membrane AK63-00075-0000 118E-00001-0133 Upper Overlay Console Board - Upper A084-92220-A003 Console Case Assembly Lower Overlay AK63-00121-0000 Phillips Pan Screws(13) 0017-00101-1650 Battery Door 0K63-01029-0000 Console Assembly Overlay Bezel Upper Overlay Lower Overlay AK47-00078-0001 Eng Met AK47-00077-0001 Eng Met 0K47-01080-0001 Eng Met... -
Page 3: Frame Components
Stepper S9i Frame Components Console Screws Accessory Tray 0017-00101-1253 0K63-01030-0000 Screws 0017-00101-1253 Handlebar AK47-00057-0000 Mono-Column AK47-00066-0000 Mono-Column Decal 0K47-01119-0000 Vertical Handrail 0K47-01030-0000 End Cap 0K47-01156-0000 Leg Levelers AK61-00035-0000 Handrail Bolt Jam Nut 0017-00101-0933 0017-00103-0273 Wheel w/Bearings AK63-00016-0000 Wheel Insert 0K47-01085-0000 Page 3 of 13... - Page 4 Stepper S9i Shrouds Mono-Column Shroud AK47-00069-0000 - S9i Phillips Pan Screw(2) 0017-00101-1242 Grommets 0017-00042-0754 Phillips Pan Screw(2) 0017-00101-1735 Center Shroud 0K47-01057-0000 Left Shroud w/Decal AK47-00065-0002 Decal ISO Track 0K47-01123-0002 Right Shroud Cover Rail Bracket AK47-00065-0001 0K47-01146-0000 Bracket Screw 0017-00101-1732 Track Cover Plate Pedal Tube 0K47-01128-0000 Decal;...
-
Page 5: Pedal Assembly
Stepper S9i Pedal Assembly Track Roller 0K47-01084-0000 Roller Sleeve(2) Center Track Roller 0K47-01084-0000 0K47-01084-0000 Side Roller Hex Bolt(4) Retainer, Bottom 0017-00101-1731 0K35-01144-0001 Sleeve Roller(2) Retainer, Top 0K47-01136-0000 0K35-01144-0003 Allen Screw Track Roller(4) 0017-00101-1348 w/Busshing Assy Nut - 0017-00103-0052 AK47-00087-0000 Mono-roller Hex Bolt(2) 0017-00101-1730 Thin Lock Nut(2) 0017-00103-0324... - Page 6 Stepper S9i Main Drive Pulley and Clutch Main Drive Pulley/Shaft AK47-00006-00000 E-ring 0017-00100-0107 Thrust Washers Thrust Washer(3) 0K47-01104-0000 Flat Washer 0K47-01105-0000 Right Drive Clutch Assembly AK47-00043-0001 Main Drive Belt 0K47-01054-0000 Page 6 of 13...
- Page 7 Stepper S9i Clutch Assembly - LT Thrust E-Ring Left Pulley Clutch Washer AK47-00043-0002 E-Rings(2) 0017-00100-0107 Flat Washers(3) 0K47-01105-0000 Thrust Flat Washer Washer Page 7 of 13...
-
Page 8: Crossover Pulley Assembly
Stepper S9i Crossover Pulley Assembly Crossover Pulley Assy AK47-00007-0000 Frame Lock Nut 0017-00103-0025 0017-00103-0026 Washer 0017-00104-0043 Magnet 118E-00001-0124 Bolt 0017-00101-1717 Screw Plate 0017-00101-1713 0K47-01056-0000 Tensioning Bolt 0017-00101-0928 Adjustable Bracket 0K47-01052-0000 Bolts(2) 0017-00101-1048 Page 8 of 13... -
Page 9: Alternator Assembly
Stepper S9i Alternator Assembly Alternator w/Flywheel Alternator Flywheel AK47-00038-0000 0K47-01069-0000 Alternator Pivot Bolt Locking Nut 0017-00101-0956 0017-00103-0117 Washer 0017-00104-0044 Tensioning Bracket 0K47-01053-0000 Tensioning Bracket Bolt 0017-00101-0986 Alternator Belt 0K47-01106-0000 Page 9 of 13... -
Page 10: Guide Rollers
Stepper S9i Guide Rollers Spring Guide Pulley(2) 0K47-01066-0000 Snap Ring(6) 0017-00100-0050 Shaft 0K47-01154-0000 Bolt 0017-00101-1048 Belt Idler Pulley(2) 0017-00009-1147 Bolt(2) 0017-00101-1089 0017-00103-0025 Belt Guide Pulley(2) AK63-00008-0000 Bolt - 0017-00101-1722 Nut - 0017-00143-0025 Page 10 of 13... -
Page 11: Pcb And Resistor
Stepper S9i PCB and Resistor Resistor AK47-00037-0000 Plastic Grommet(4) 0017-00042-0821 Power Control Board B084-92239-B000 PCB Bracket 0K47-01087-0000 Phillips Screw(4) 0017-00101-0823 Page 11 of 13... - Page 12 Stepper S9i Polar Receiver Assembly Polar Cap 0K47-01075-0000 Isolator 0K36-01059-0002 Screw Polar Receiver 0017-00101-1723 SK40-00045-0001 Page 12 of 13...
- Page 13 Stepper S9i Cable Power Jack AK47-00063-0000 Nut 0017-00103-0195 Reed Switch Cable AK63-00050-0000 Power Control Board to Alternator (PCB) Cable Console Cable AK47-00031-0001 AK47-00027-0000 Polar Cable AK36-00021-0003 Model Power Supply Line Cord S9-0100-01 118E-00001-0148 Not Needed S9-0101-01 118E-00001-0147 0017-00003-0691 S9-0102-01 118E-00001-0147 0017-00003-0889 S9-0104-01 118E-00001-0147...
