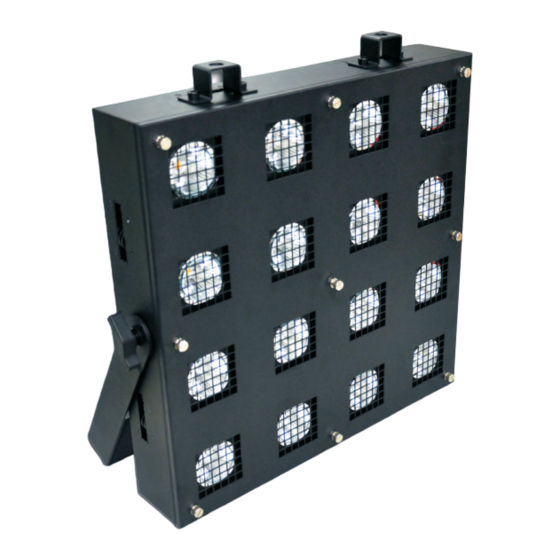

Lumina Matrix
USER MANUAL
40-3402

Advertisement

loading

Related Manuals for Elation Lumina Matrix

Summary of Contents for Elation Lumina Matrix

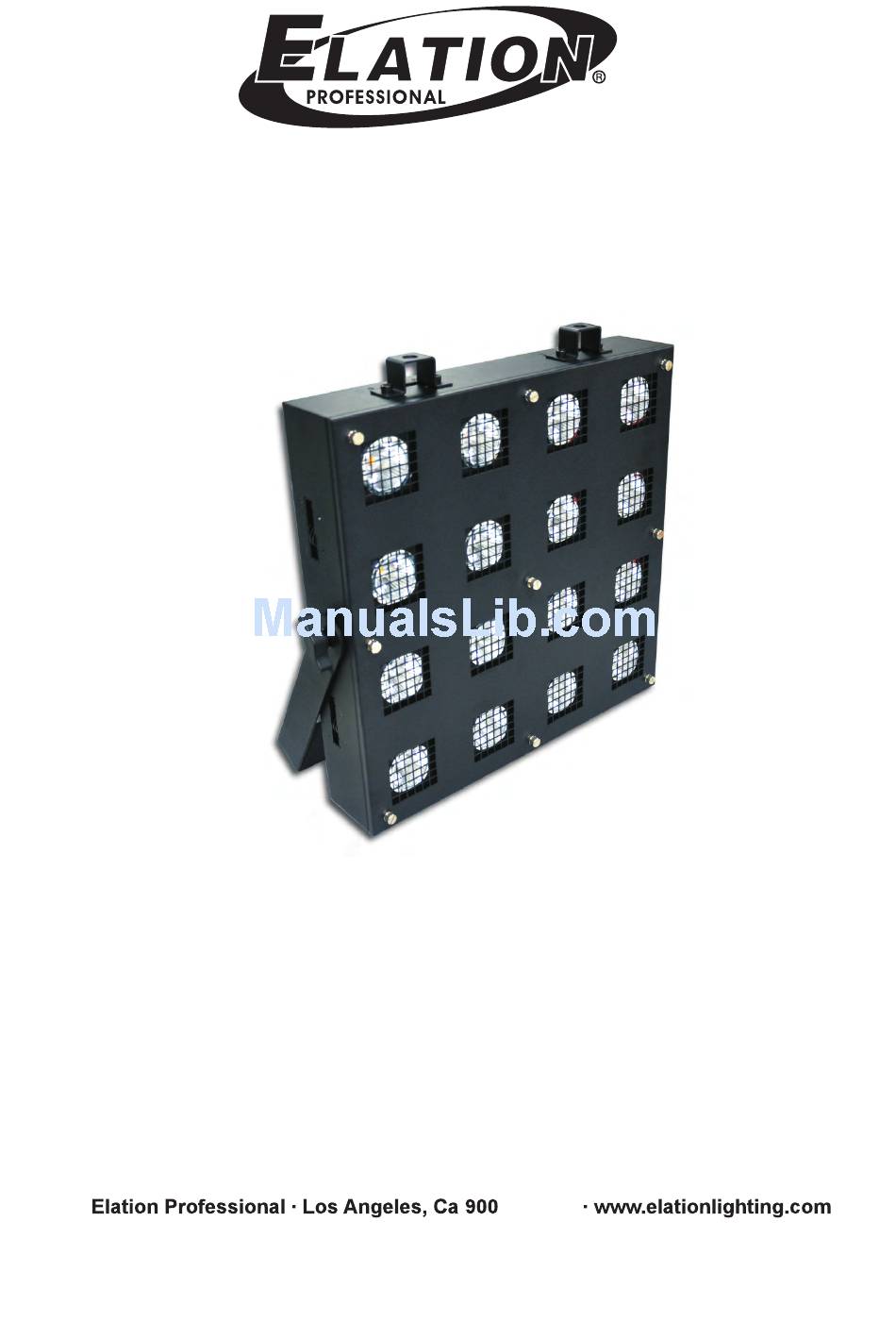

  • Page 1 Lumina Matrix USER MANUAL 40-3402...

  • Page 2: Main Features

    Lumina Matrix LED is provided with the ability to hang via truss hooks, clamps, etc.(sold separately). Simply attach hook clamp, etc. to the Lumina Matrix LED’s mounts in the provided M13 holes. Before use, make sure the screws are secured firmly.
  • Page 3 Thanks for your purchasing Elation Lumina Matrix LED lighting equipment, which is available in Warm White (WW) version. The Lumina Matrix LED is compatible of both DMX & RDM and with 16 channel LED intensity adjustable. Programs can be updated via RDM interface. It is available in master and slave control connection.
  • Page 4 Lumina Matrix LED Multi-Lumina Matrix LEDs can be installed together for hanging application via a L type spanner(included). Line up the products side by side, then insert the L type spanner into the mounting hole on the back of the product, and then turn the L type spanner in clockwise, the products will be locked together.
  • Page 5 Lumina Matrix LED...
  • Page 6 Fuses: The Lumina Matrix LED electric system is protected by T3.15A 250V 5x20mm. Please see the printing on the case and these fuses prevent you from overloading damaging your unit. To replace the protective fuse, use a flat head screwdriver to unscrew the fuse holder.

  • Page 7: Lcd Display

    Lumina Matrix LED LCD DISPLAY/MENU SYSTEM Power indicator POWER LCD Display RDM/DMX RDM/DMX indicator MODE DOWN Mode Key Down Key Menu Key Up Key OPERATION MODES The “ Lumina Matrix LED ” has two different operation modes. It can be used as a 07, 08, 10, 14, 16, 22 channel DMX dimmer.

  • Page 8: Dmx Mode

    Lumina Matrix LED DMX Mode Use this operation mode only when you are about to use the unit as a DMX dimmer. This function can allow you set your unit dimmer function as a 07, 08, 10,14, 16 or 22 channel DMX dimmer and DMX address.

  • Page 9: Program Mode

    Lumina Matrix LED Program Mode: The unit has 48 built-in programs except for Auto. Of course, you can select any of these programs to chase for more dramatic lighting show, and you can also control the speed at which the set programs will be chased.
  • Page 10 Lumina Matrix LED 4. Lamp Mode Menu: Press “MENU” button and select “Lamp Mode” menu, the LCD will LampMode display “LampMode Tungdten”, user can press “UP” or “DOWN” button MODE MENU DOWN to switch to “LampMode LED” menu. 5. Fade Time Menu: Press “MENU”...
  • Page 11 6. When CH:22 is displayed, DMX channel1~16 will control the LED, and the DMX channel 17~22 will control to run a 1~48 sequential program. Lumina Matrix LED RDM Parameter IDs The following tables outline and describe all the RDM parameters IDs associated with Lumina Matrix LED. Table 1: Lumina Matrix LED RDM Parameter IDs...
  • Page 12 Lumina Matrix LED Table 1: Lumina Matrix LED RDM Parameter IDs...
  • Page 13 Lumina Matrix LED Table 1: Lumina Matrix LED RDM Parameter IDs Table 2: Lumina Matrix LED Manufacturer Status IDs Manufacturer Defined Status IDs Manufacturer Specific messages are in the range of 0x8000 —0xFFDF. Each Manufacturer-specific Status ID shall have a unique meaning, which shall be consistent across all products having a given Manufacturer ID.
  • Page 14 Lumina Matrix LED TECHNICAL SPECIFICATIONS Power Thru/Input AC100~240V, 50/60Hz Light Source Warm White LED Array Beam Angle 15 Degrees Color Temperature 2700K Light Output > 4,500 lm IP Rating IP20 Power Consumption 150W Max. Weight 9.8Kg Fuse T3.15A 250V 5x20mm Dimension 400(L)*460(W)*90(H)mm.
  • Page 15 SOFTWARE UPDATE ADDS ADDITIONAL DMX CHANNEL MODES MODE MENU DISPLAY Address 001 - 512 7 / 8 / 10 / 14 / 16 / 22 (8bit) Channel 8 / 10 / 14 / 22 / 38 (16bit) No DMX OFF/Hold/Program Dim Mode Standard/Stage/TV/Archi/Theatre Program...
  • Page 16 MENU MAP Address 001--512 Channel 7/8Bit 8/8Bit 10/8Bit 14/8Bit 16/8Bit 22/8Bit 8/16Bit 10/16Bit 14/16Bit 16/16Bit 22/16Bit 38/16Bit No DMX OFF/Hold/Program Dim Mode Standard Stage Architectural Theatre PROGRAM Program 01--48/Auto Speed 01---100 FadeTime 00-100 Master 00-100 MANUAL Master 00-100 LED1 00-100 LED2 00-100 LED3...
  • Page 17 DMX MAP DMX Channel 38/16Bit 22/16Bit 14/16Bit 10/16Bit 8/16Bit 22/8bit 16/8Bit 14/8Bit 10/8Bit 8/8Bit 7/8Bit LED1(16bit) LED1&2(16bit) LED1&4(16bit) LED1&8(16bit) LED1&16(16bit) LED 1 LED 1 LED 1&2 LED 1&4 LED 1&8 LED 1&16 LED1(16bit Fine) LED1&2(16bit Fine) LED1&4(16bit Fine) LED1&8(16bit Fine) LED1&16(16bit Fine) LED 2 LED 2...
  • Page 18 7 Channel Configuration (8 Bit) Master Master Dim LED 1-16 Programs Program Speed Program Fade Dim Mode Dimmer Fine 16-bit Standard (dr 1) 0-20 0-255 0-255 0-255 0-255 0-255 0-255 Stage (dr 2) 21-40 (dim→ (dim→ (dim→ (Slow→ Less→ TV (dr 3) 41-60 Architectural bright)
  • Page 19 8 Channel Configuration (8 Bit) Master Master Dim LED 1-8 LED 9-16 Programs Program Speed Program Fade Dim Mode Dimmer Fine 16-bit Standard (dr 1) 0-20 0-255 0-255 0-255 0-255 0-255 0-255 0-255 Stage (dr 2) 21-40 (dim→ (dim→ (dim→ (dim→...
  • Page 20 10 Channel Configuration (8 Bit) CH10 Master Master Dim Program Program LED 1-4 LED 5-8 LED 9-12 LED 13-16 Programs Dim Mode Dimmer Fine Speed Fade Standard (dr 16-bit 0-20 0-255 0-255 0-255 0-255 0-255 0-255 0-255 0-255 0-255 Stage (dr 2) 21-40 (dim→...
  • Page 21 14 Channel Configuration (8 Bit) CH10 CH11 CH12 CH13 CH14 Master Master Dim Program Program Dim Mode LED 1-2 LED 3-4 LED 5-6 LED 7-8 LED 9-10 LED 11-12 LED 13-14 LED 15-16 Programs Dimmer Fine Speed Fade Standard (dr 16-bit 0-20 0-255...
  • Page 22 16 Channel Configuration (8 Bit) CH10 CH11 CH12 CH13 CH14 CH15 CH16 LED1 LED2 LED3 LED4 LED5 LED6 LED7 LED8 LED9 LED10 LED11 LED12 LED13 LED14 LED15 LED16 0-255 0-255 0-255 0-255 0-255 0-255 0-255 0-255 0-255 0-255 0-255 0-255 0-255 0-255 0-255...
  • Page 23 22 Channel Configuration (8 Bit) CH10 CH11 CH12 CH13 CH14 CH15 CH16 LED1 LED2 LED3 LED4 LED5 LED6 LED7 LED8 LED9 LED10 LED11 LED12 LED13 LED14 LED15 LED16 0-255 0-255 0-255 0-255 0-255 0-255 0-255 0-255 0-255 0-255 0-255 0-255 0-255 0-255 0-255...
  • Page 24 8 Channel Configuration (16 Bit) LED 1&16 LED 1&16 Master Master Dim Program Program Programs Dim Mode (16bit) (16bit Fine) Dimmer Fine Speed Fade Standard (dr 16-bit 0-20 0-255 0-255 0-255 0-255 0-255 0-255 0-255 Stage (dr 2) 21-40 (dim→ (dim→...
  • Page 25 10 Channel Configuration (16 Bit) CH10 LED1&8 LED1&8 LED9&16 LED9&16 Master Master Dim Program Program Programs Dim Mode (16bit) (16bit Fine) (16bit) (16bit Fine) Dimmer Fine Speed Fade Standard (dr 16-bit 0-20 0-255 0-255 0-255 0-255 0-255 0-255 0-255 0-255 0-255 Stage (dr 2) 21-40 (dim→...
  • Page 26 14 Channel Configuration (16 Bit) CH14 CH10 CH11 CH12 CH13 LED1&4 LED1&4 LED5&8 LED5&8 LED9&12 LED9&12 LED13&16 LED13&16 Master Master Dim Program Program Dim Mode Programs (16bit) (16bit Fine) (16bit) (16bit Fine) (16bit) (16bit Fine) (16bit) (16bit Fine) Dimmer Fine Speed Fade Standard (dr...
  • Page 27 22 Channel Configuration (16 Bit) CH10 CH11 CH12 CH13 CH14 CH15 CH16 LED1&2 LED1&2 LED3&4 LED3&4 LED5&6 LED5&6 LED7&8 LED7&8 LED9&10 LED9&10 LED11&12 LED11&12 LED13&14 LED13&14 LED15&16 LED15&16 (16bit) (16bit Fine) (16bit) (16bit Fine) (16bit) (16bit Fine) (16bit) (16bit Fine) (16bit) (16bit Fine) (16bit)
  • Page 28 38 Channel Configuration (16 Bit) CH10 CH11 CH12 CH13 CH14 CH15 CH16 LED1 LED1 (16bit LED2 LED2 (16bit LED3 LED3 (16bit LED4 LED4 (16bit LED5 LED5 (16bit LED6 LED6 (16bit LED7 LED7 (16bit LED8 LED8 (16bit (16bit) Fine) (16bit) Fine) (16bit) Fine) (16bit)
  • Page 29 DIMMING CURVE MODES DIMMER 100% Time (ms) 0 Sec Rise Time Down Time 0 sec Fade Time 1 sec Fade Time Dimming Curve Ramp Effect Rise Time (ms) Down Time (ms) Rise Time (ms) Down Time (ms) Standard (default) Stage 1100 1540 1660...
