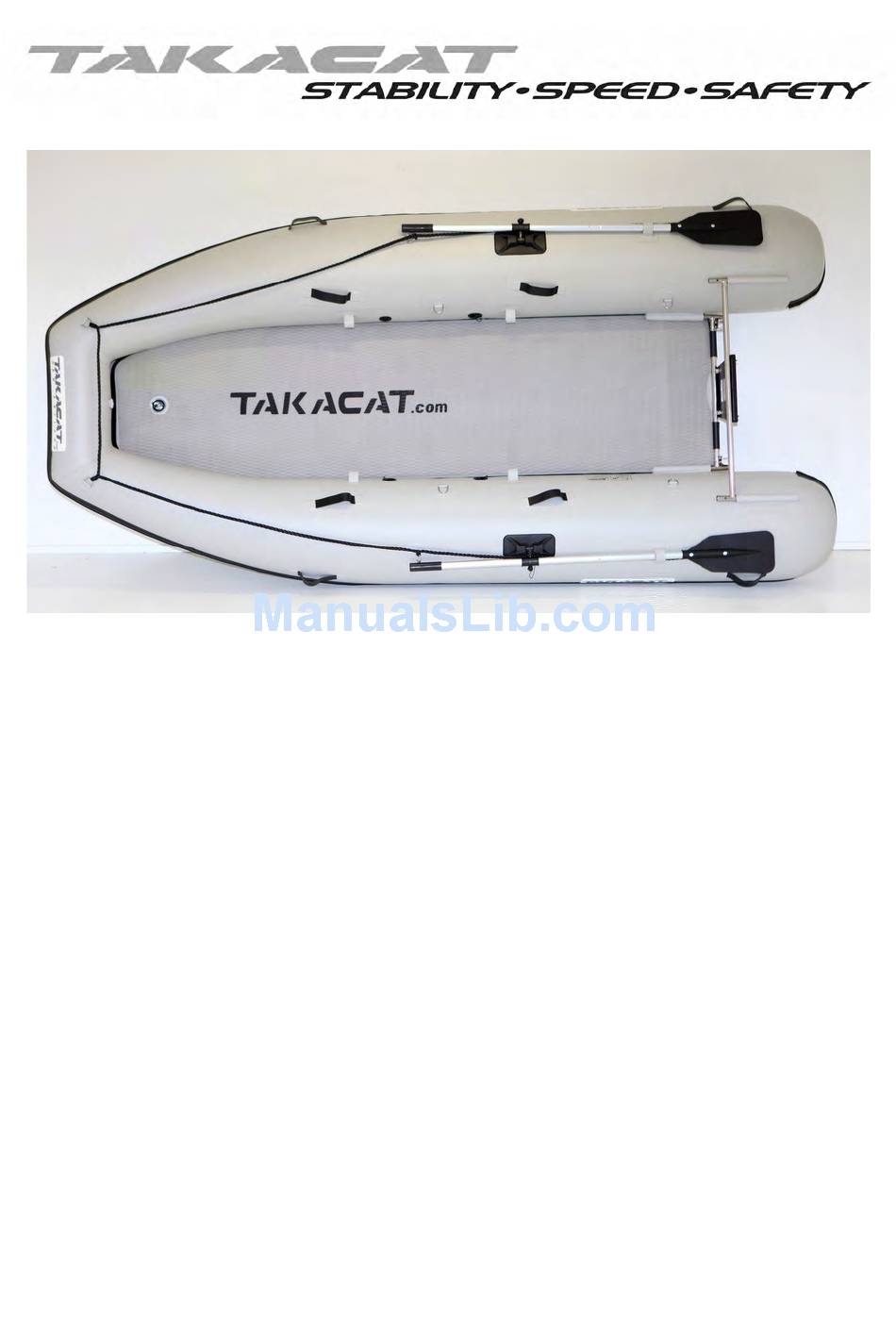

TAKACAT T240S Owner's Manual

Owners Manual – T240S to T380S:
Boat Manufacturer:
AIR YACHT Ltd. - 3 Owens Rd, Epsom - Auckland 1023 - Neuseeland - www.takacat.com
Please note the information given on the rating plate attached on the transom plate and the
information on the inside of the tubes.
Assemply boat:
1.
First, the lower Transom rod must be inserted from behind into the two little tubes.
A little bit water or a little bit dish soap makes them easier to slide into.
The transverse pressure plate of the transom rod or the Screwing tongues with the drill holes must
face up. You can see it on the videos.
2. Then the upper Transom rod must be inserted from the front into the upper two little tubes.
A little bit water or a little bit dish soap makes them easier to slide into.
The transverse pressure plate of the transom rod or the Screwing tongues with the drill holes must
face down. You can see it on the videos.
3. Then the both catamaran tubes must be inflated to 220mbar. Maximum pressure is 250mbar. The
Halkey-Roberts valve must be set to inflate, meaning the valve mechanism must pop out a bit.
4. When the two tubes are inflated, the two bottom flaps must be placed around the lower transom
bar and closed.
5. Then the floor must be inserted, best position is in contact with the bow, and inflated to a minimum
of 600mbar. The maximum pressure is 689mbar. The Halkey-Roberts valve must be set to inflate,
meaning the valve mechanism must pop out a bit. When inflating, always press the ground slightly
